SERVICE SPECIFICATIONS: 1AR-FE COOLING: SERVICE DATA
SERVICE DATA

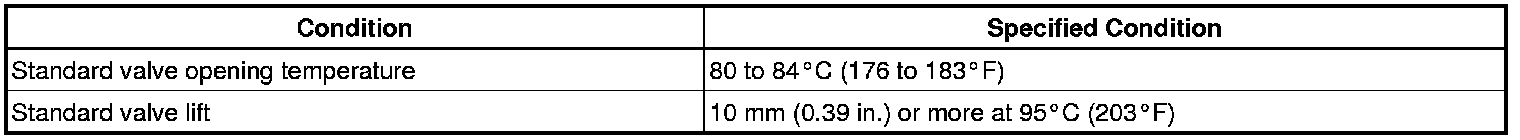

Thermostat

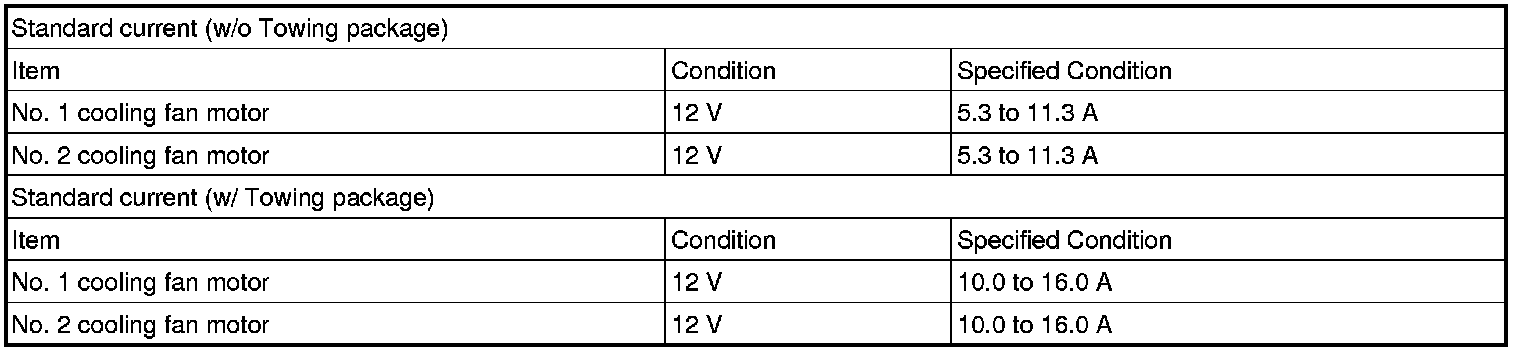

Cooling fan motor

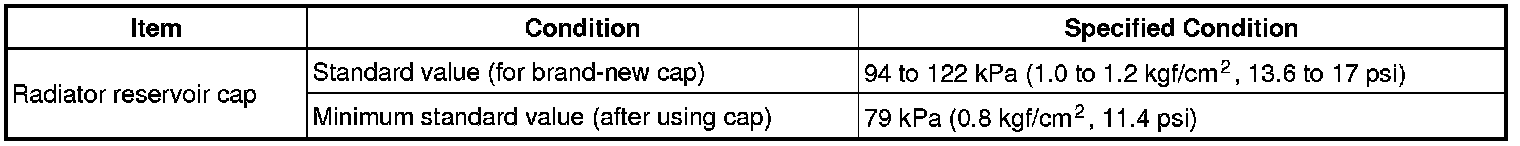

Radiator cap
