Yaw Rate And Deceleration Sensor: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE REAR CONSOLE BOX POCKET  (See REMOVAL )
  5. REMOVE CONSOLE BOX CARPET  (See REMOVAL )
  6. REMOVE REAR CONSOLE BOX ASSEMBLY  (See REMOVAL )
  7. REMOVE YAW RATE SENSOR
    1. Remove the 2 nuts (labeled A) and sensor.
    2. Disconnect the sensor connector (labeled B), and then detach the clamp (labeled C) from the sensor bracket.

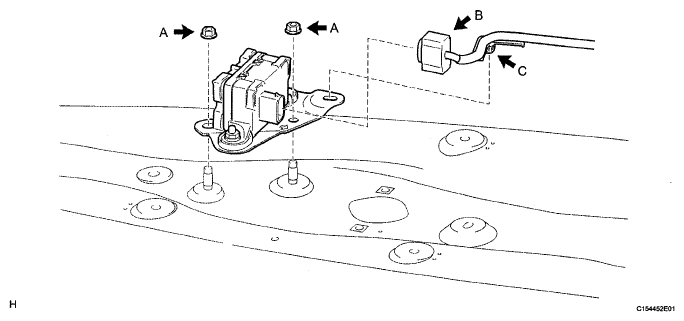

      Fig 1: Identifying Sensor Connector, Clamp And Sensor Bracket
      G05159869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
