Rear Power Window Switch

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH:

INSPECTION

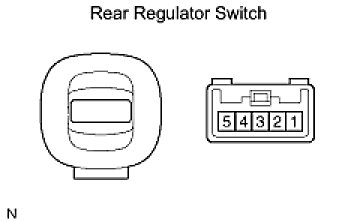

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear Side)





(a) Measure the resistance of the rear regulator switch.

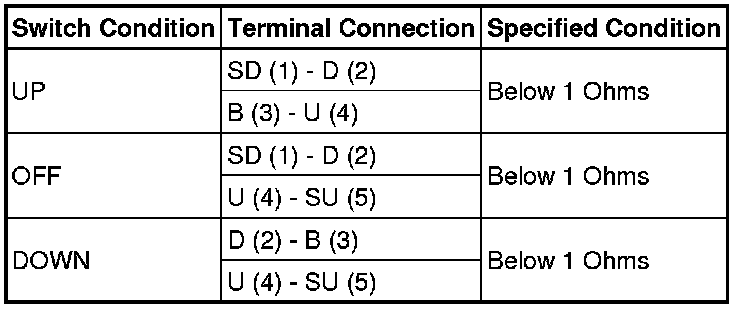

Standard resistance:





If the result is not as specified, replace the regulator switch.
