Ignition Switch: Testing and Inspection

1ZZ-FE STARTING: IGNITION SWITCH:

INSPECTION

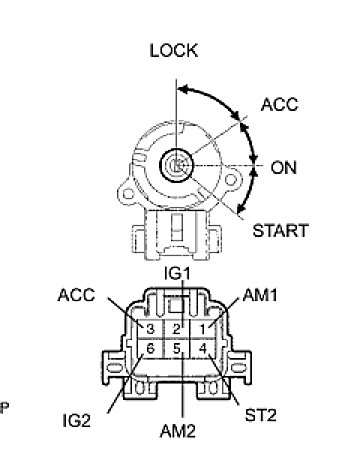

1. INSPECT IGNITION OR STARTER SWITCH ASSEMBLY





(a) Measure the ignition starter switch resistance.

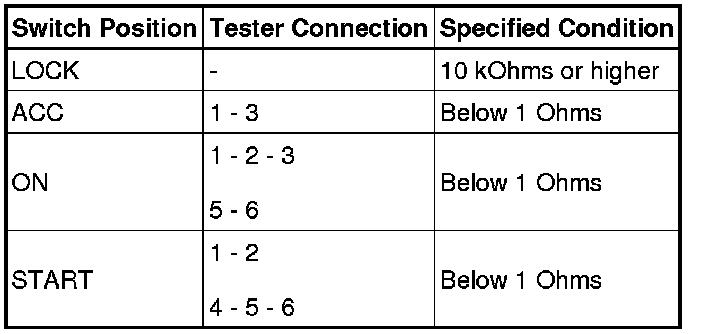

Resistance:





If the result is not as specified, replace the ignition starter switch.
