Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

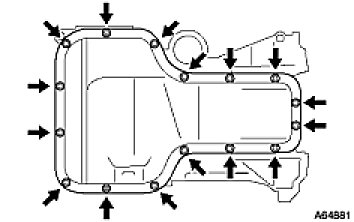

Install the oil pan with the 14 bolts and 2 nuts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

- Tighten the bolts and nuts to the specified torque in two passes.
- Tighten the bolts and nuts within 15 minutes of applying sealant (if possible within 3 minutes).
