Main Relay (Computer/Fuel System): Locations

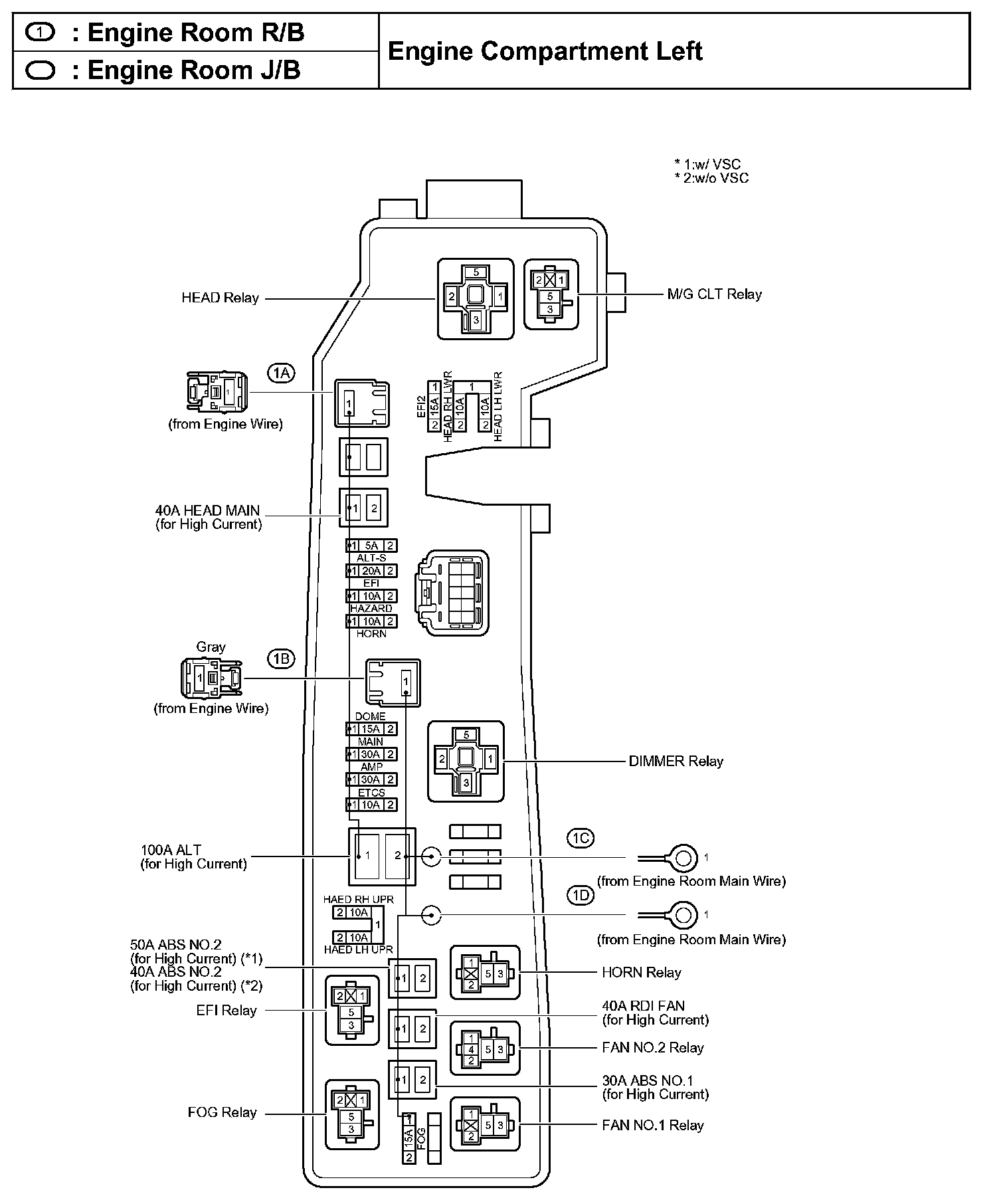

Engine Room R/B And Engine Room J/B - Engine Compartment Left:

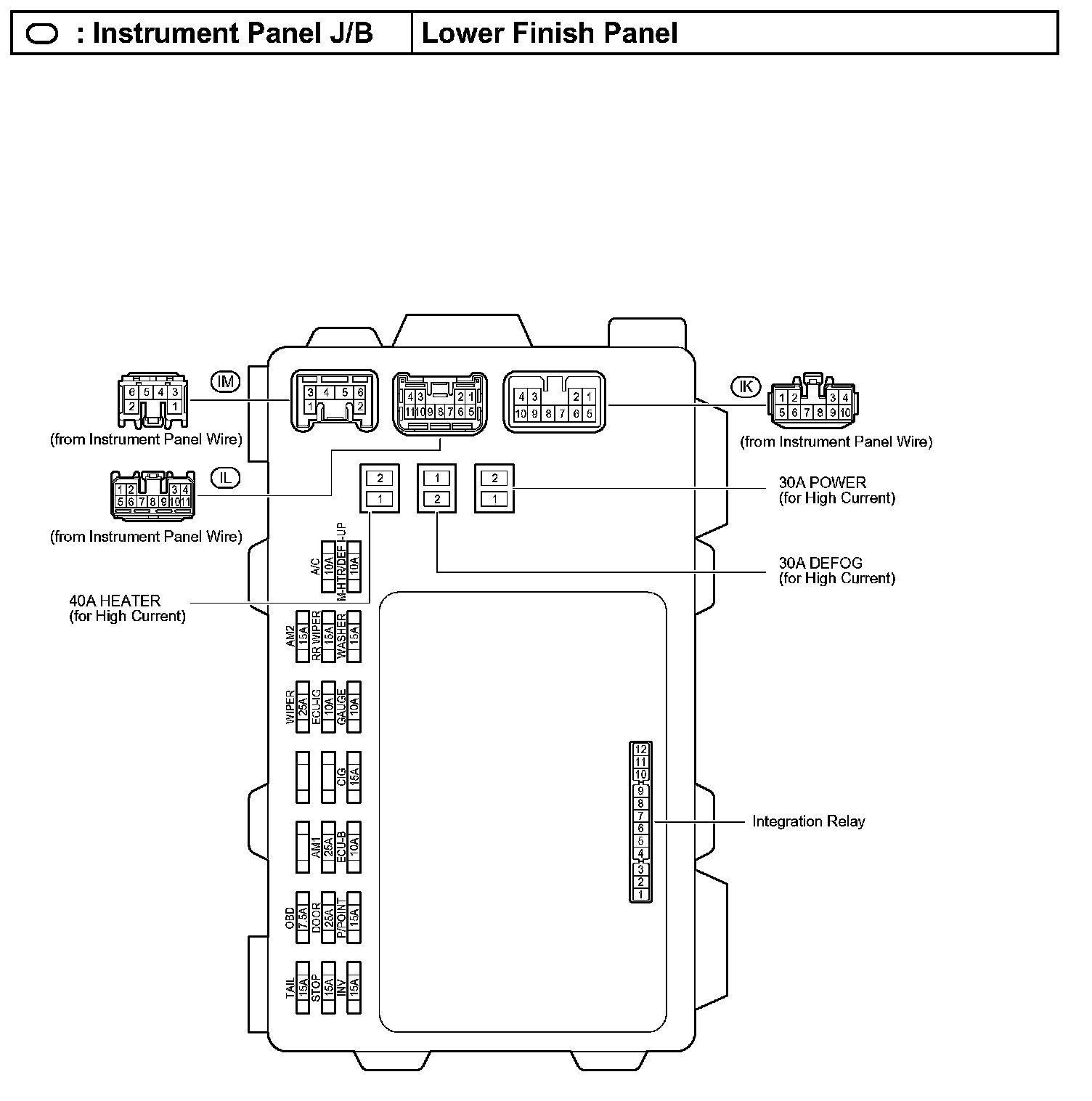

Instrument Panel J/B - Lower Finish Panel:
