Power Distribution Relay: Locations

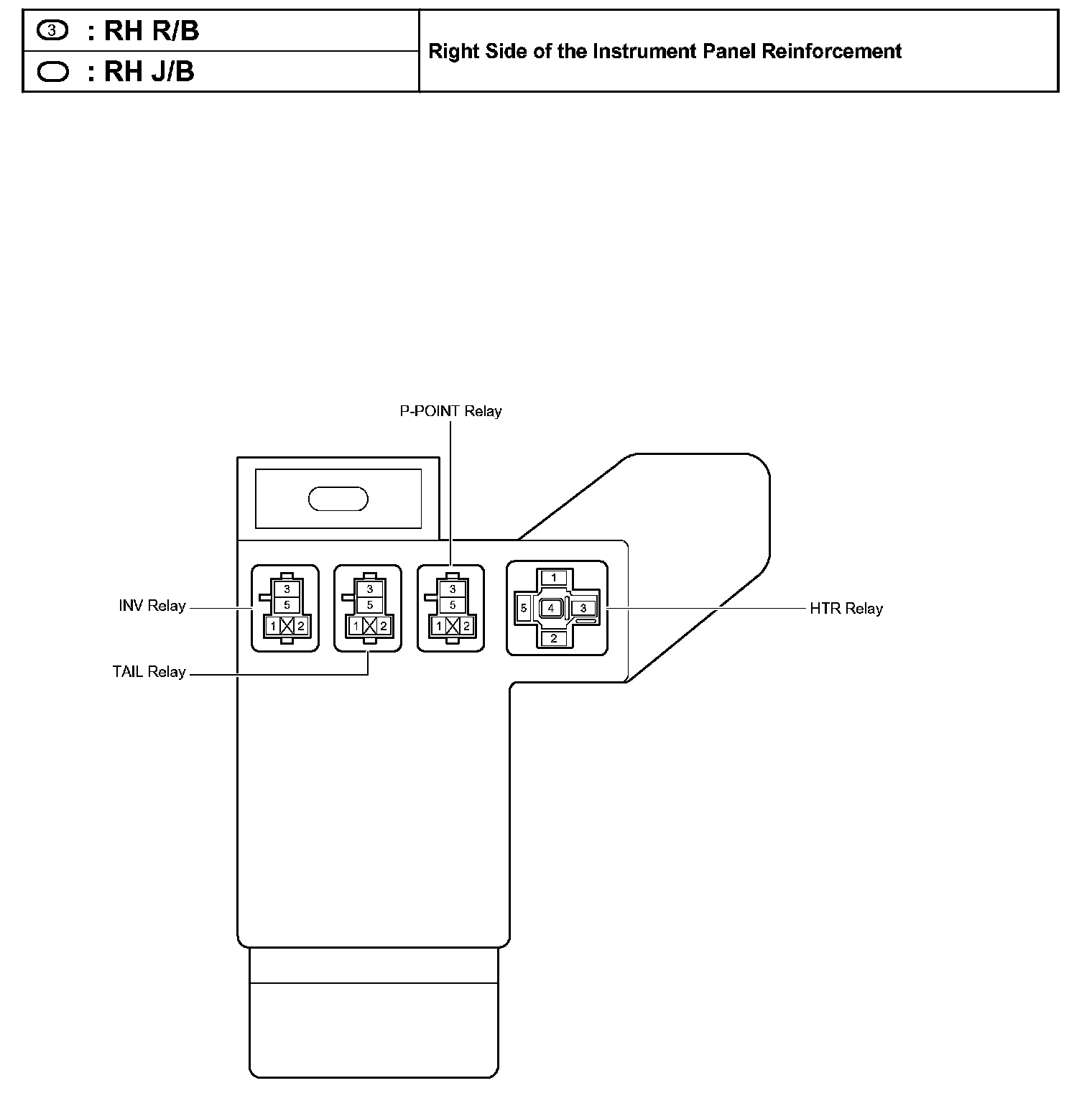

RH R/B And J/B Right Side Of The Instrument Panel Reinforcement:
