Connector Locations

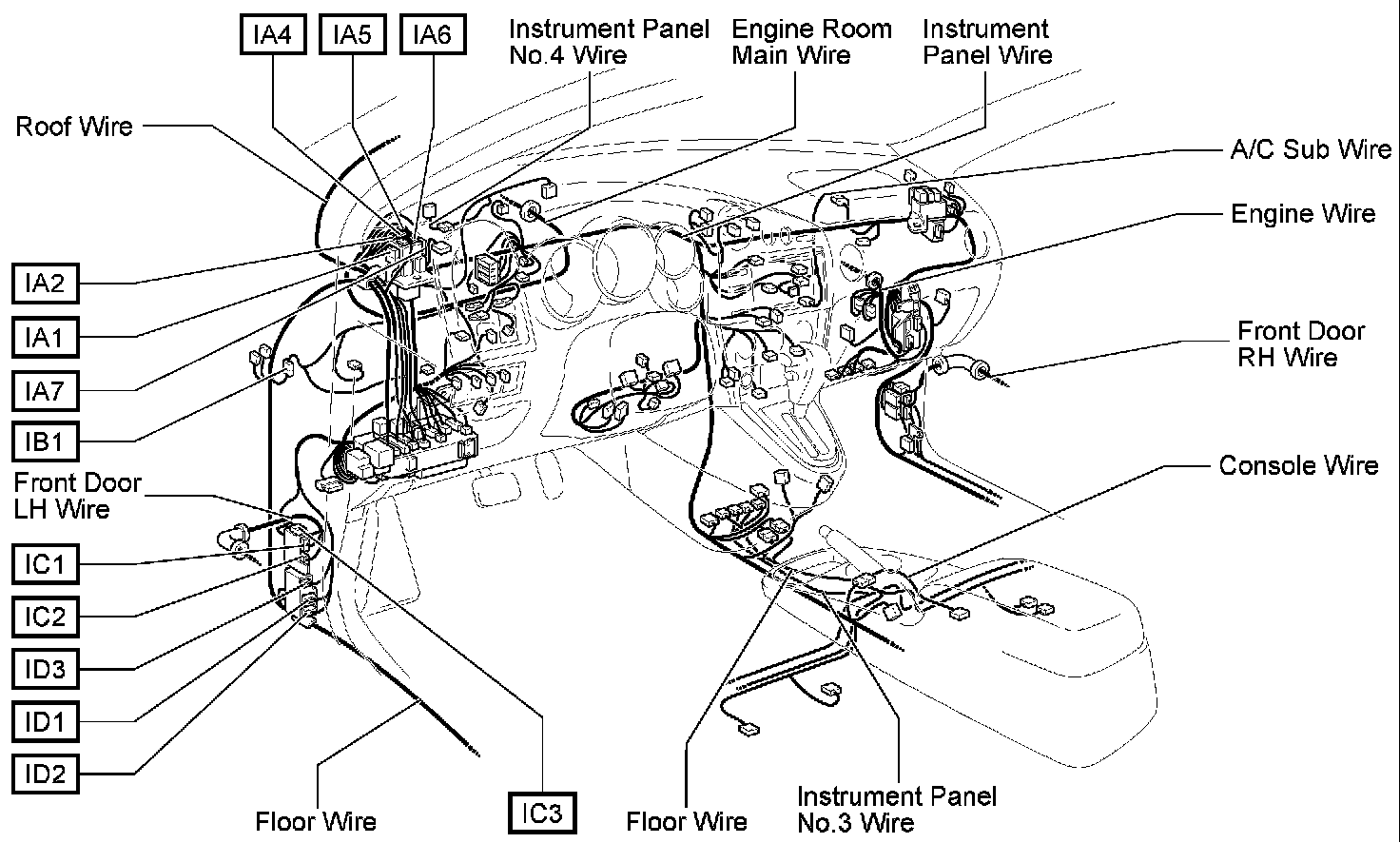

IA1 - Id3:

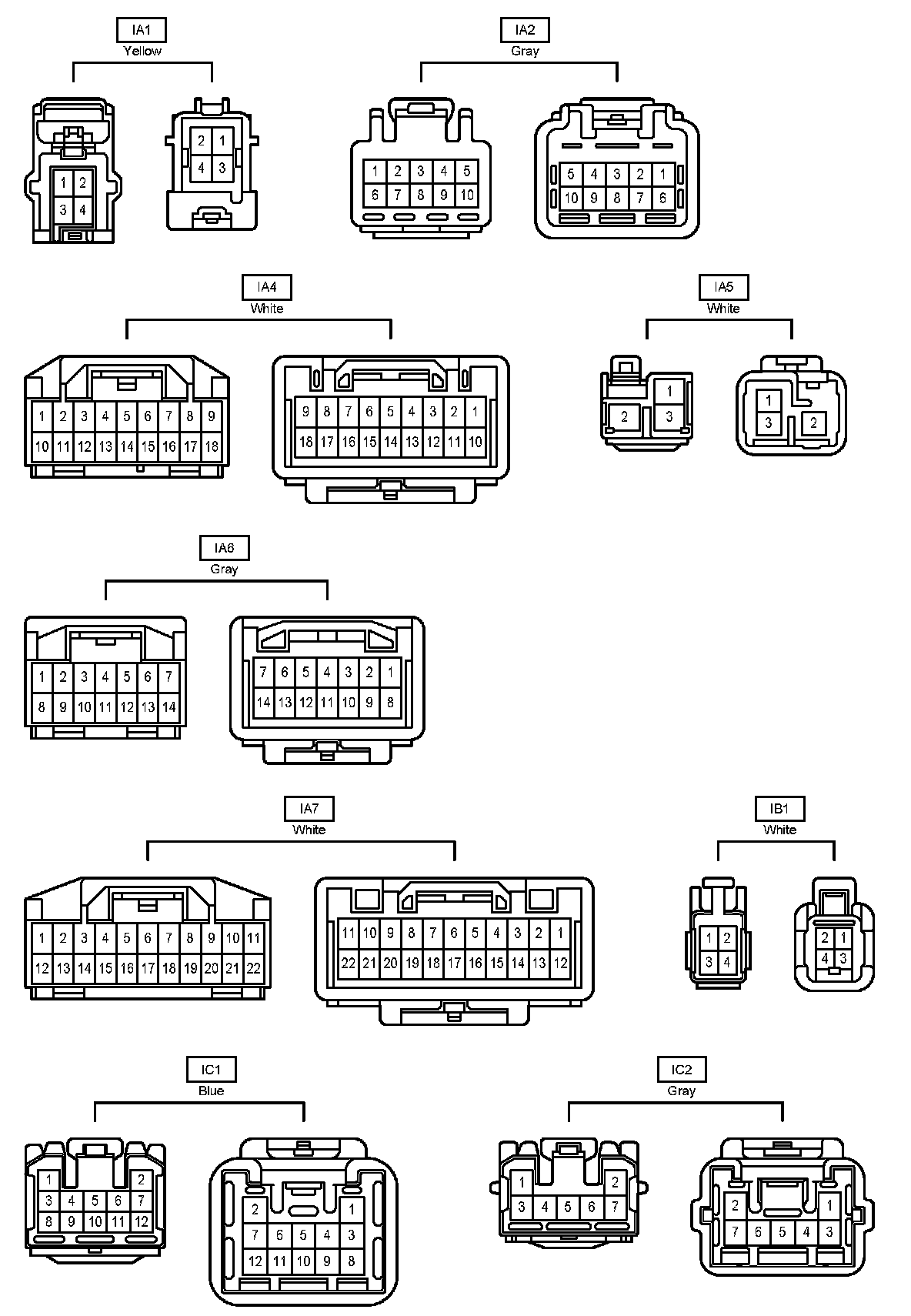

Connector Views:

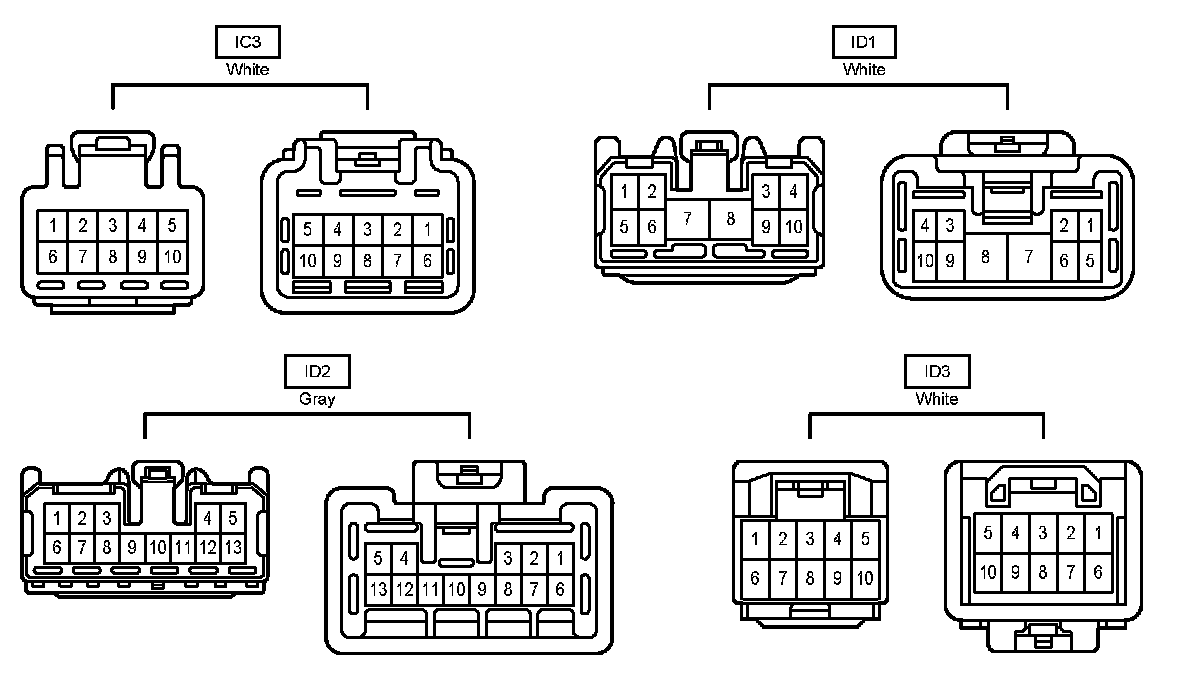

Connector Views:

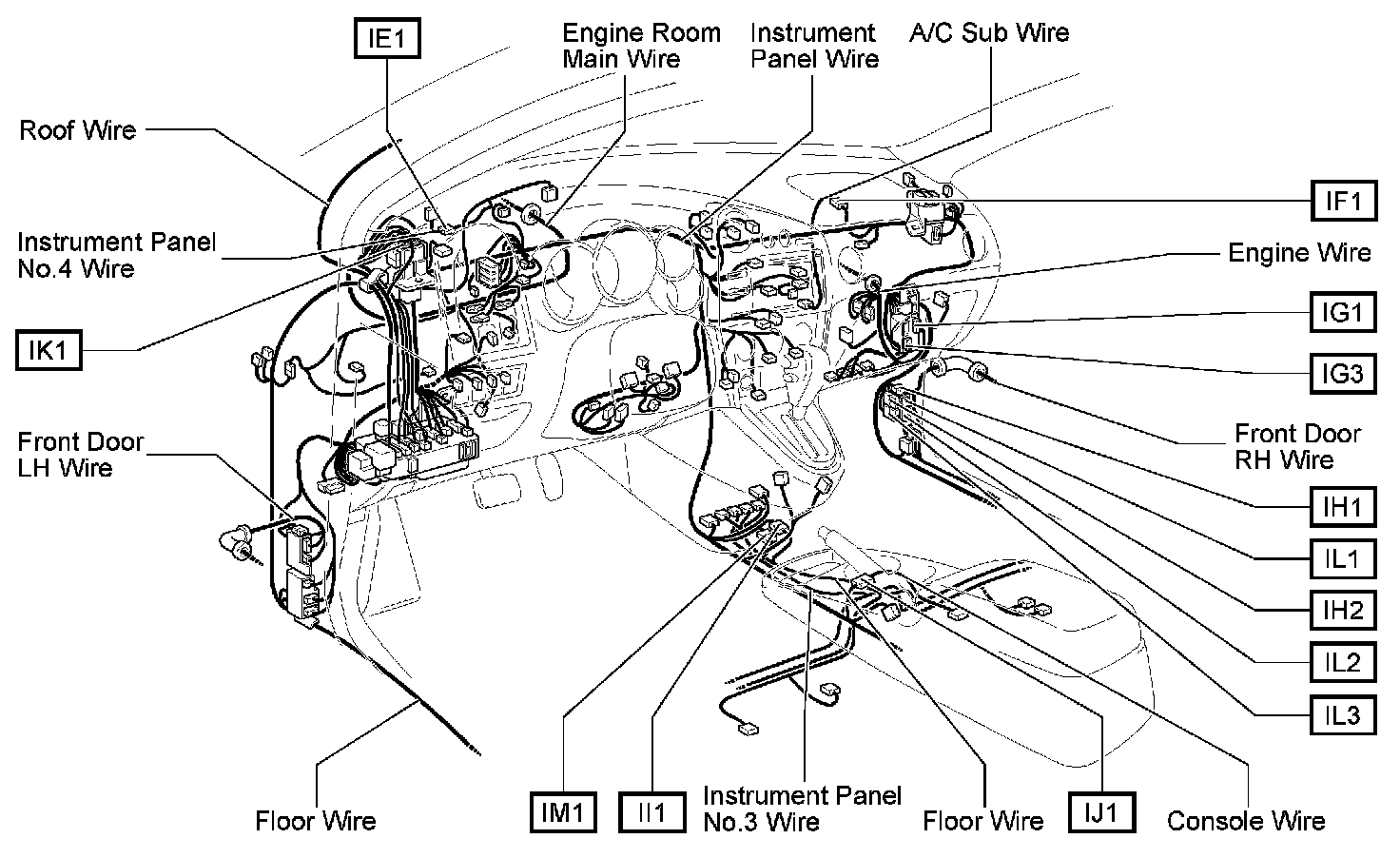

IE1 - IM1:



Connector Views:



Connector Views:
