Light Reminder and Key Reminder System: Notes

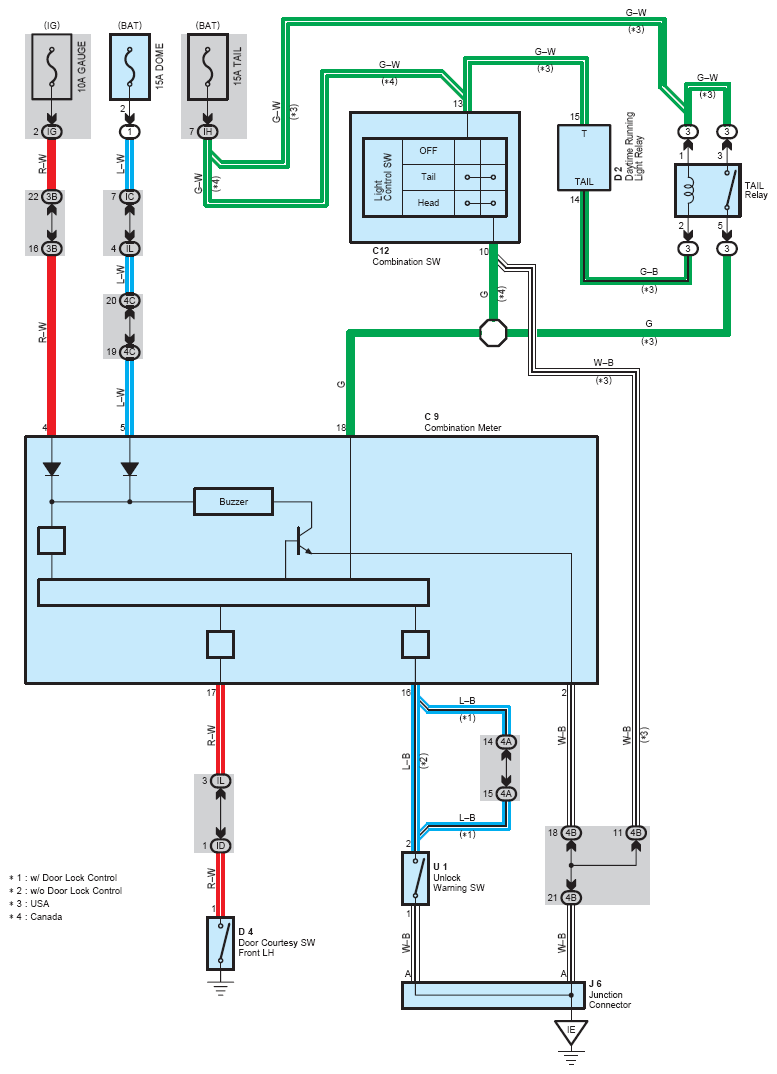

Fig 1: Light Reminder And Key Reminder - Circuit Diagram

G07604118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
