Component Torque & Sequence

Transmission Pan

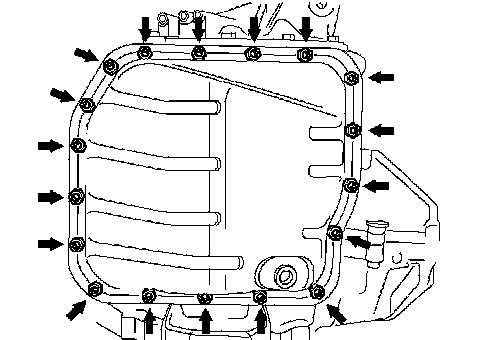

Using a new gasket, install the oil pan with the 18 bolts to the transaxle case.
Torque 7.8 Nm (80 kgf-cm, 69 inch lbs.)

NOTICE: Since the bolts should be seal bolts, apply seal packing to the bolts and tighten them within 10 minutes of application.
