Variable Valve Timing Actuator Position Sensor: Testing and Inspection
INSPECTION1. INSPECT VVT SENSOR

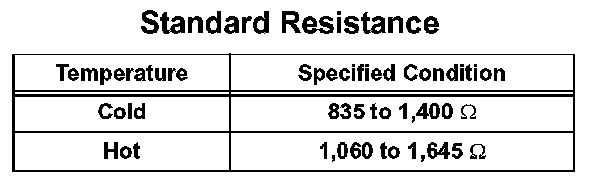

a. Measure the resistance between the terminals.
If the result is not as specified, replace the sensor.
1. INSPECT VVT SENSOR
a. Measure the resistance between the terminals.
If the result is not as specified, replace the sensor.
