Transmission Position Sensor/Switch: Adjustments

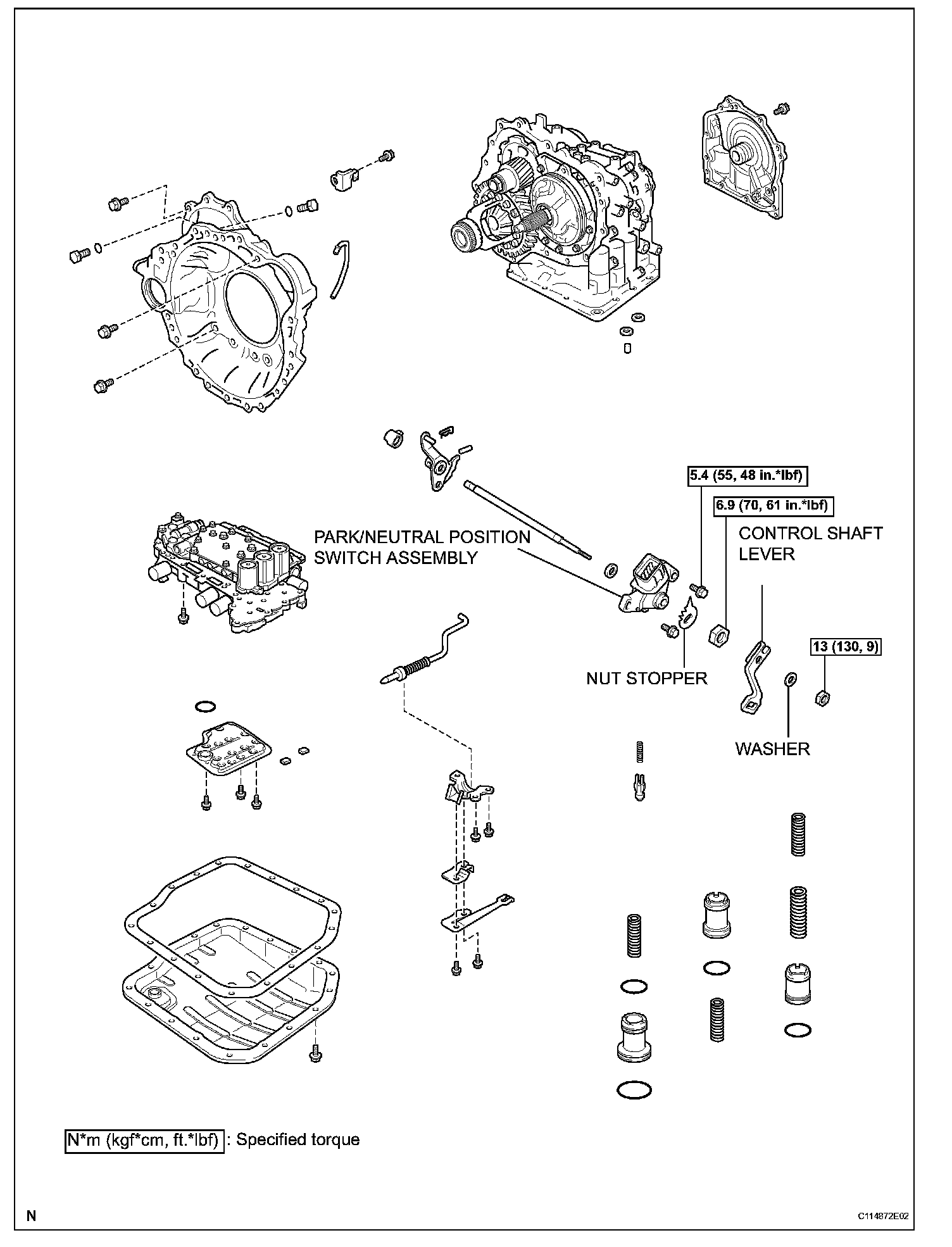

COMPONENTS (Part 3):

ADJUSTMENT





1. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Loosen the 2 bolts of the park/neutral position switch and move the shift lever to the N position.

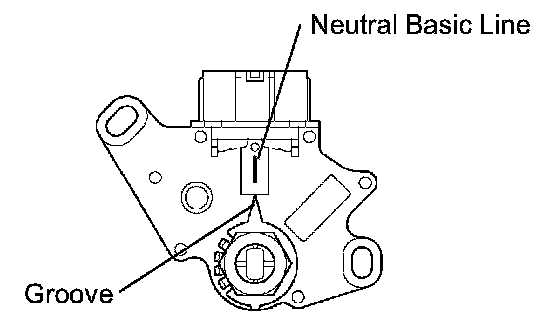

(b) Align the groove with the neutral basic line.
(c) Hold the switch in position and tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
(d) After adjustment, perform the inspection.
