Accelerator Pedal Position Sensor: Testing and Inspection
INSPECTION1. INSPECT ACCELERATOR PEDAL ASSEMBLY

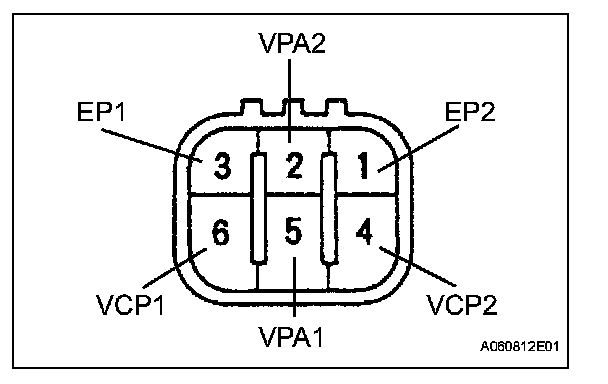

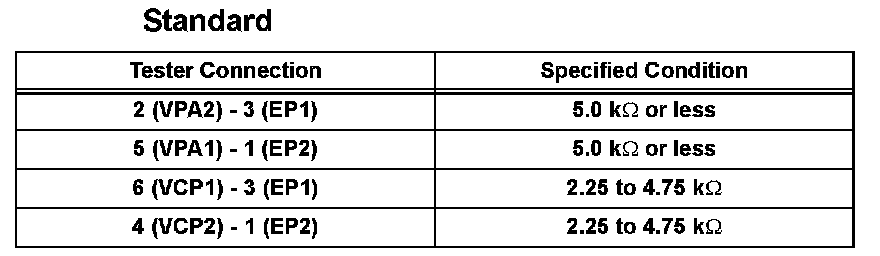

a. Measure the resistance between the terminals.
If the result is not as specified, replace the pedal assy.
1. INSPECT ACCELERATOR PEDAL ASSEMBLY
a. Measure the resistance between the terminals.
If the result is not as specified, replace the pedal assy.
