Home >> Toyota >> 2007 >> Solara Convertible V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seats

Seats

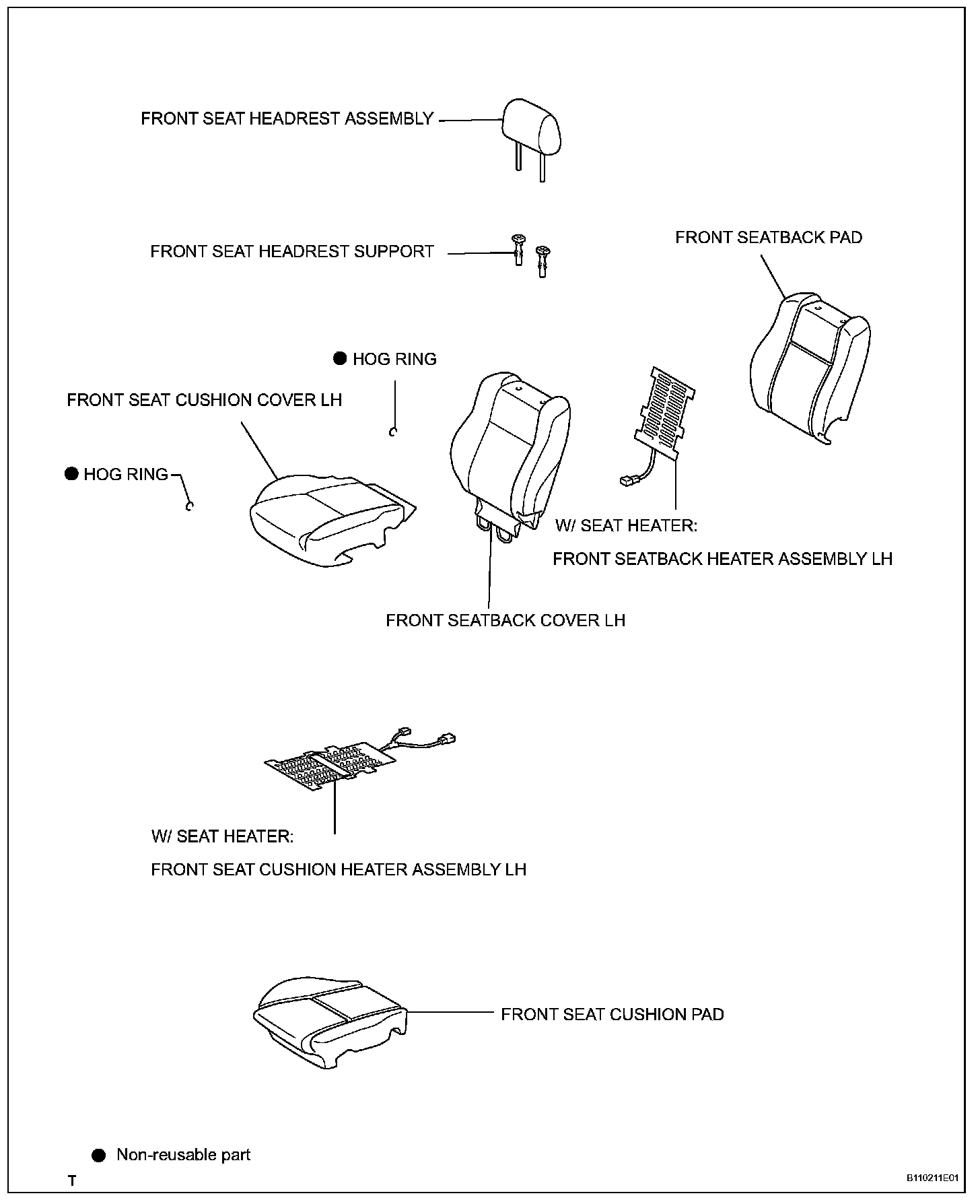

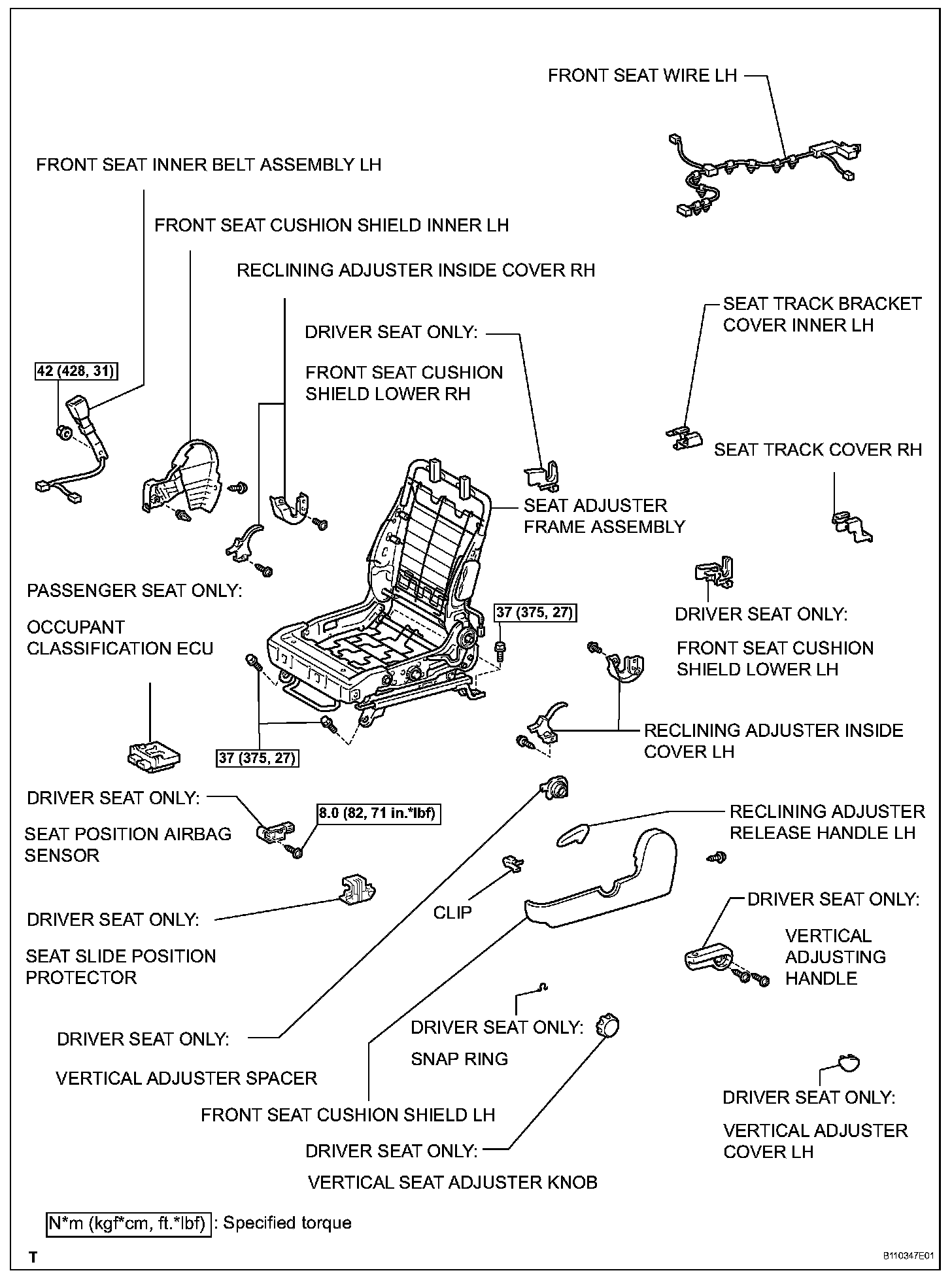

Front Seat Assembly (for Manual Seat):



Front Seat Assembly (for Manual Seat):

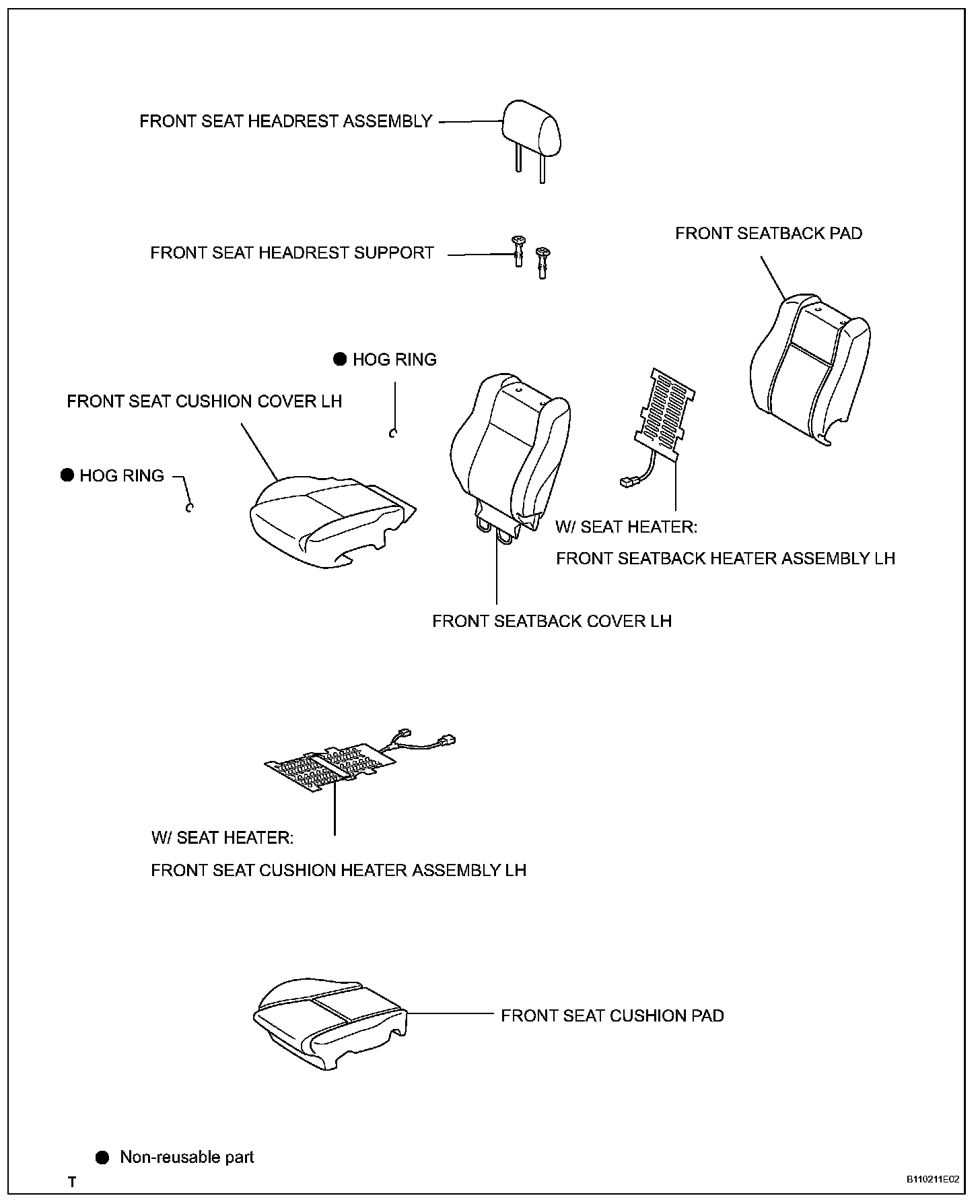

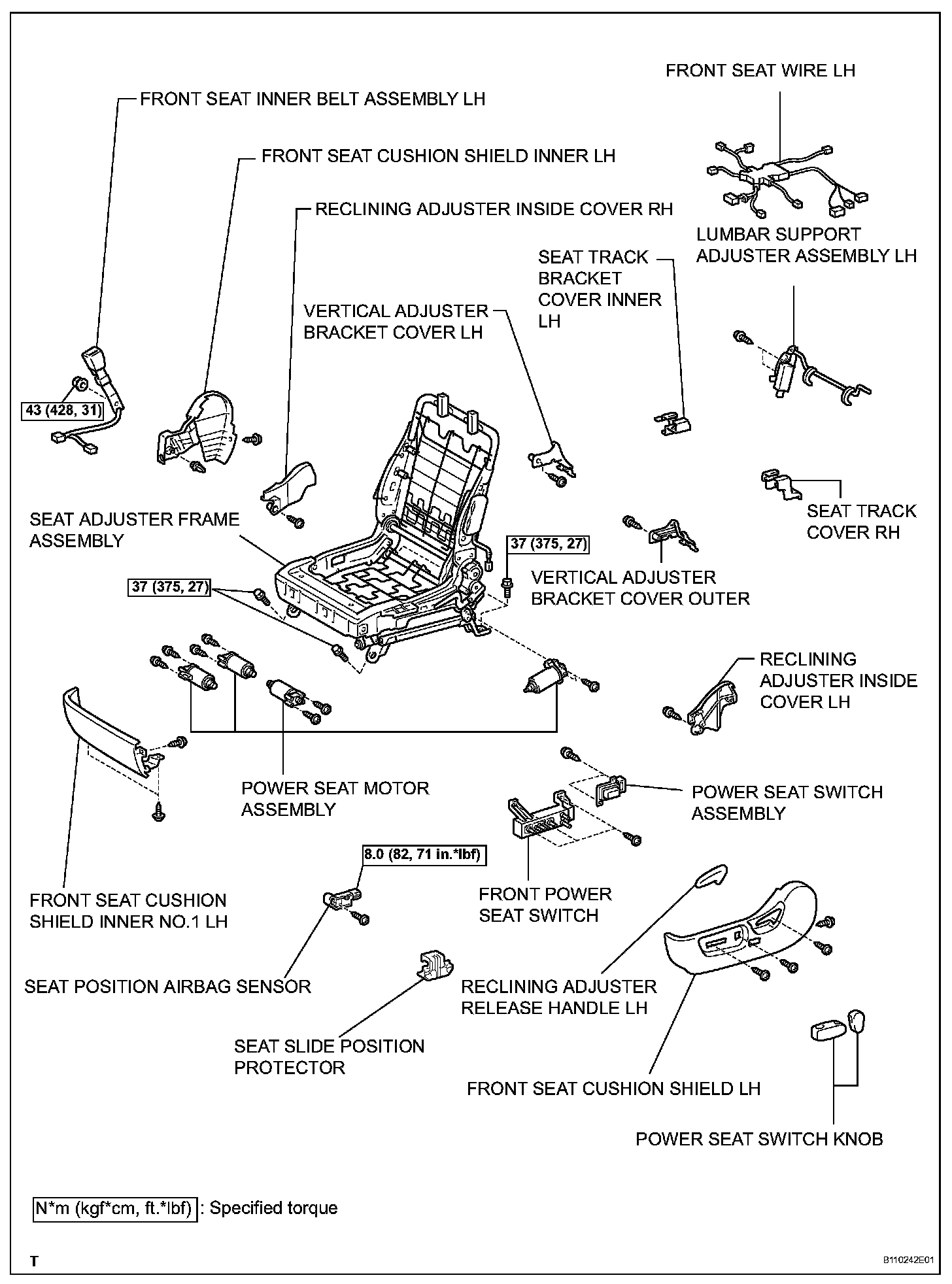

Front Seat Assembly (for Power Seat):



Front Seat Assembly (for Power Seat):

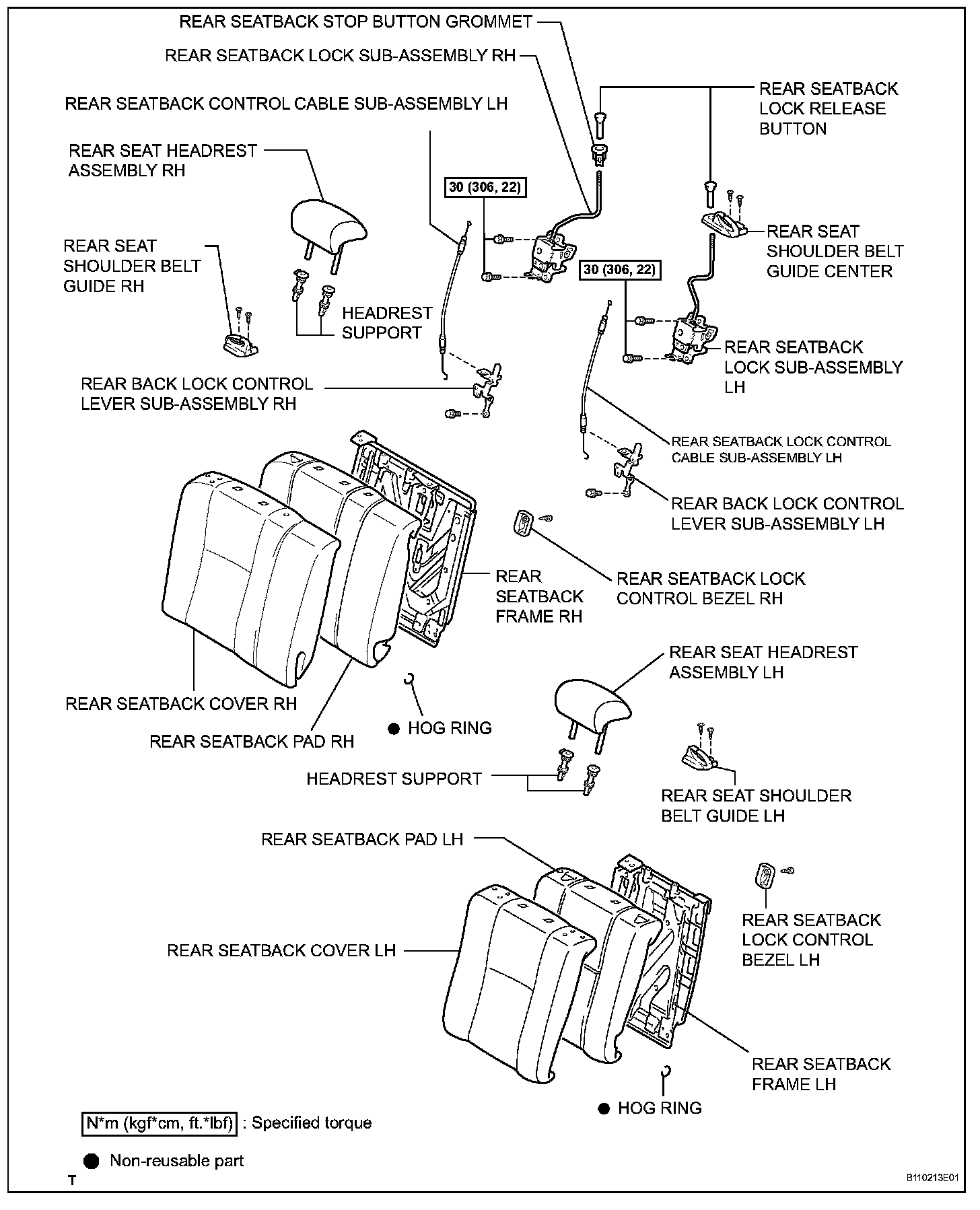

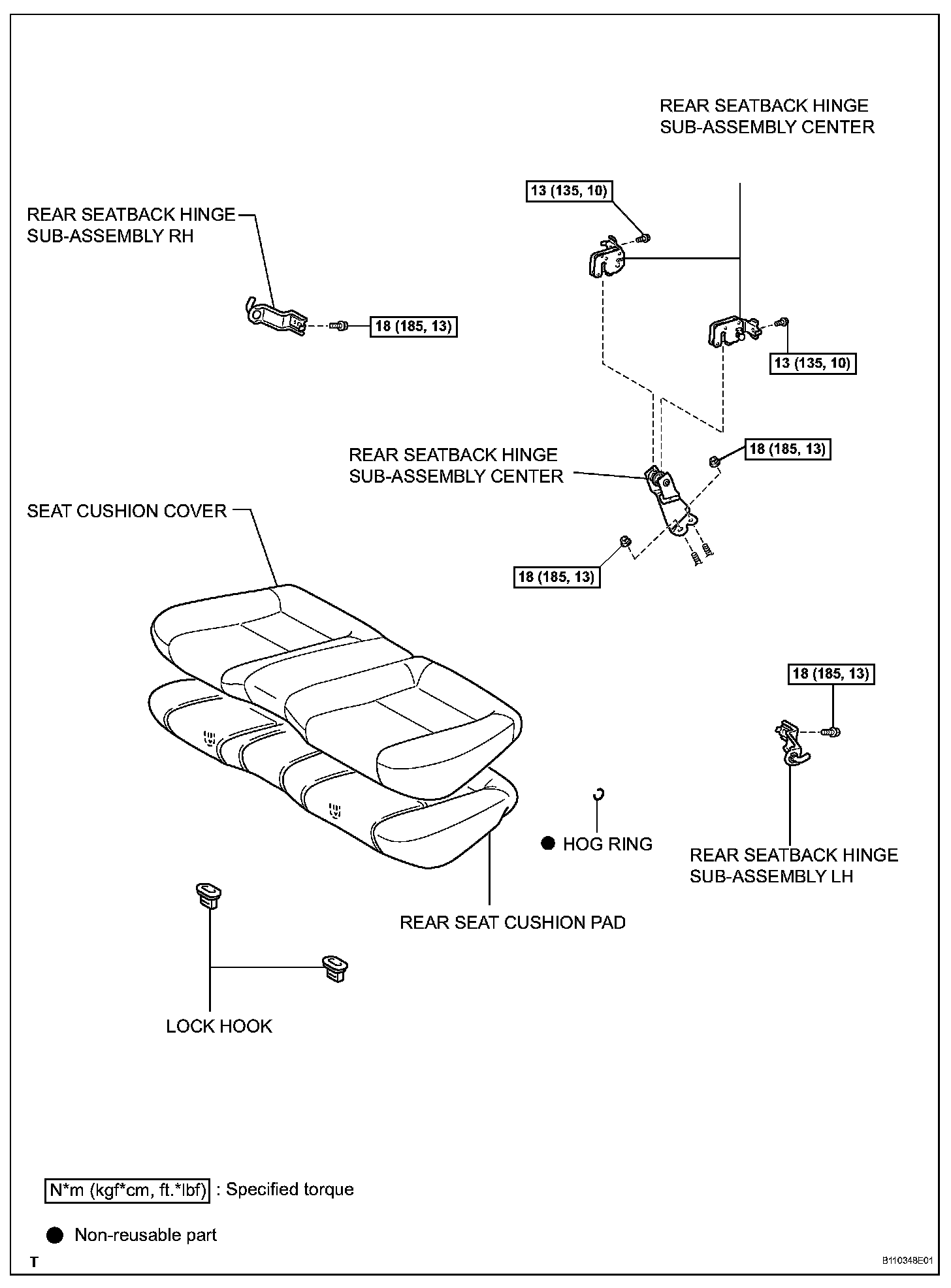

Rear Seat Assembly (Coupe):



Rear Seat Assembly (Coupe):

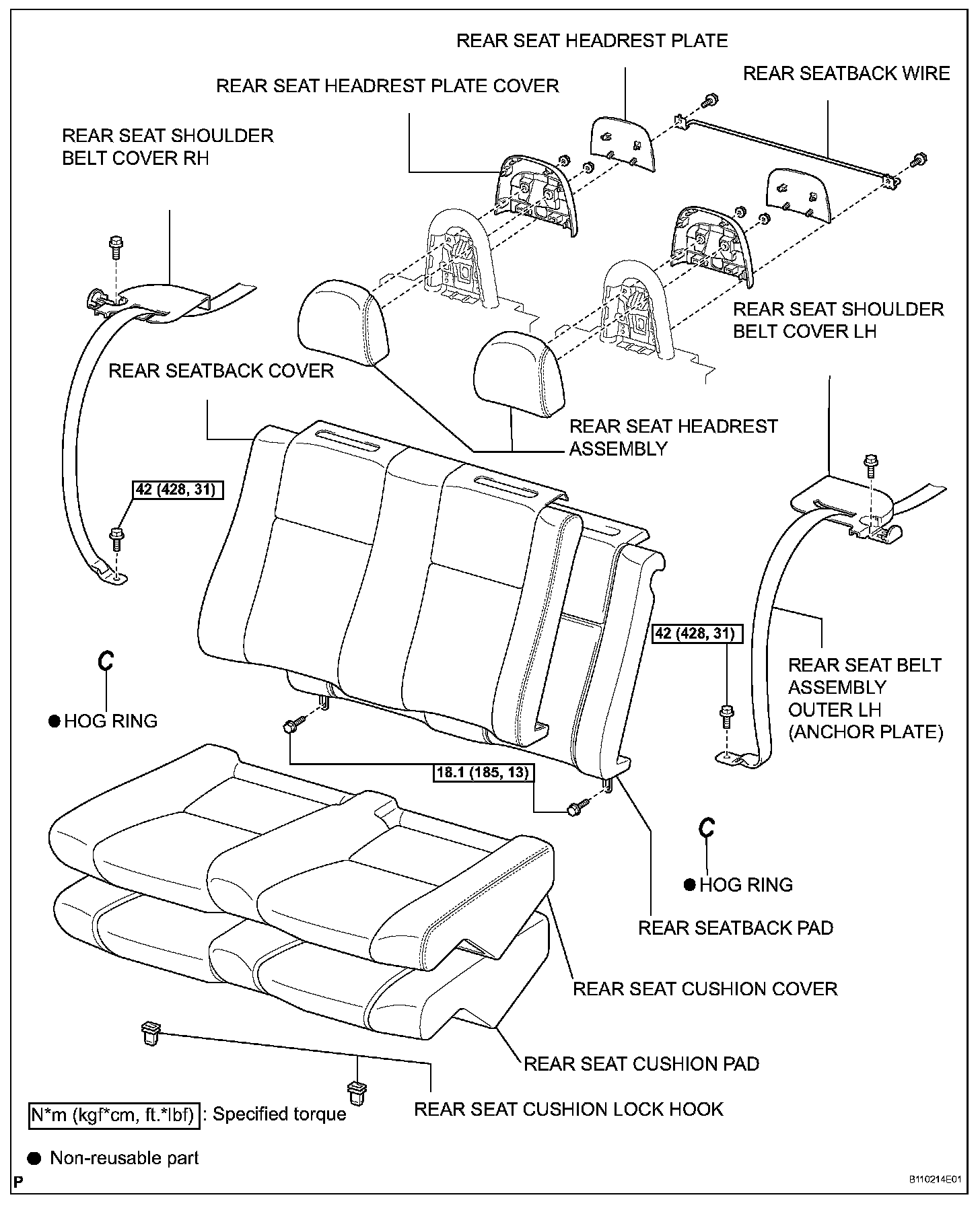

Rear Seat Assembly (Convertible):
