Keyless Entry Receiver: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT DOOR CONTROL RECEIVER

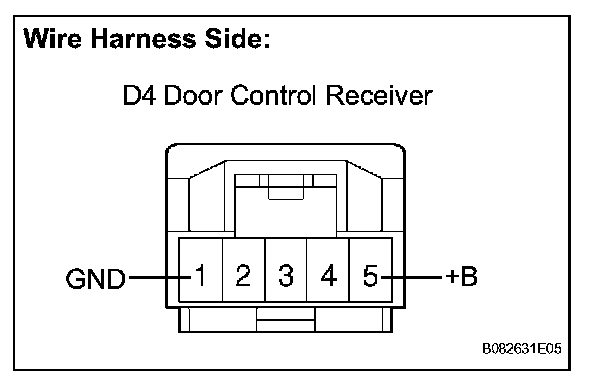

a. Disconnect the D4 receiver connector.

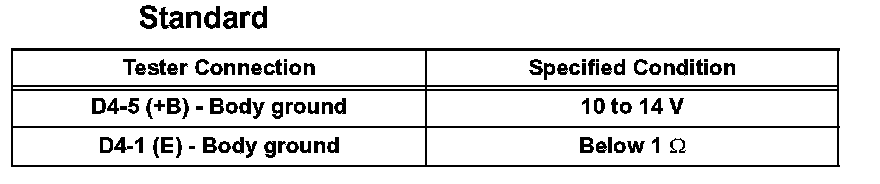

b. Measure the voltage and resistance of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.

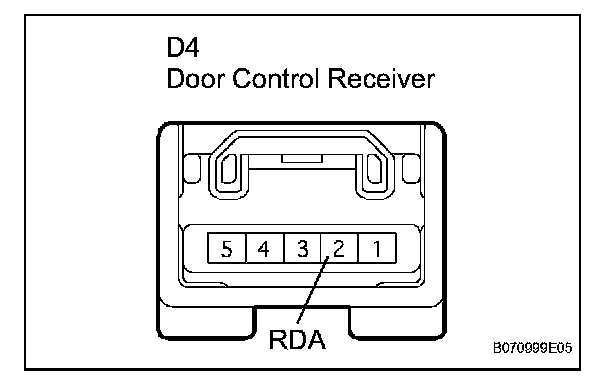

c. Reconnect the D4 receiver connector.

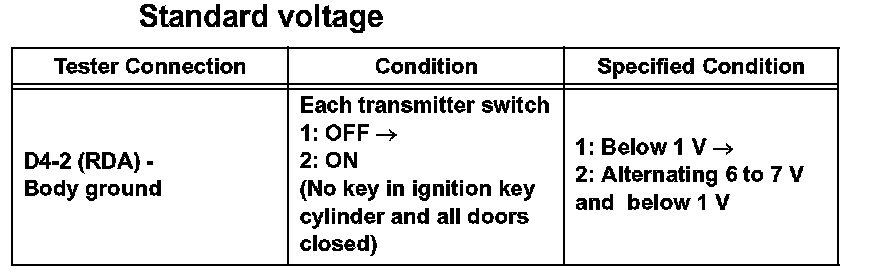

d. Measure the voltage of the connector.

If the result is not as specified, there may be a malfunction on the receiver.
