Crankshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CRANKSHAFT POSITION SENSOR

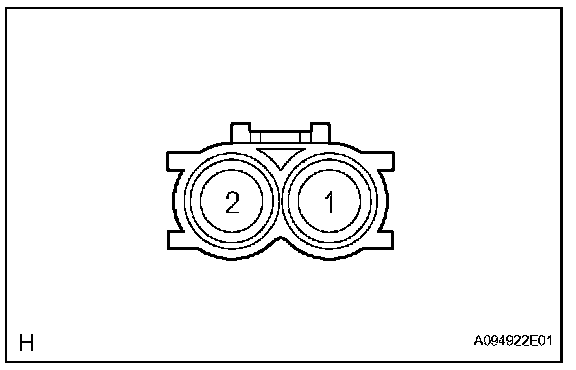

Measure the resistance of the sensor.

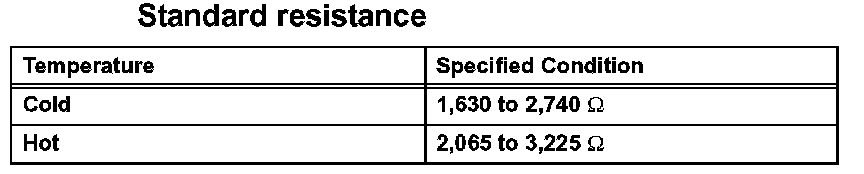

NOTE: In the table given, the terms "Cold" and "Hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50 °C (14 to 122 °F). "Hot" means approximately 50 to 100 °C (122 to 212 °F).

If the resistance is not as specified, replace the sensor.
