Battery Current Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

1. INSPECT BATTERY CURRENT SENSOR ASSEMBLY

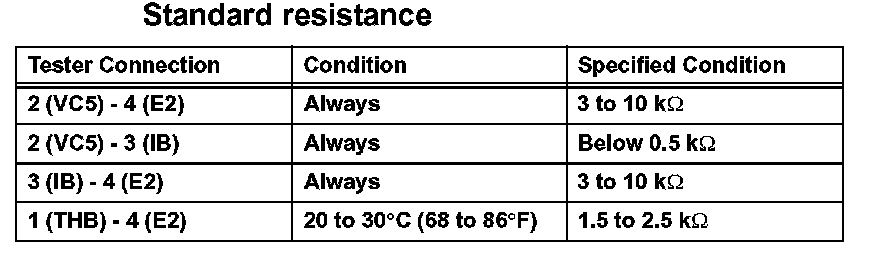

a. Measure the resistance of the sensor.

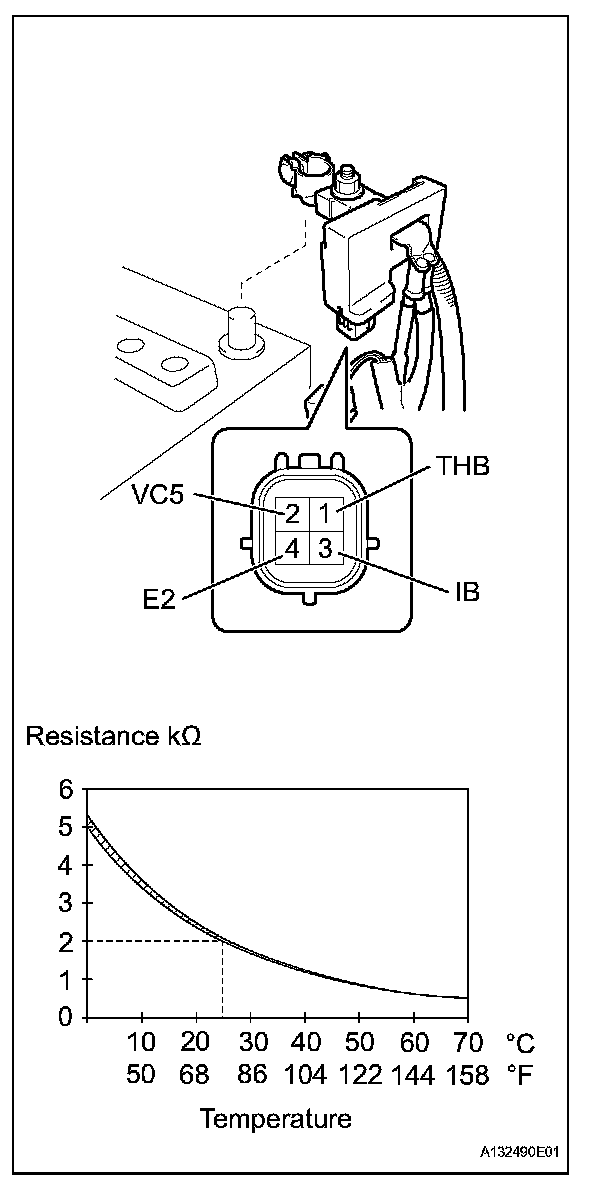

HINT: Tester connection 1 (THB)-4 (E2):

As the temperature increases, the resistance decreases (see graph).

If the result is not as specified, replace the sensor assembly.
