Crankshaft Position Sensor
Crankshaft Position Sensor

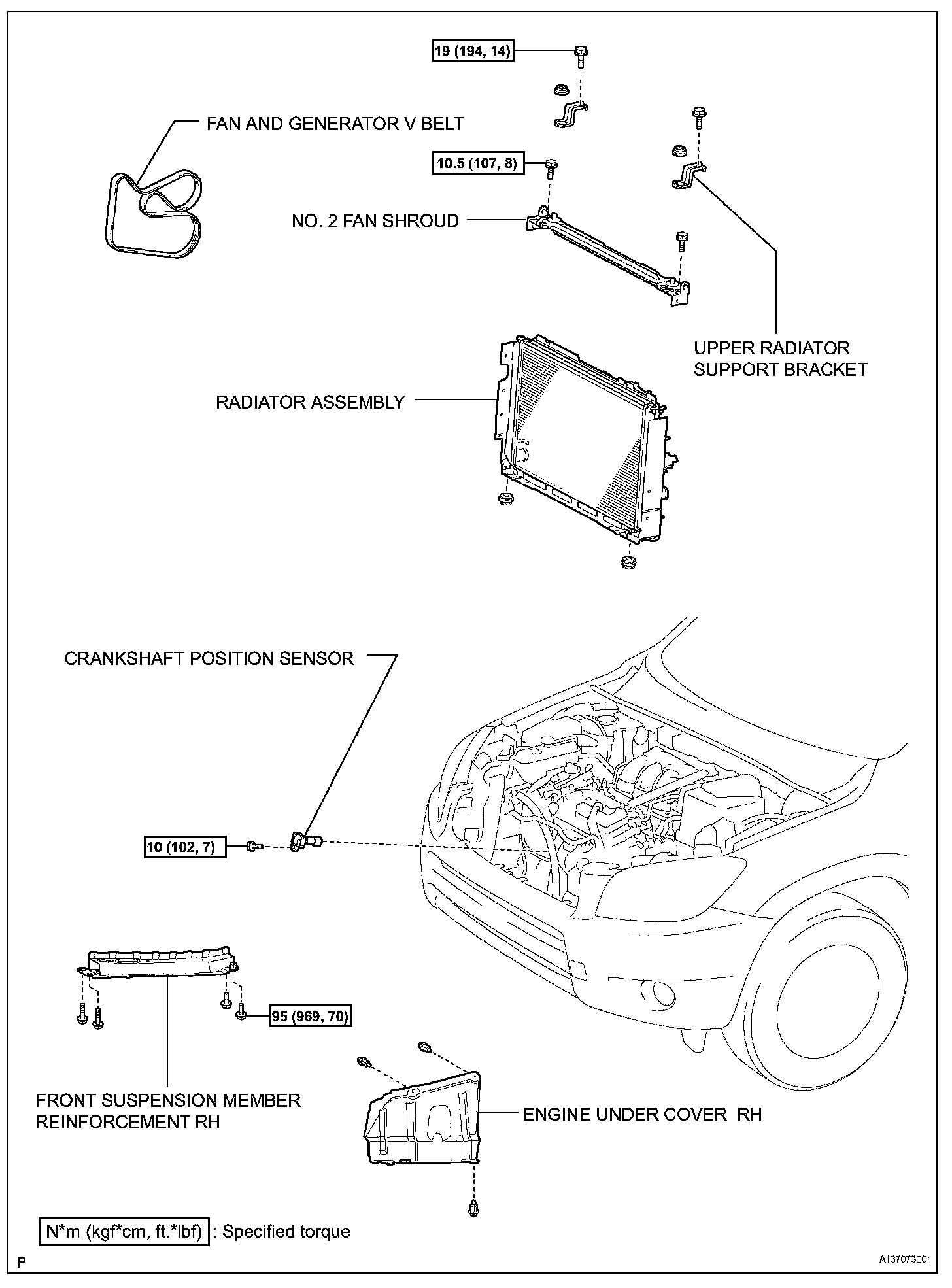

Crankshaft Position Sensor:
Crankshaft Position Sensor:
Crankshaft Position Sensor:
