Home >> Toyota >> 2007 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Service Data

Service Data

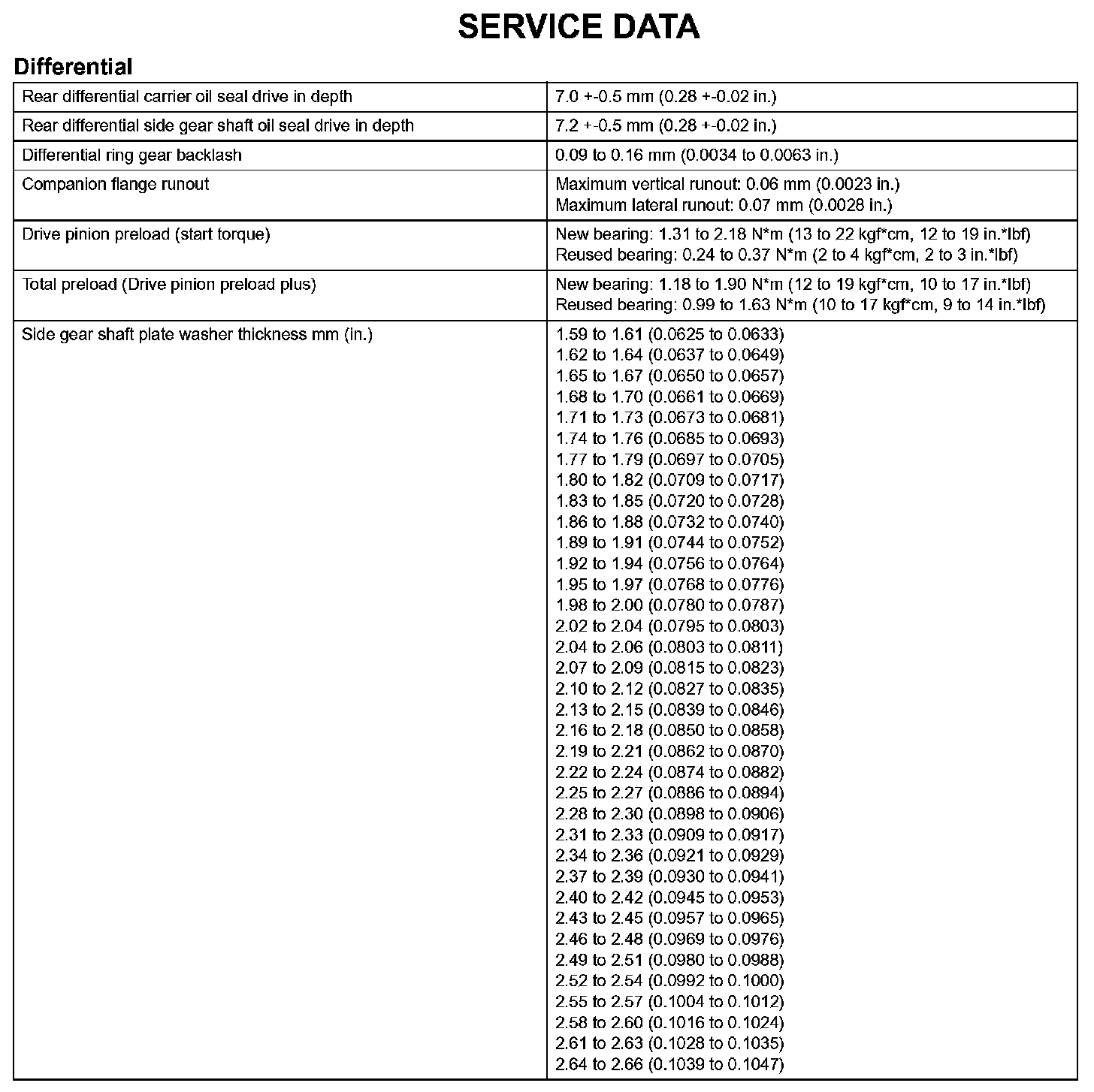

Differential - Service Data (Part 1):

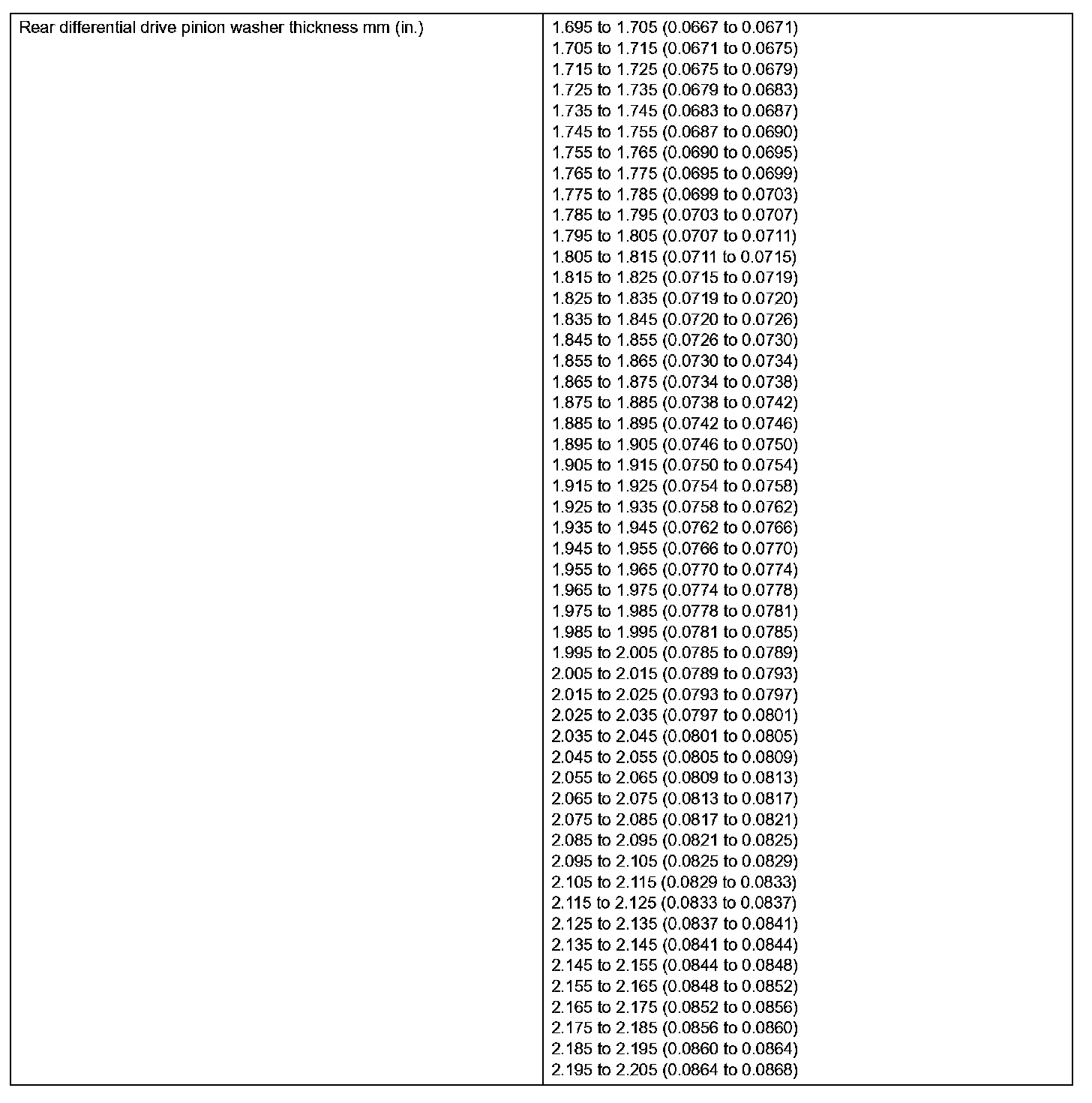

Differential - Service Data (Part 2):

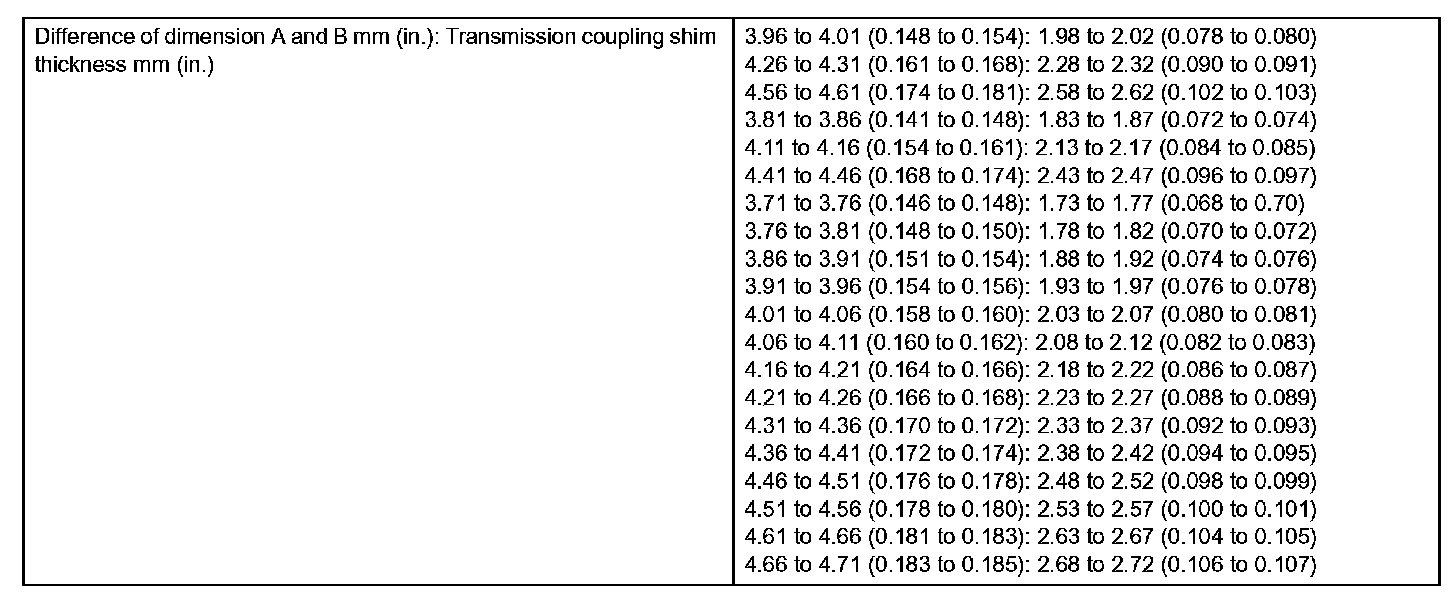

Differential - Service Data (Part 3):
