Service Data

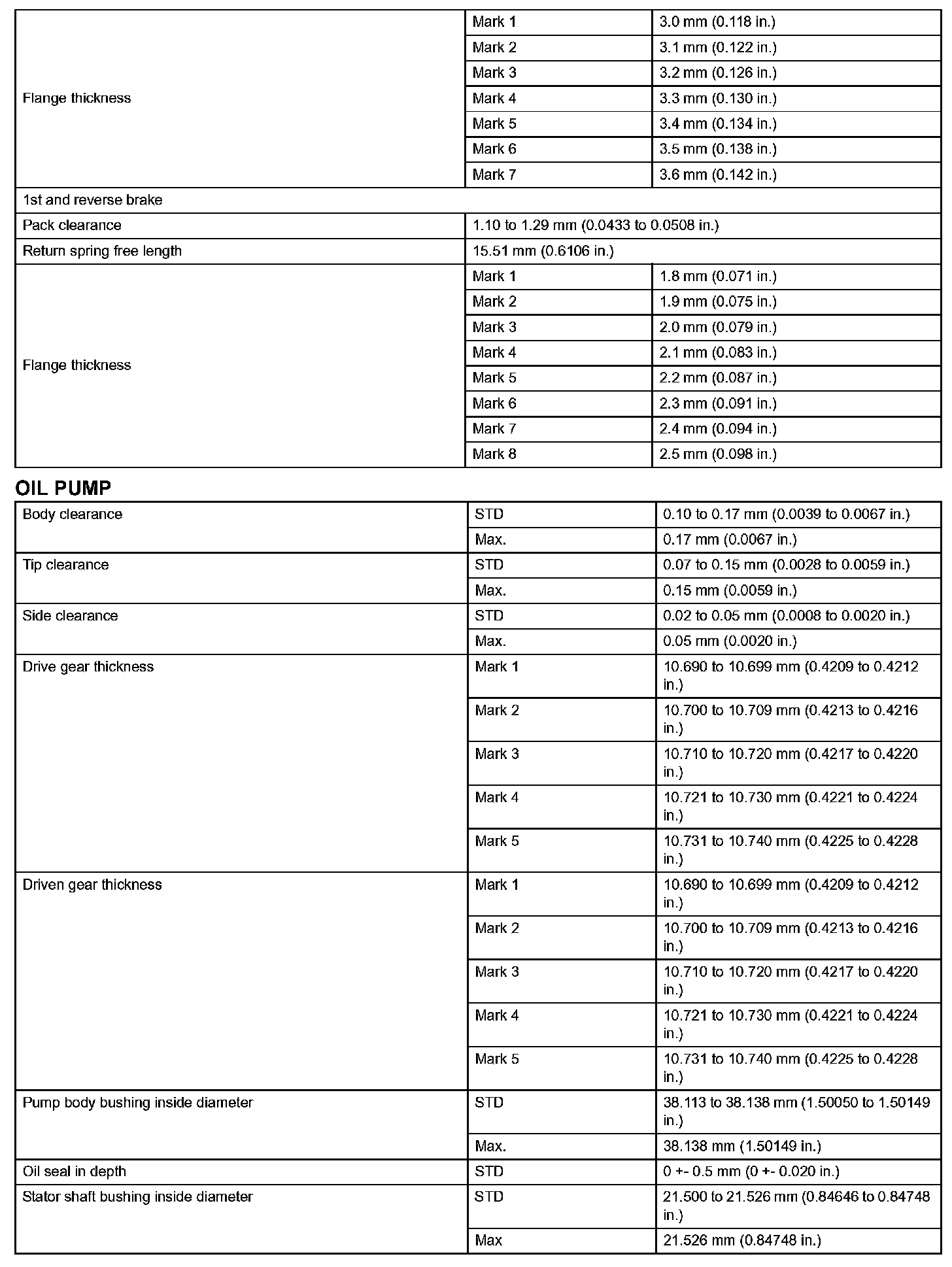

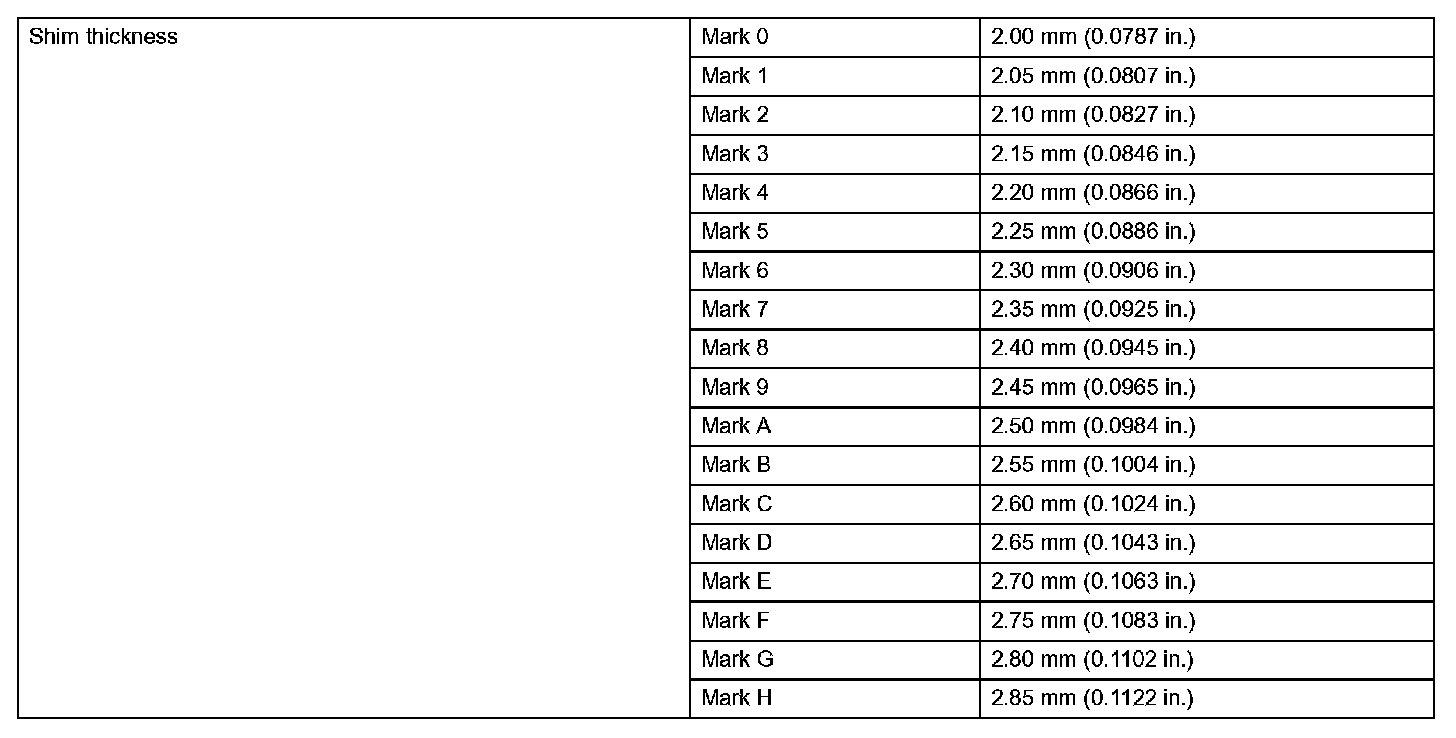

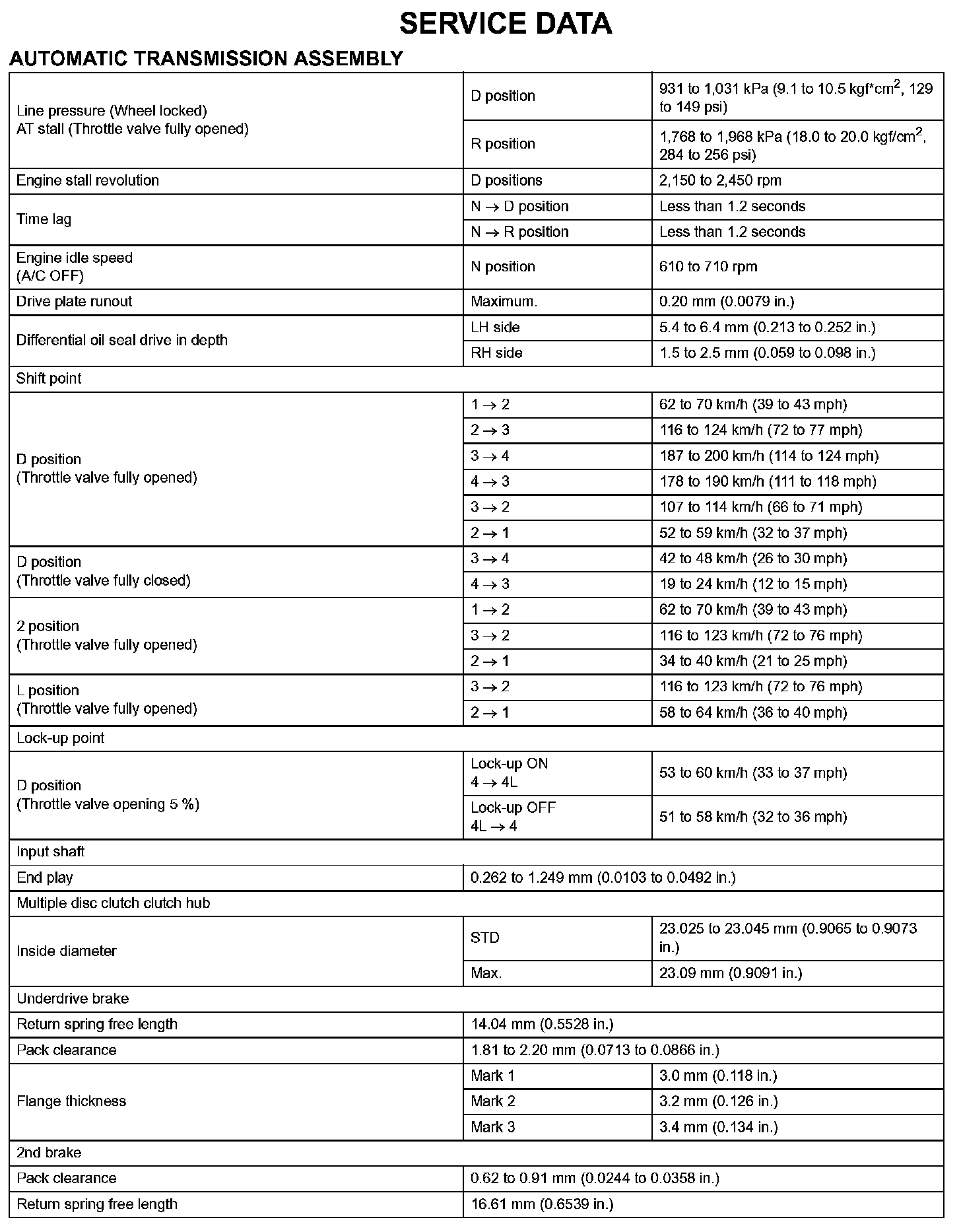

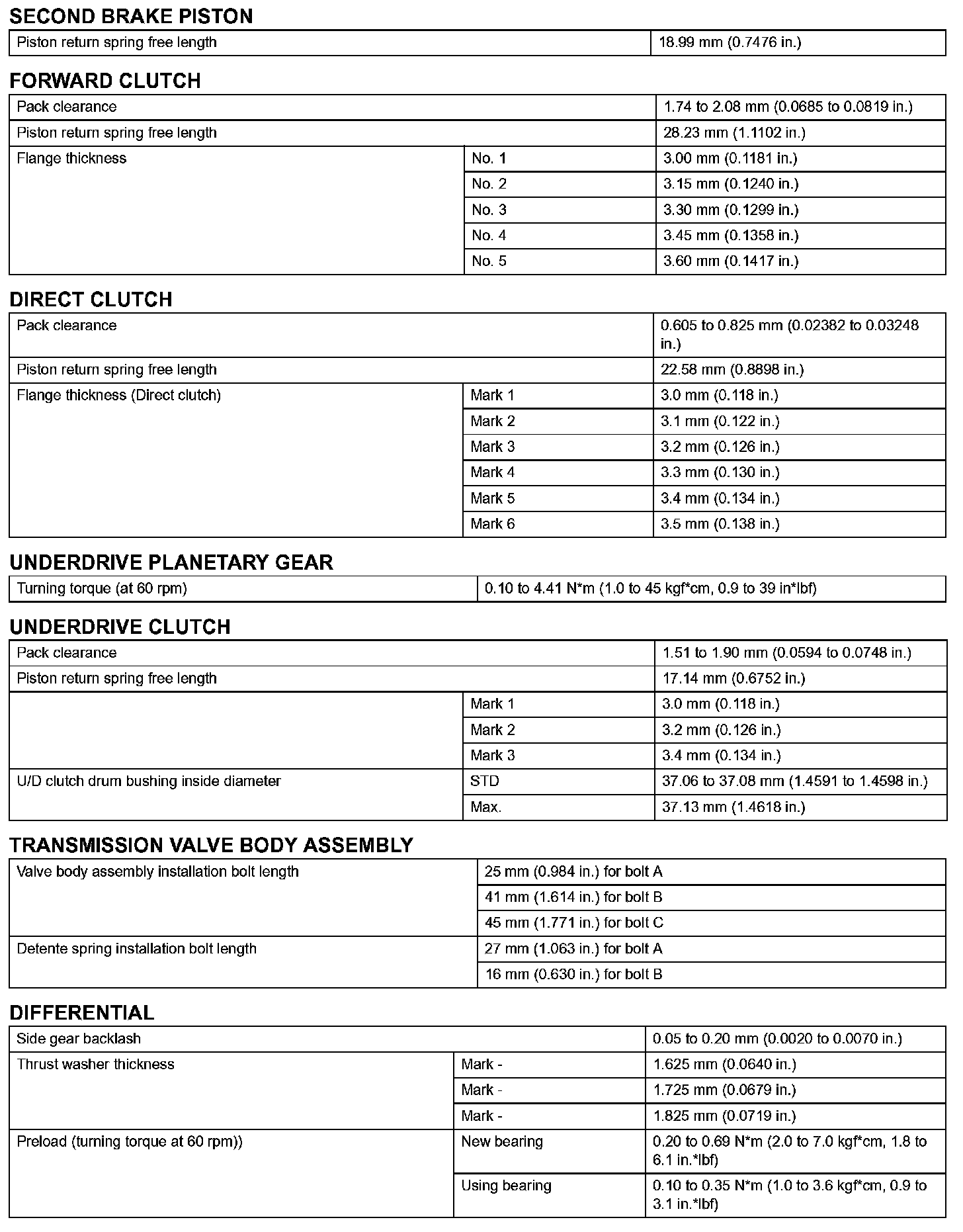

Automatic Transaxle - Service Data (Part 1):



Automatic Transaxle - Service Data (Part 2):



Automatic Transaxle - Service Data (Part 3):



Automatic Transaxle - Service Data (Part 4):
