Park/Neutral Position Switch Inspection

INSPECTION





1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

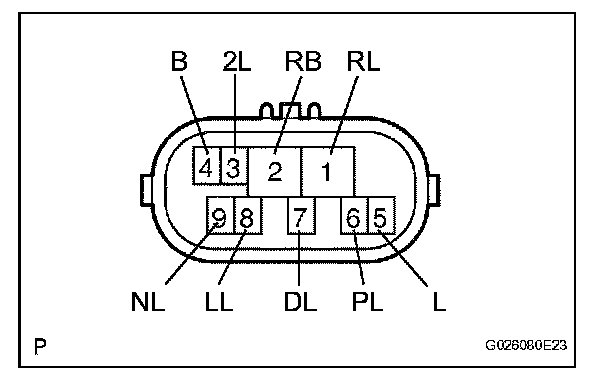

(a) Measure the resistance of the switch when the shift lever is moved to each position.

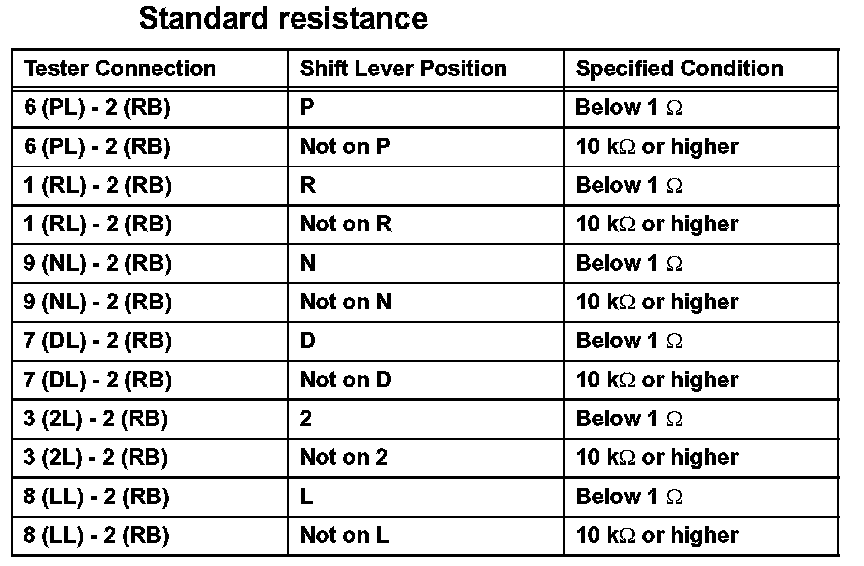

Standard resistance:
