Engine Temperature Sensor: Testing and Inspection

INSPECTION

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

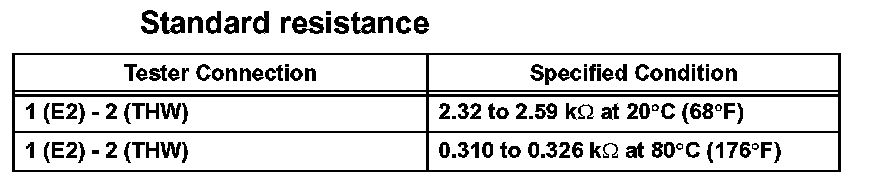

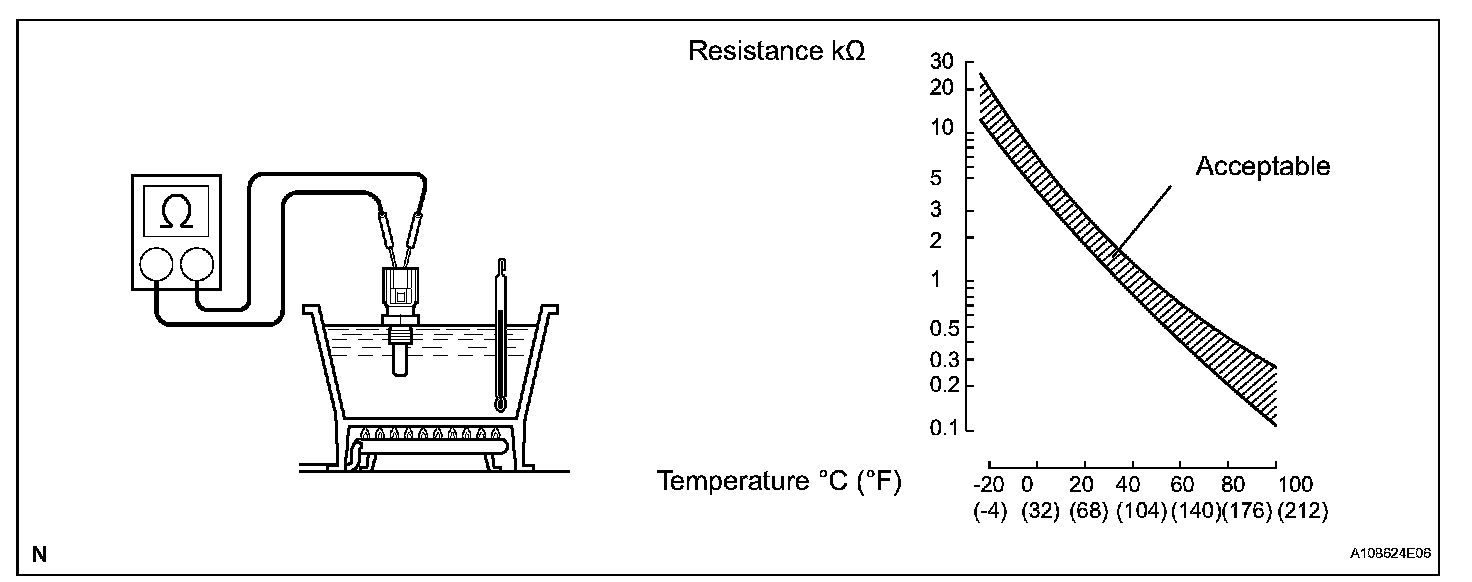

Measure the resistance of the sensor.

NOTE: If checking the sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the sensor.

If the result is not as specified, replace the sensor.
