Battery Current Sensor: Testing and Inspection

ON-VEHICLE INSPECTION

1. CHECK BATTERY CURRENT SENSOR ASSEMBLY

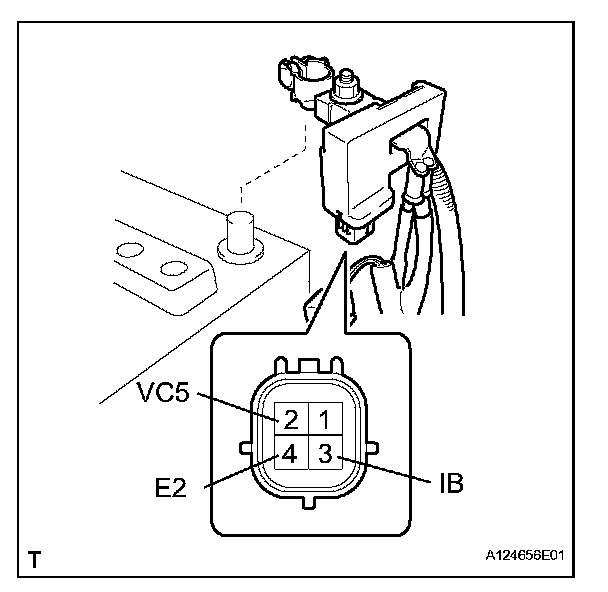

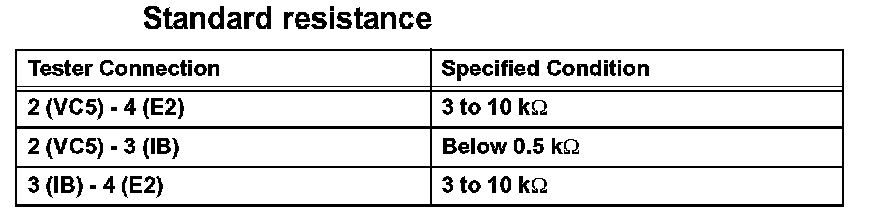

a. Measure the resistance of the sensor.

If the result is not as specified, replace the sensor assembly.

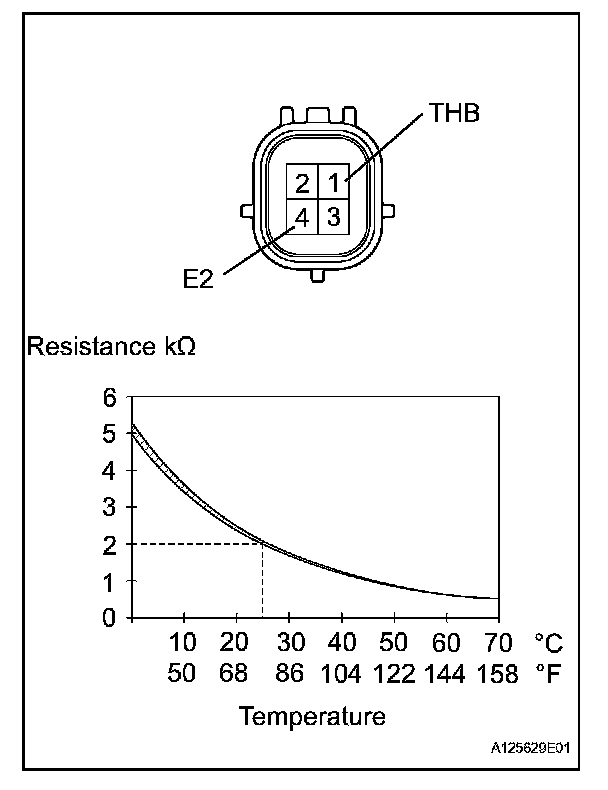

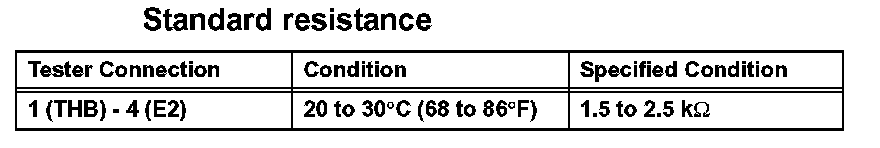

b. Measure the resistance of the sensor.

If the result is not as specified, replace the sensor assembly.
