Home >> Toyota >> 2007 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Locations

Accelerator Pedal Position Sensor: Locations

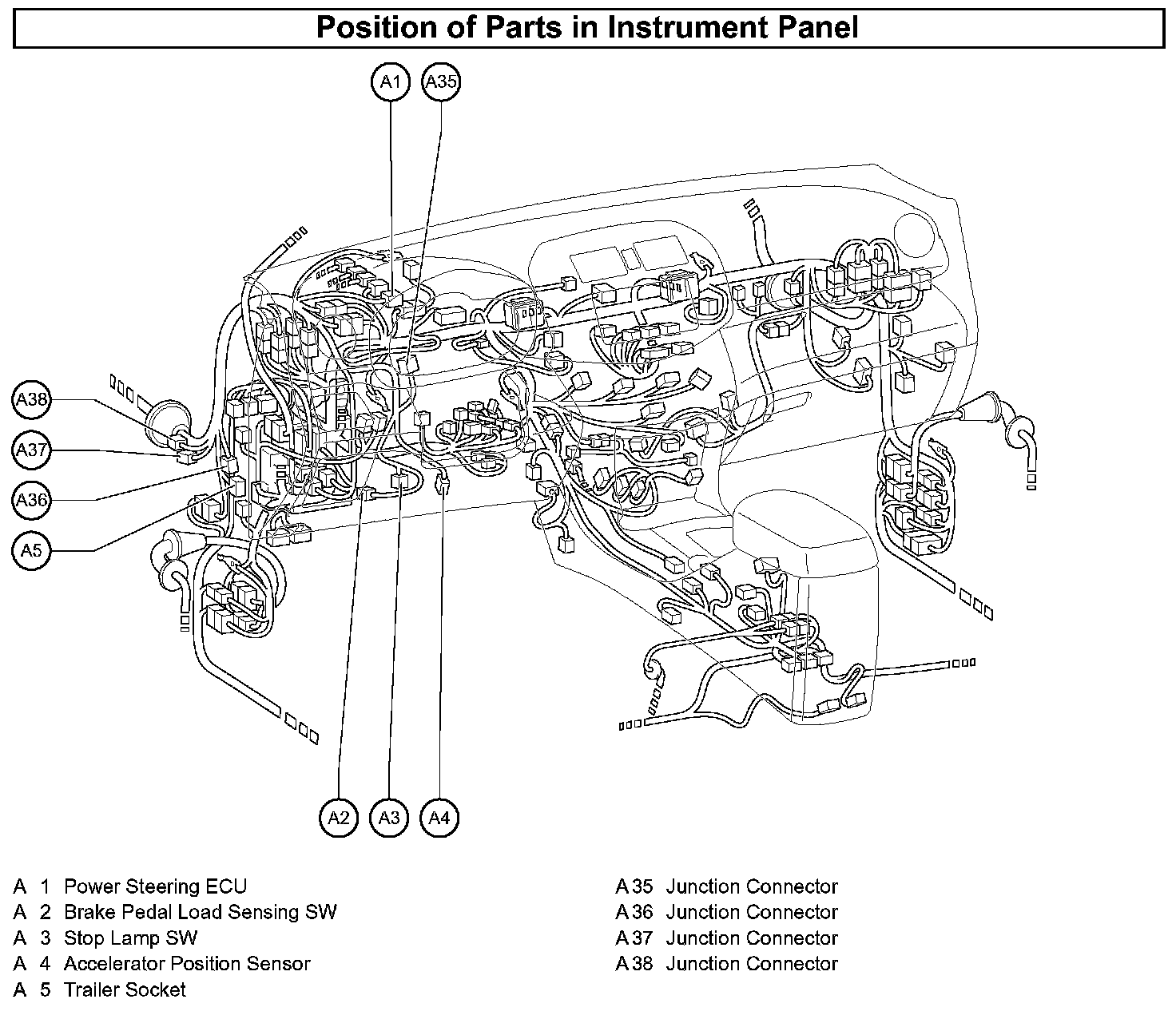

Ac - Tr:

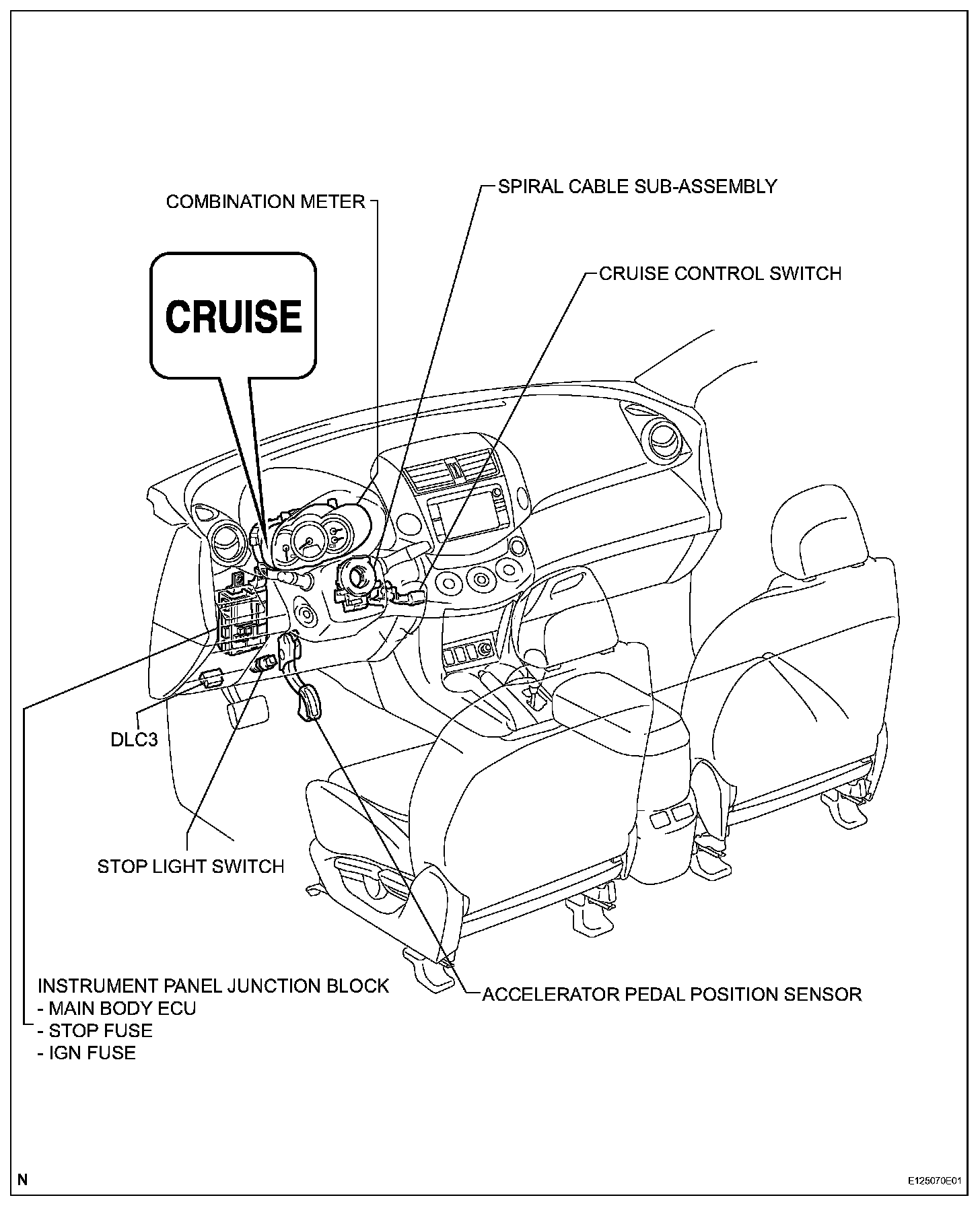

Cruise Control System:
