Home >> Toyota >> 2007 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Knock Sensor

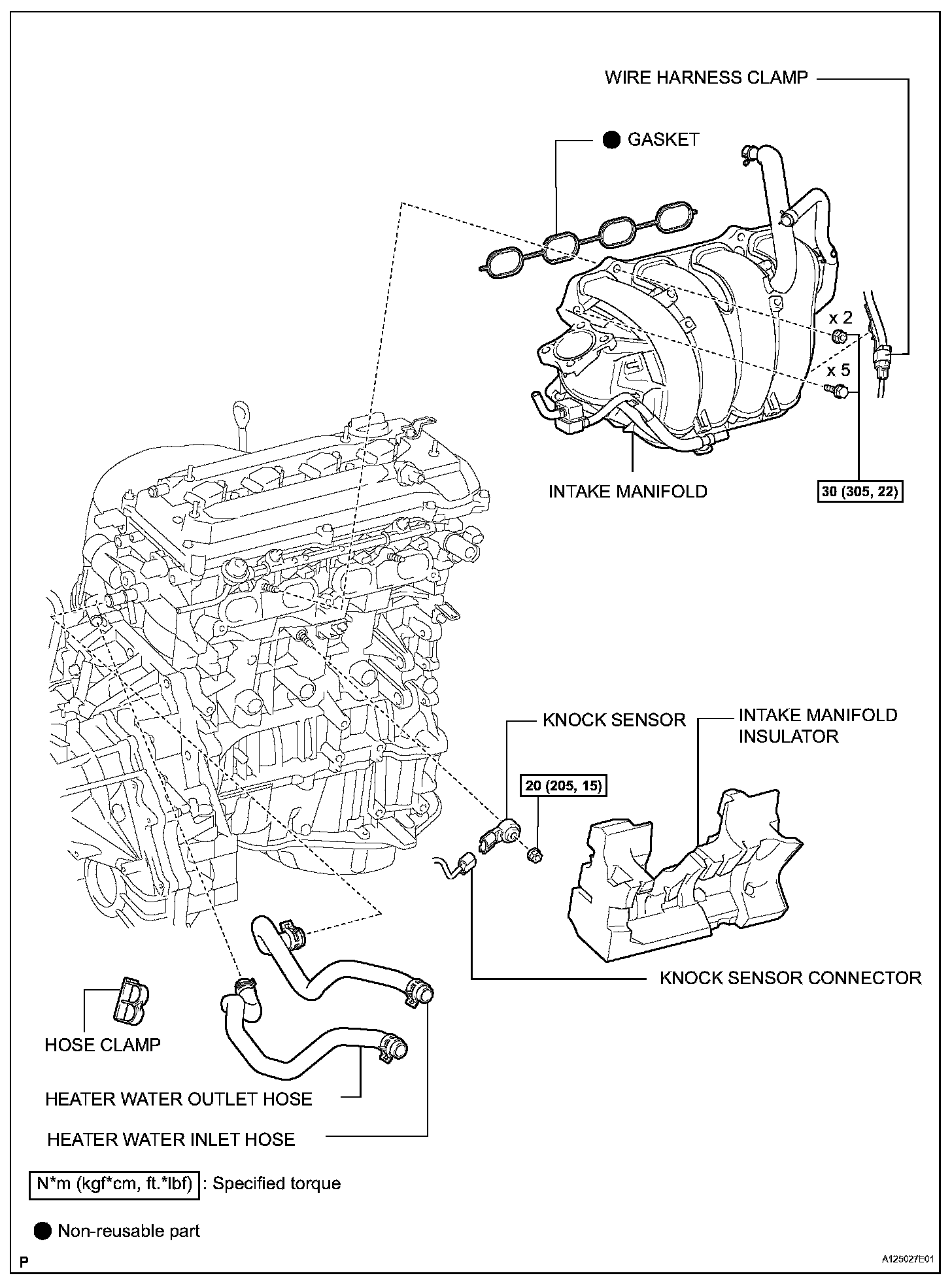

Knock Sensor

Knock Sensor:



Knock Sensor:



Knock Sensor:



Knock Sensor:
