System Diagram

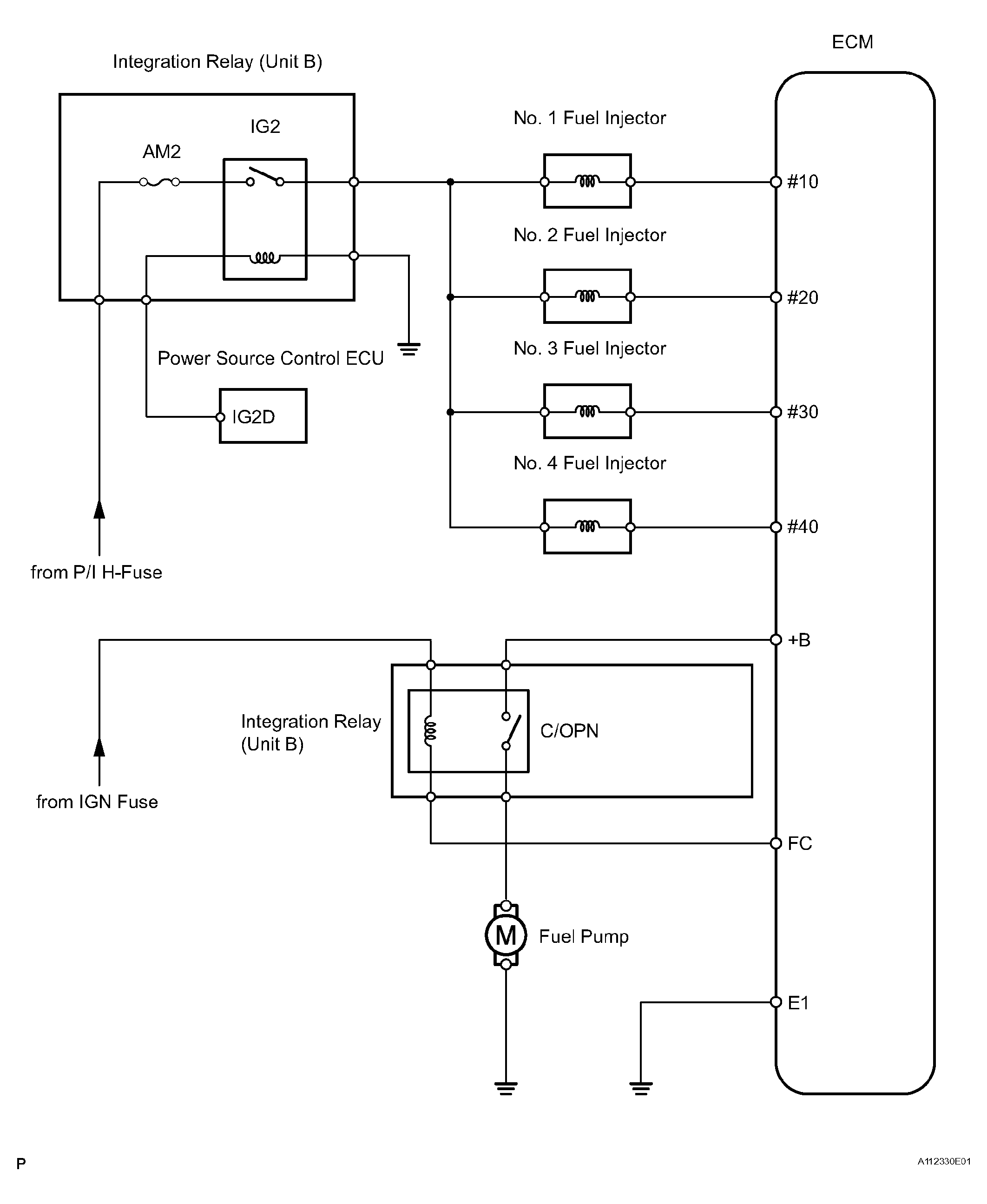

Fig 1: Fuel System Electrical Diagram
G04472826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
