Seat Belt Warning: Notes

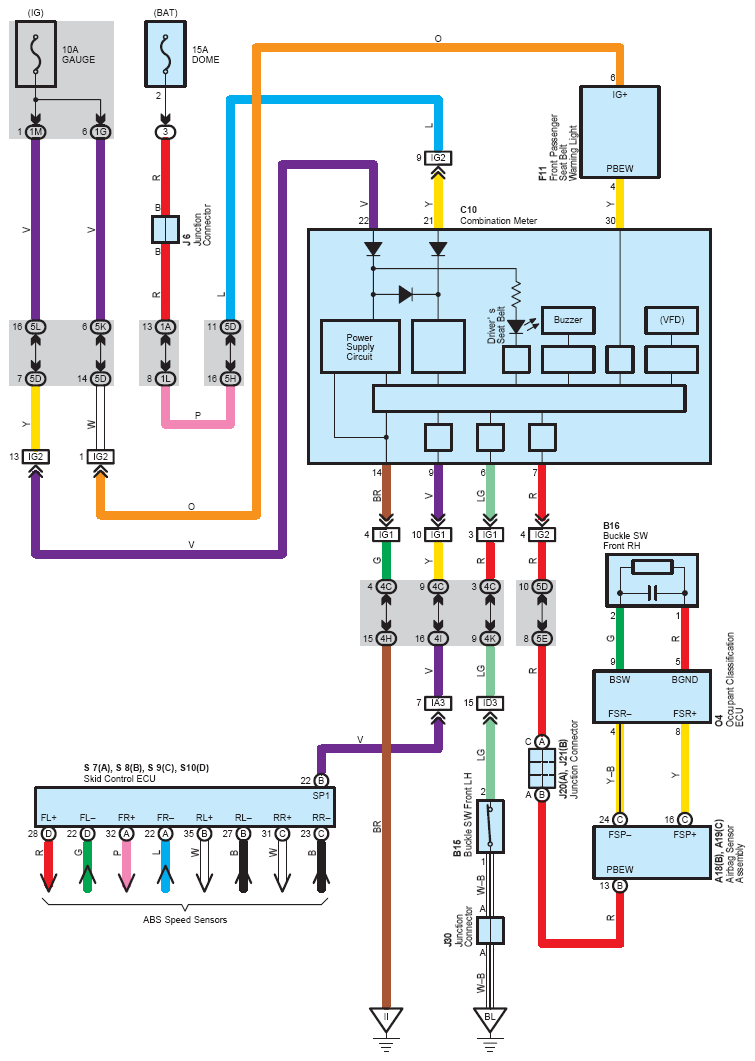

Fig 1: Seat belt warning system wiring diagram

G08866073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
