Rear Window Defogger And Mirror Heater: Notes

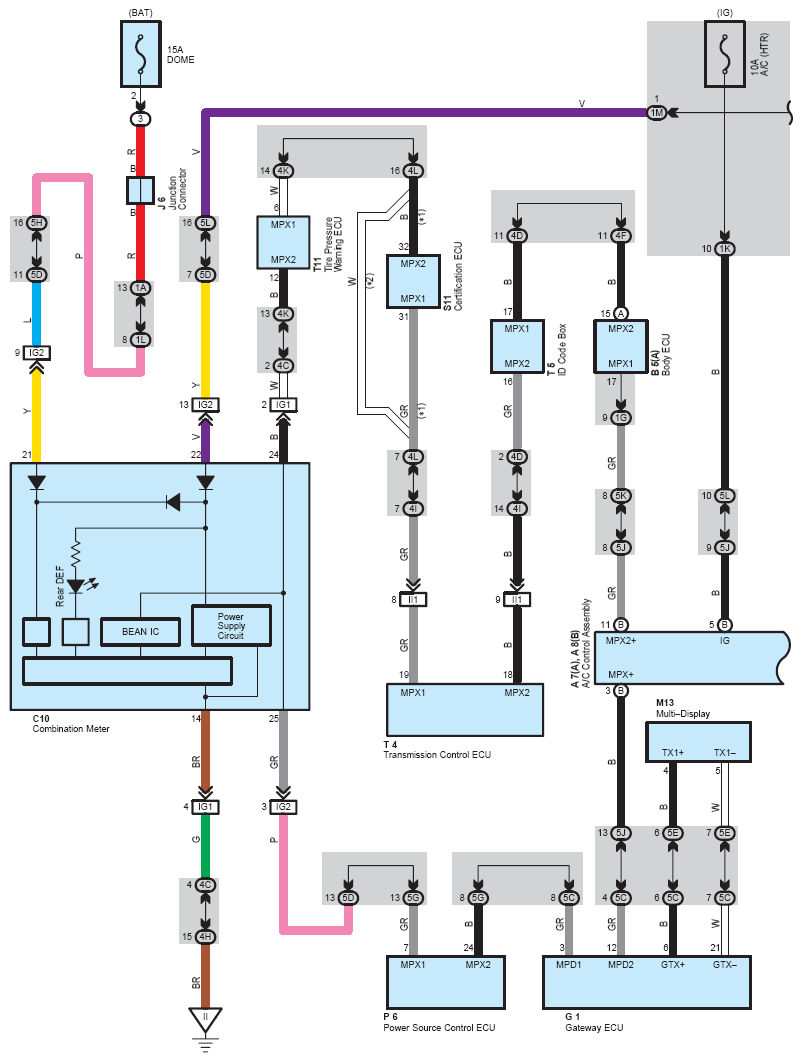

Fig 1: Rear window defogger and mirror heater system wiring diagram (1 of 2)
G08866155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

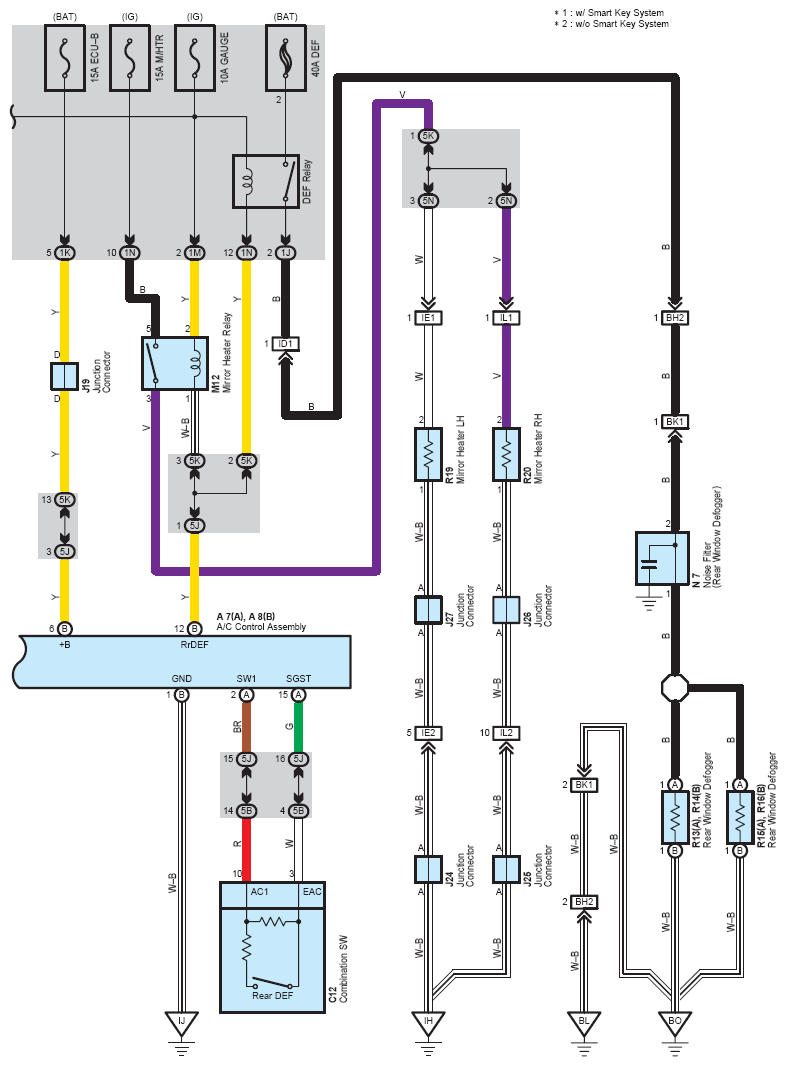

Fig 2: Rear window defogger and mirror heater system wiring diagram (2 of 2)
G08866156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
