Garage Door Opener: Notes

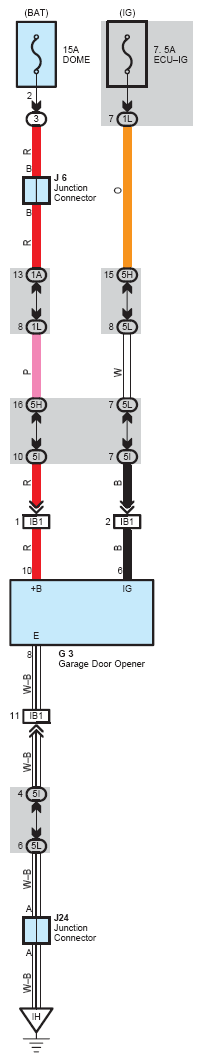

Fig 1: Garage door opener system wiring diagram

G08866158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
