Back Window Lock

BACK WINDOW LOCK

INSPECTION

1. REMOVE BACK WINDOW LOCK ASSEMBLY

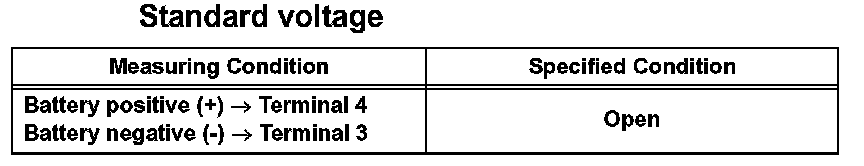

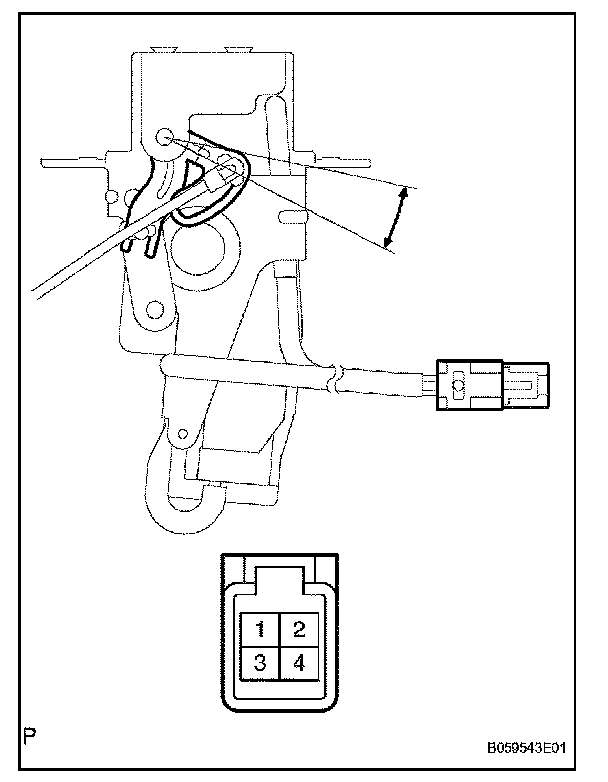

a. Apply battery voltage and inspect the window lock motor operation, as shown in the illustration and table.






If the resistance as specified, replace the window lock assembly.

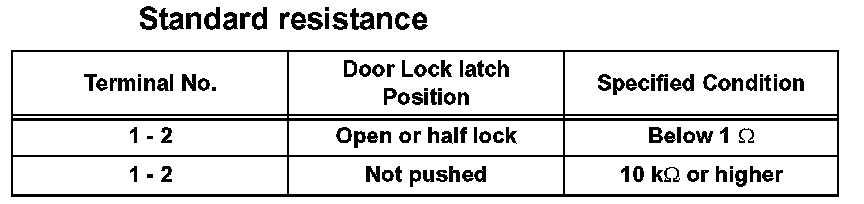

b. Measure the resistance according to the value(s) in the table below.






If the result is not as specified, replace the switch assembly.
