Rear Power Window Switch

REAR POWER WINDOW SWITCH

INSPECTION


1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear Side)

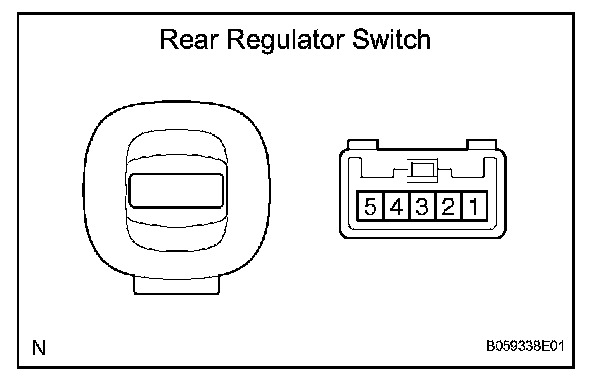

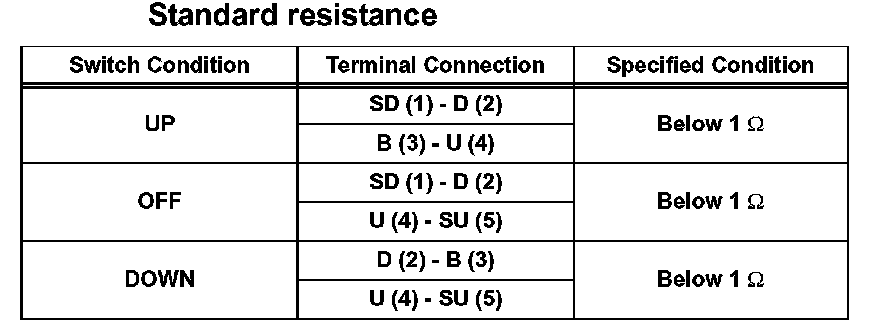

a. Measure the resistance of the rear regulator switch.






If the result is not as specified, replace the regulator switch.
