Front Passenger Side Power Window Switch

FRONT PASSENGER SIDE POWER WINDOW SWITCH

INSPECTION

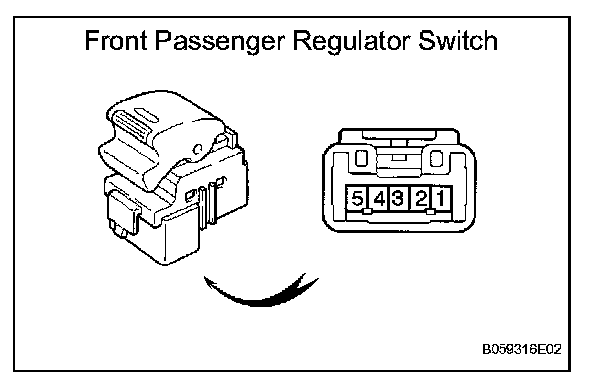

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)

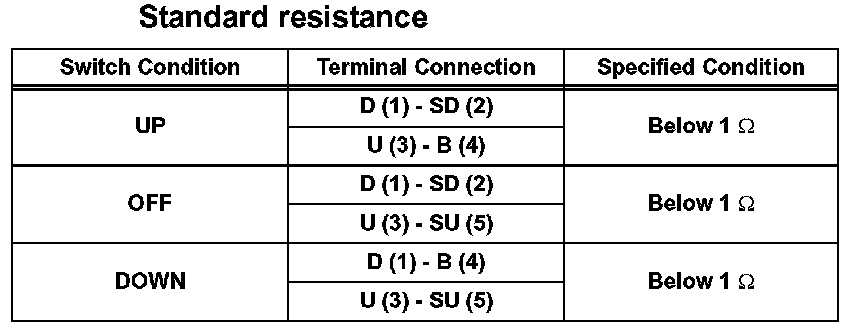

a. Measure the resistance of the front passenger regulator switch.






If the result is not as specified, replace the regulator switch.
