Torque

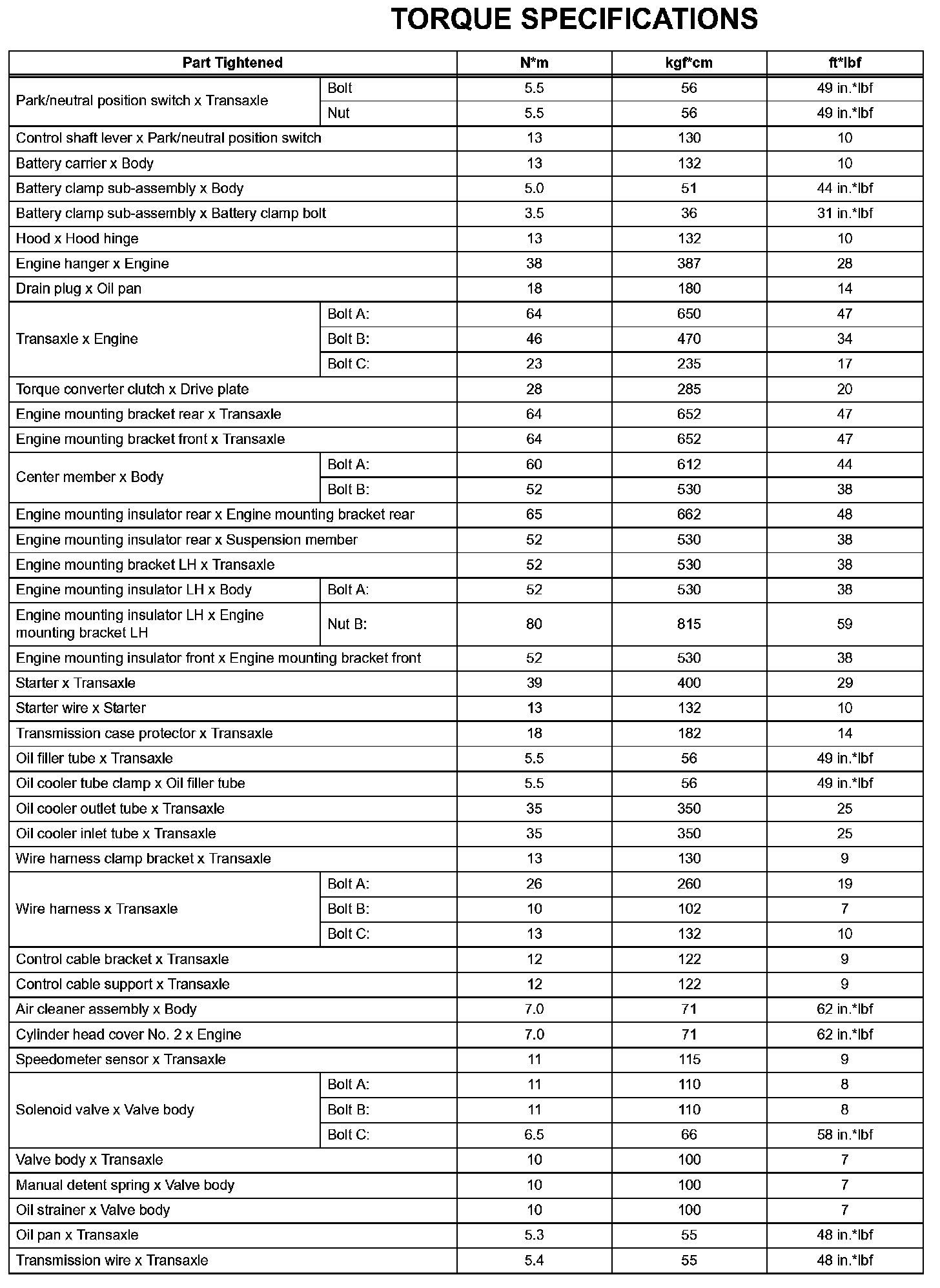

Automatic Transaxle - Torque Specifications (Part 1):



Automatic Transaxle - Torque Specifications (Part 2):
