Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

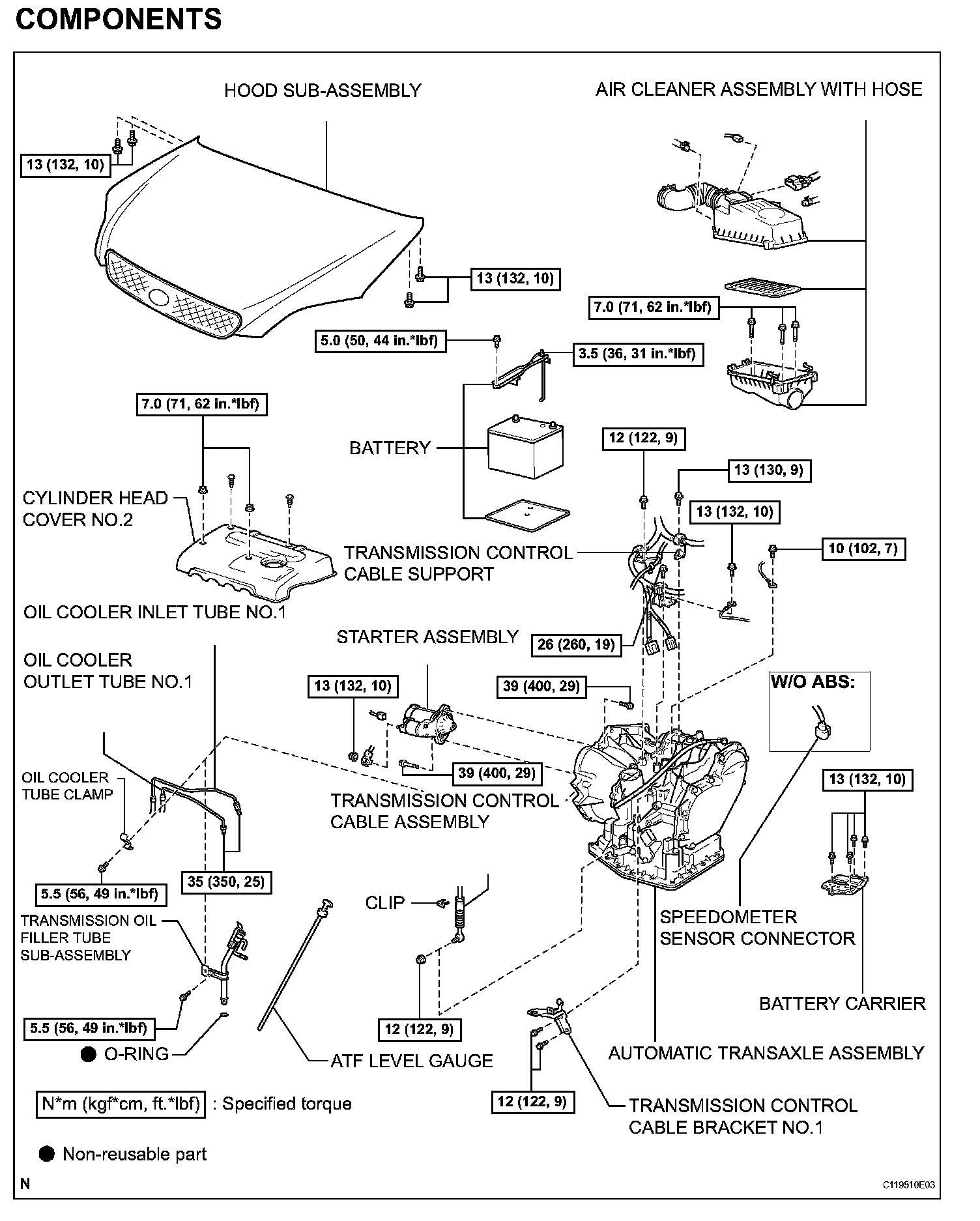

COMPONENTS (Part 1):

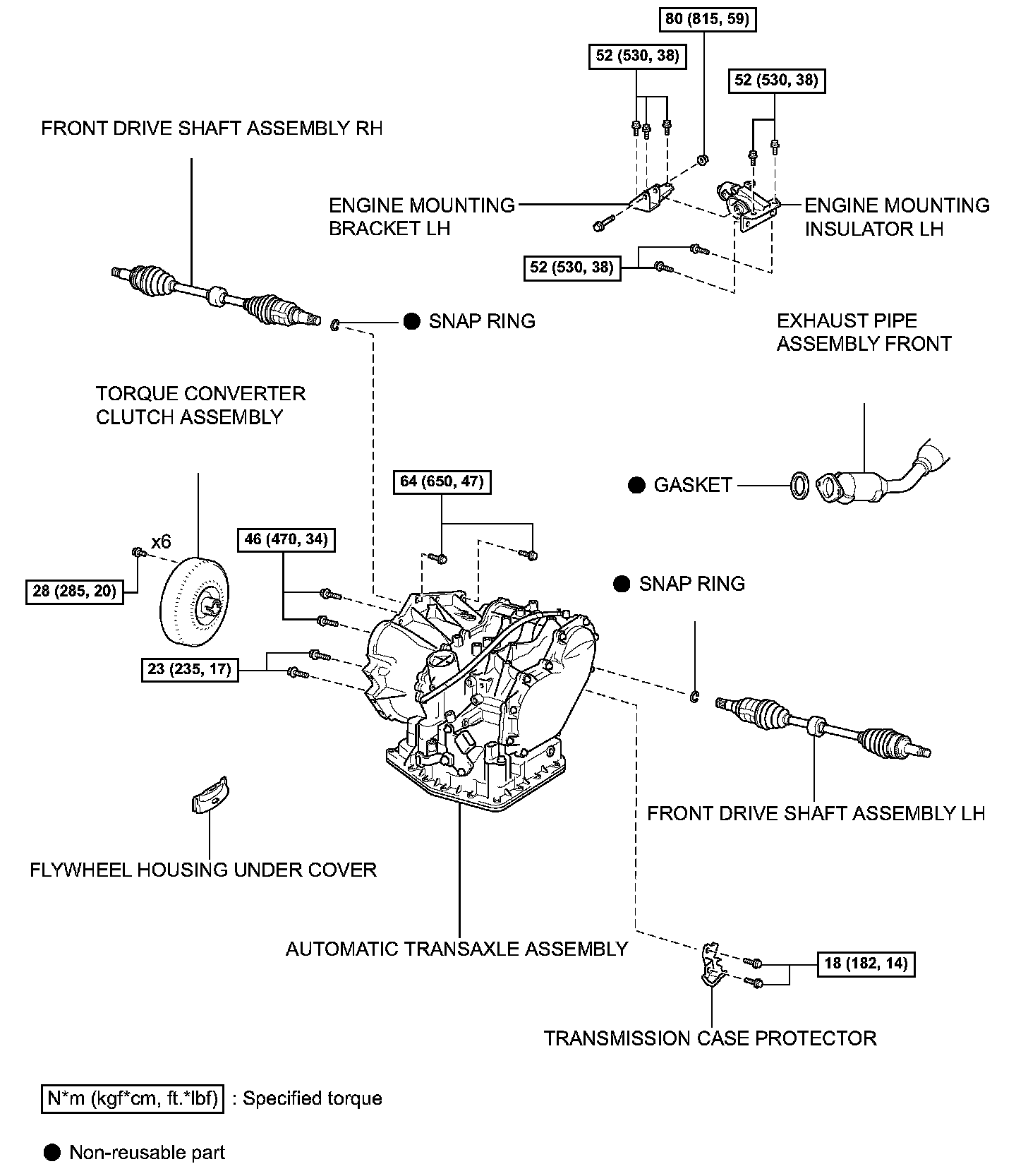

COMPONENTS (Part 2):

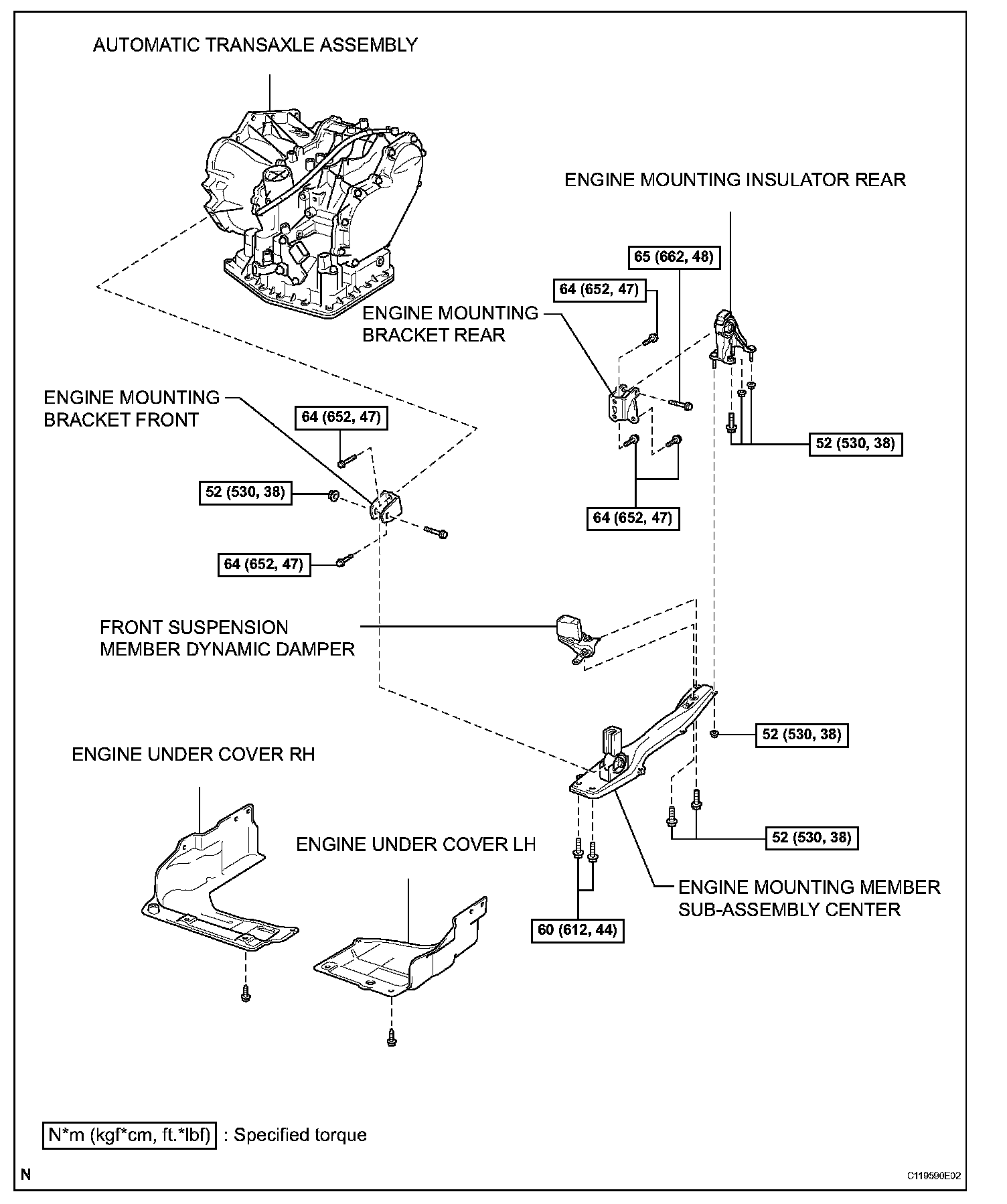

COMPONENTS (Part 3):
