Electronic Brake Control Module
>>
Vehicle Stability Control System
Vehicle Stability Control System

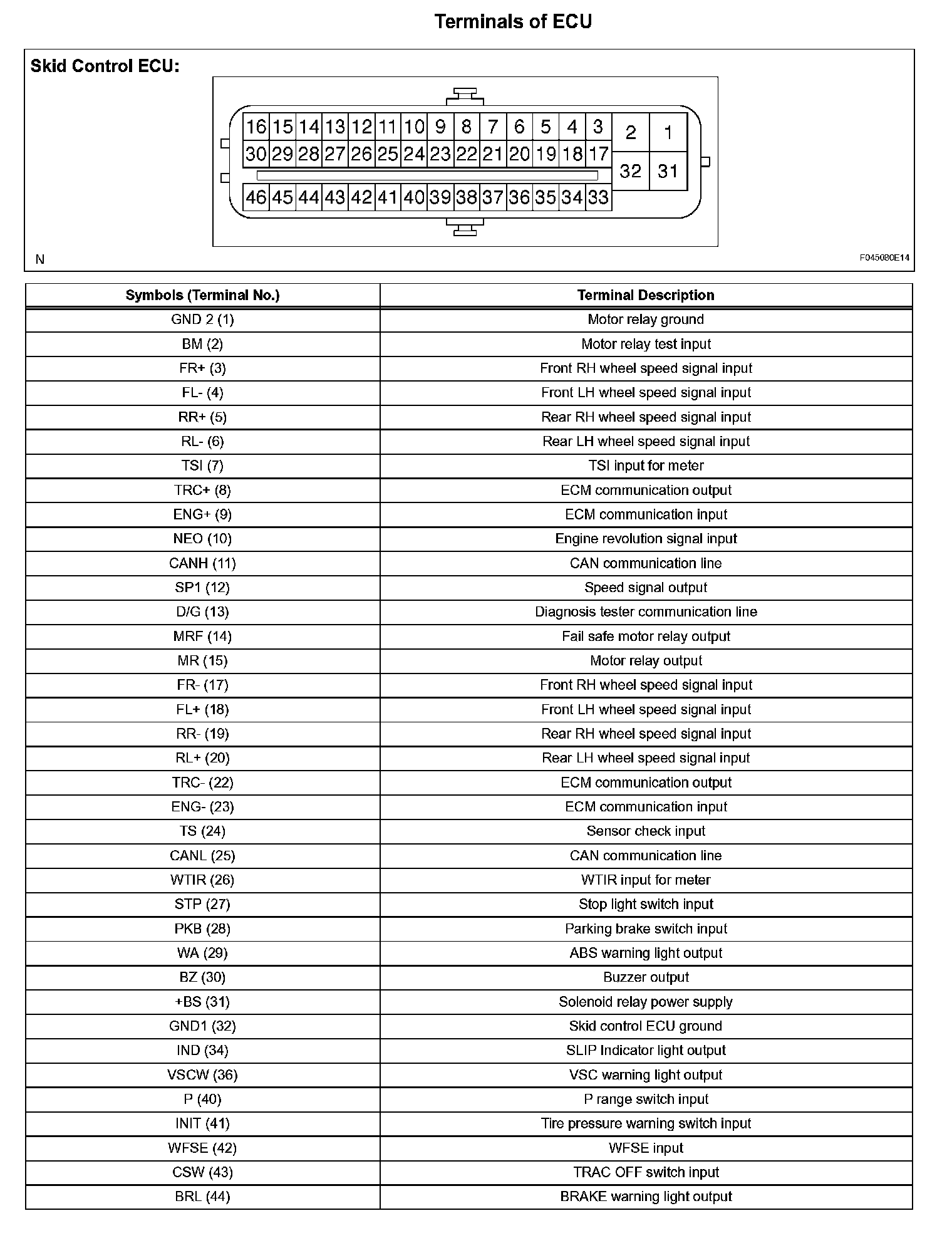

Terminals Of Control Module/Pinouts (Part 1):

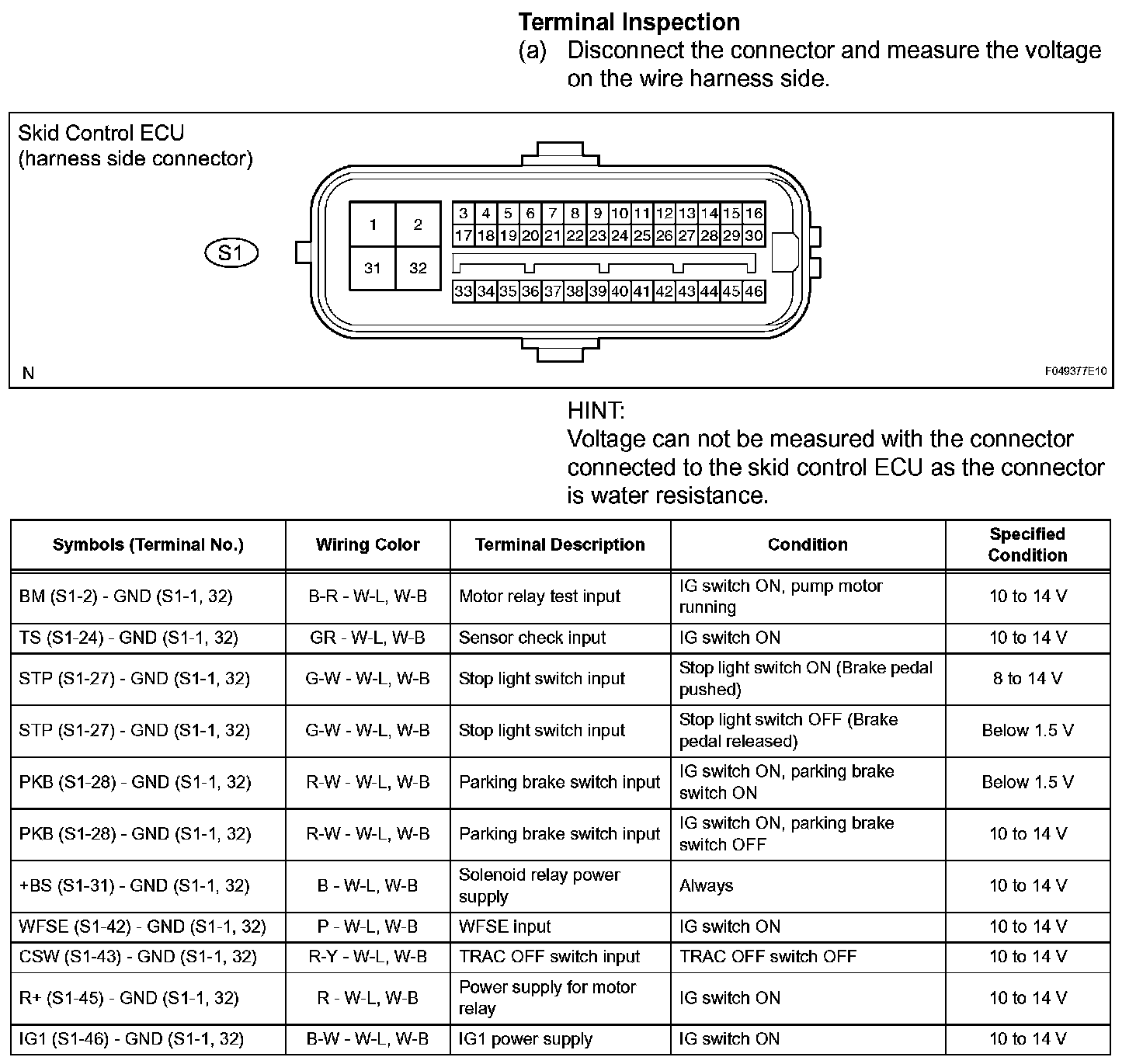

Terminals Of Control Module/Pinouts (Part 2):
Terminals Of Control Module/Pinouts:
