Alarm Module: Testing and Inspection

ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the TVIP ECU.

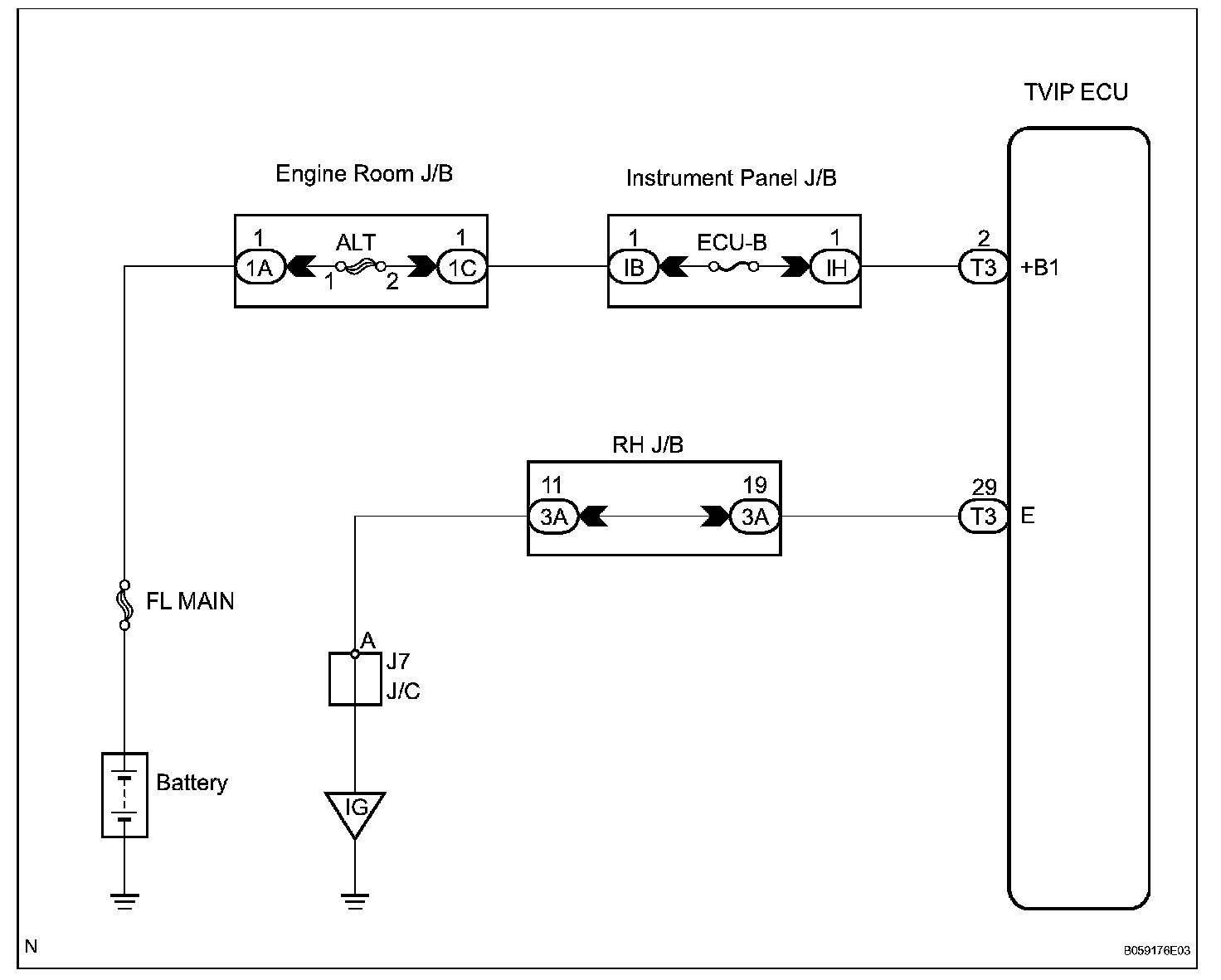

Wiring Diagram:

INSPECTION PROCEDURE

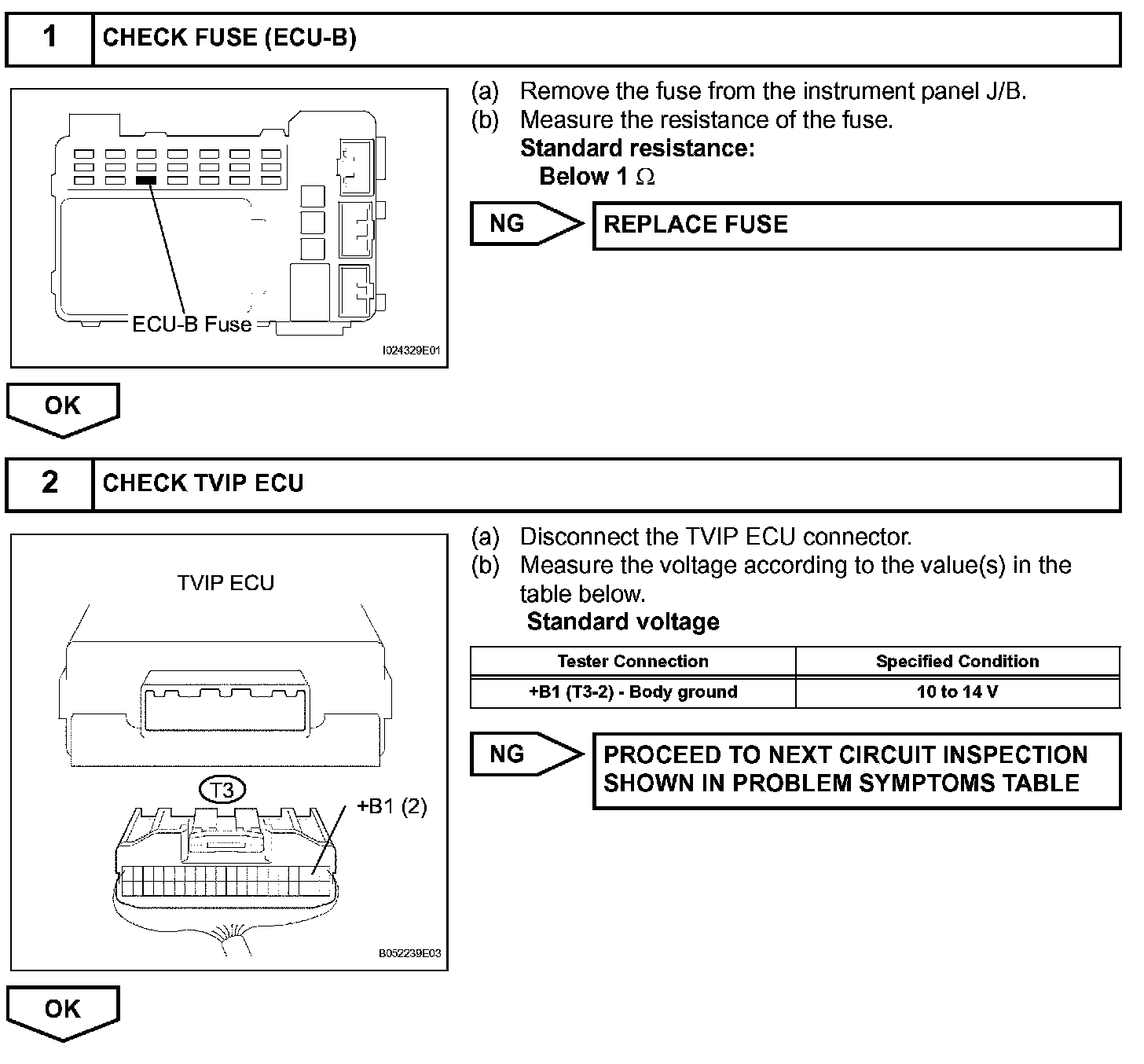

Step 1-2:

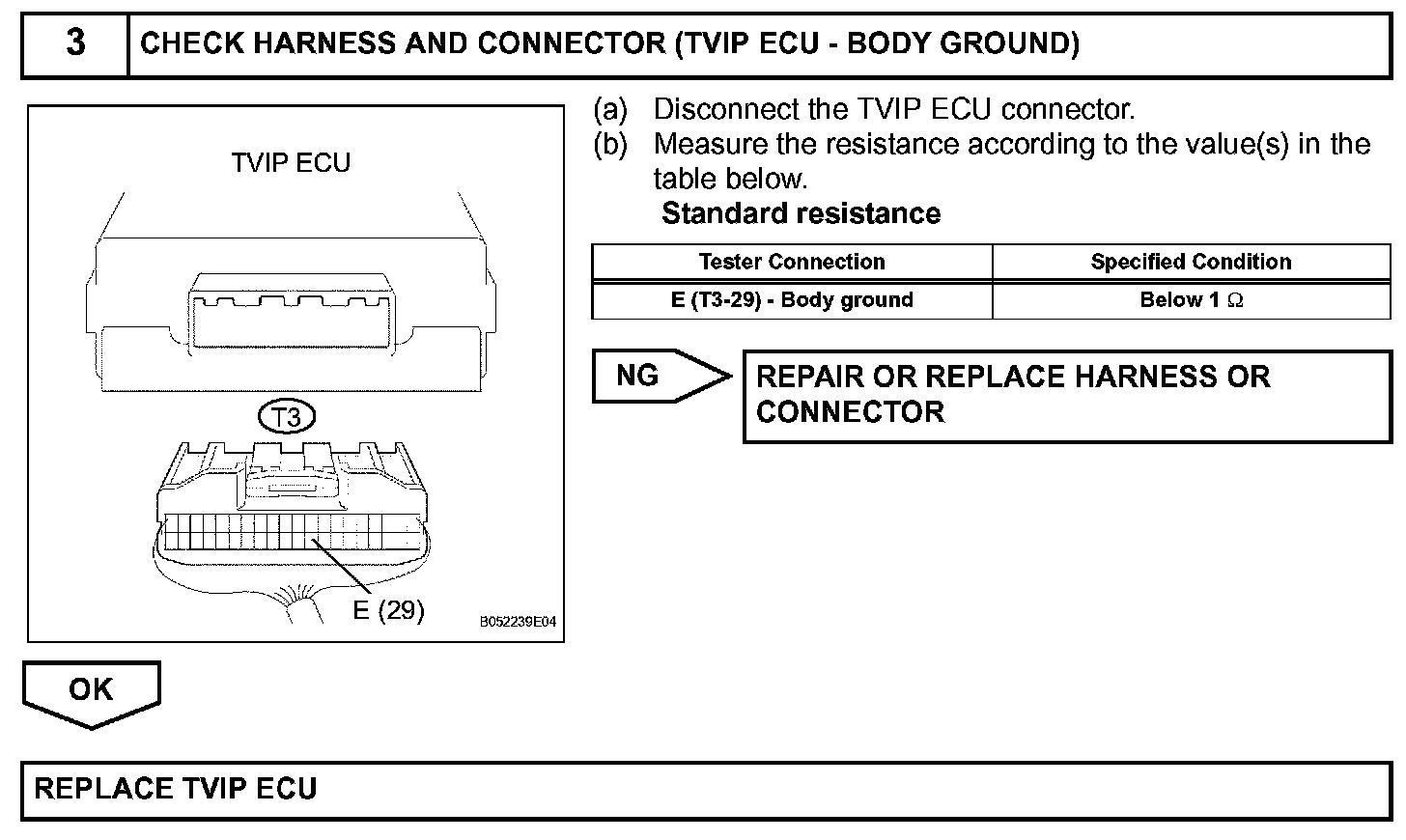

Step 3:
