Rear Lateral Control Rod: Components

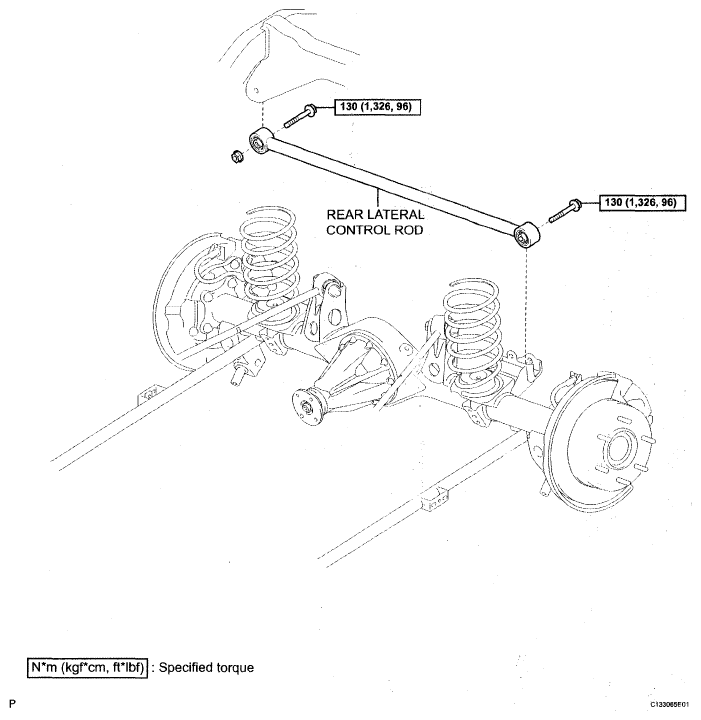

Fig 1: Rear Lateral Control Rod Replacement Components With Torque Specifications

G05112181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
