Automatic Transmission/Transaxle

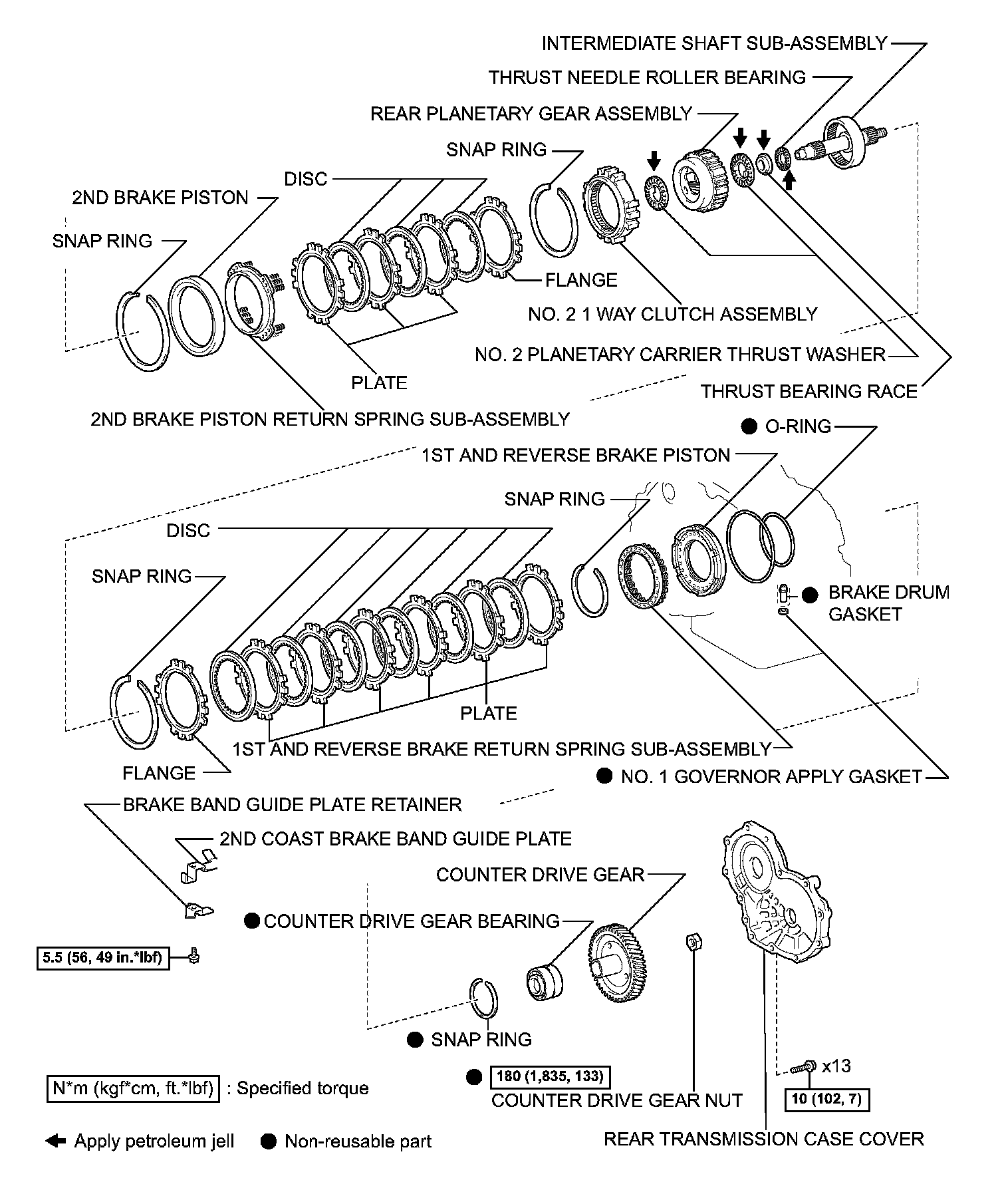

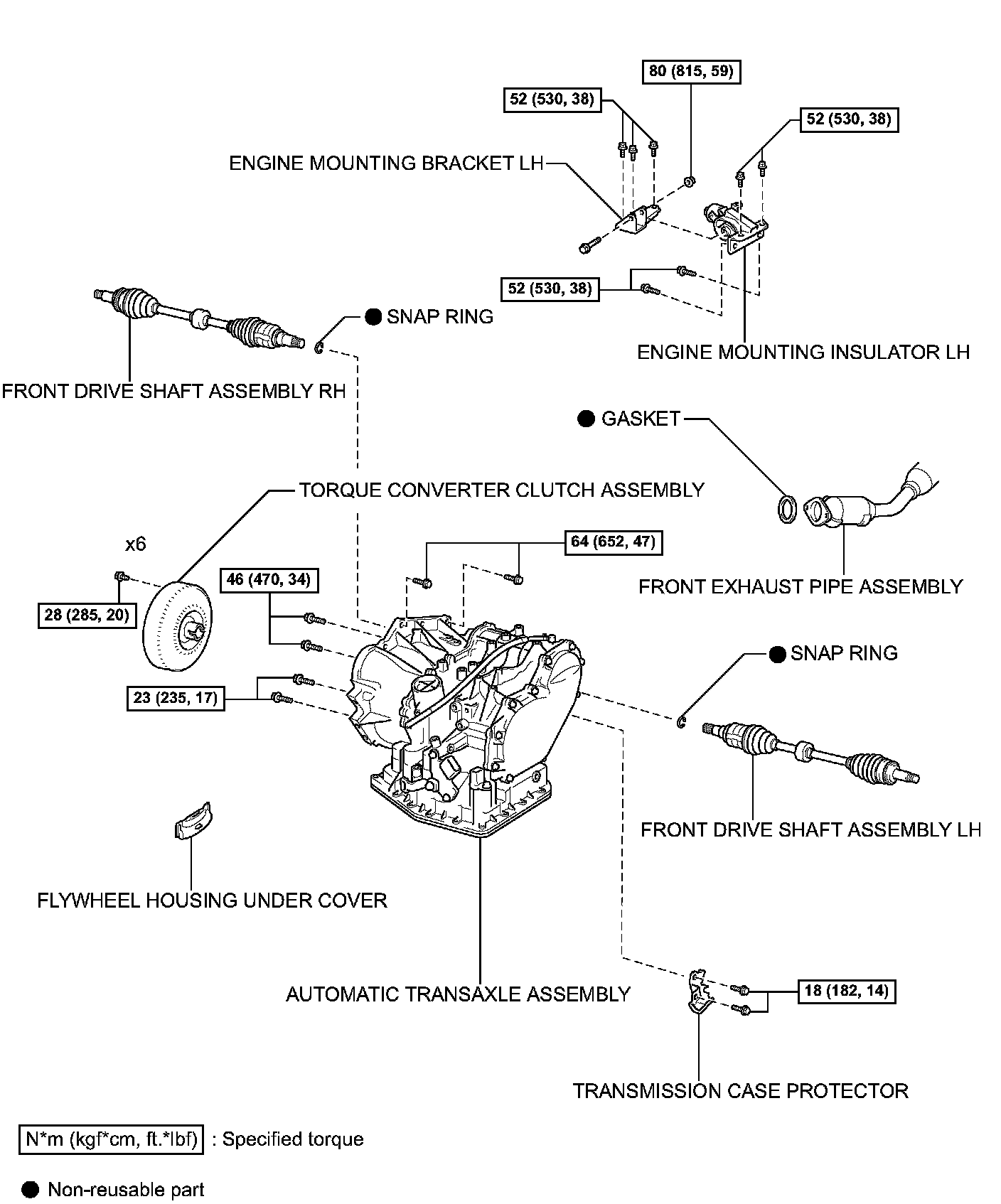

COMPONENTS (Part 1):

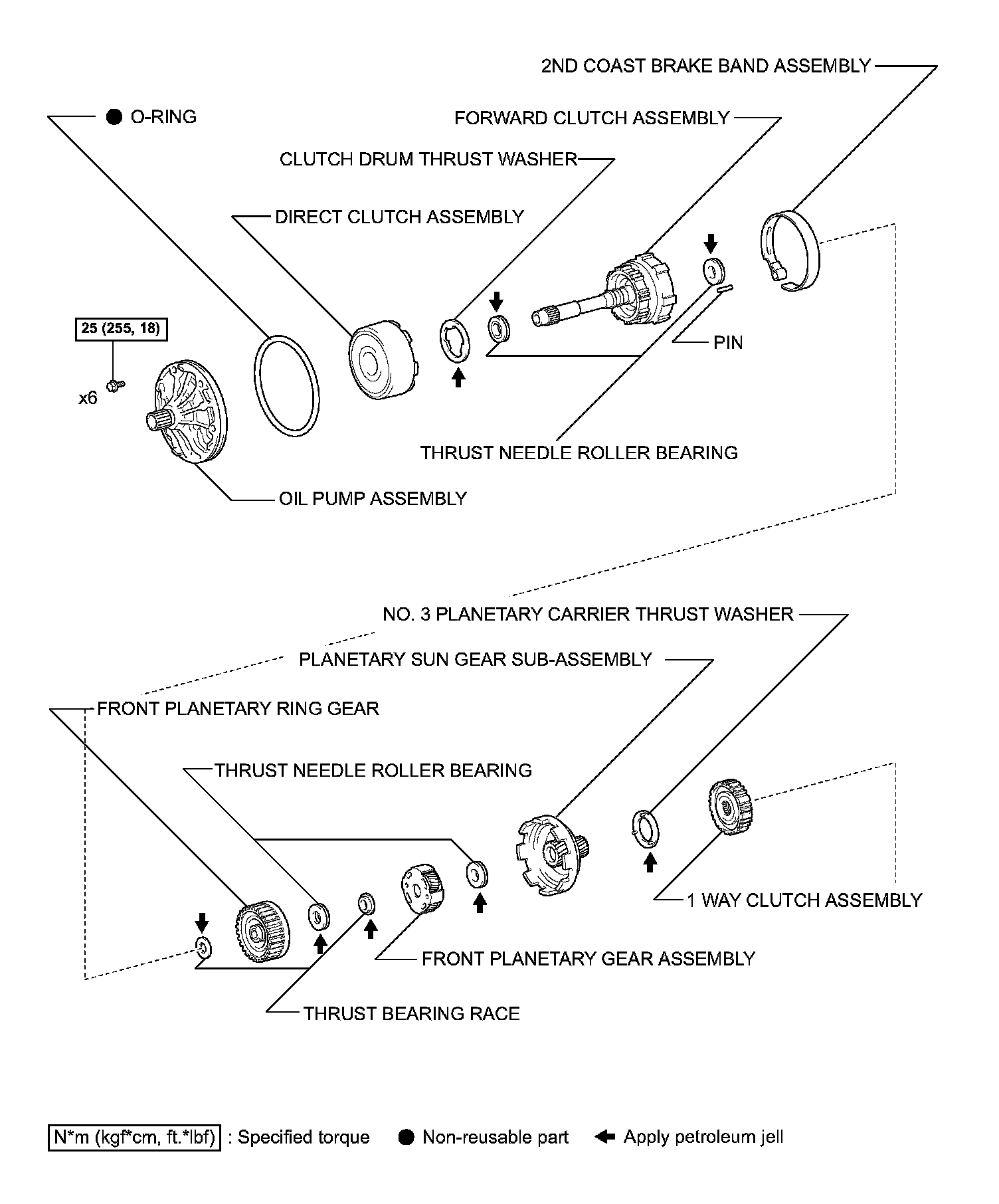

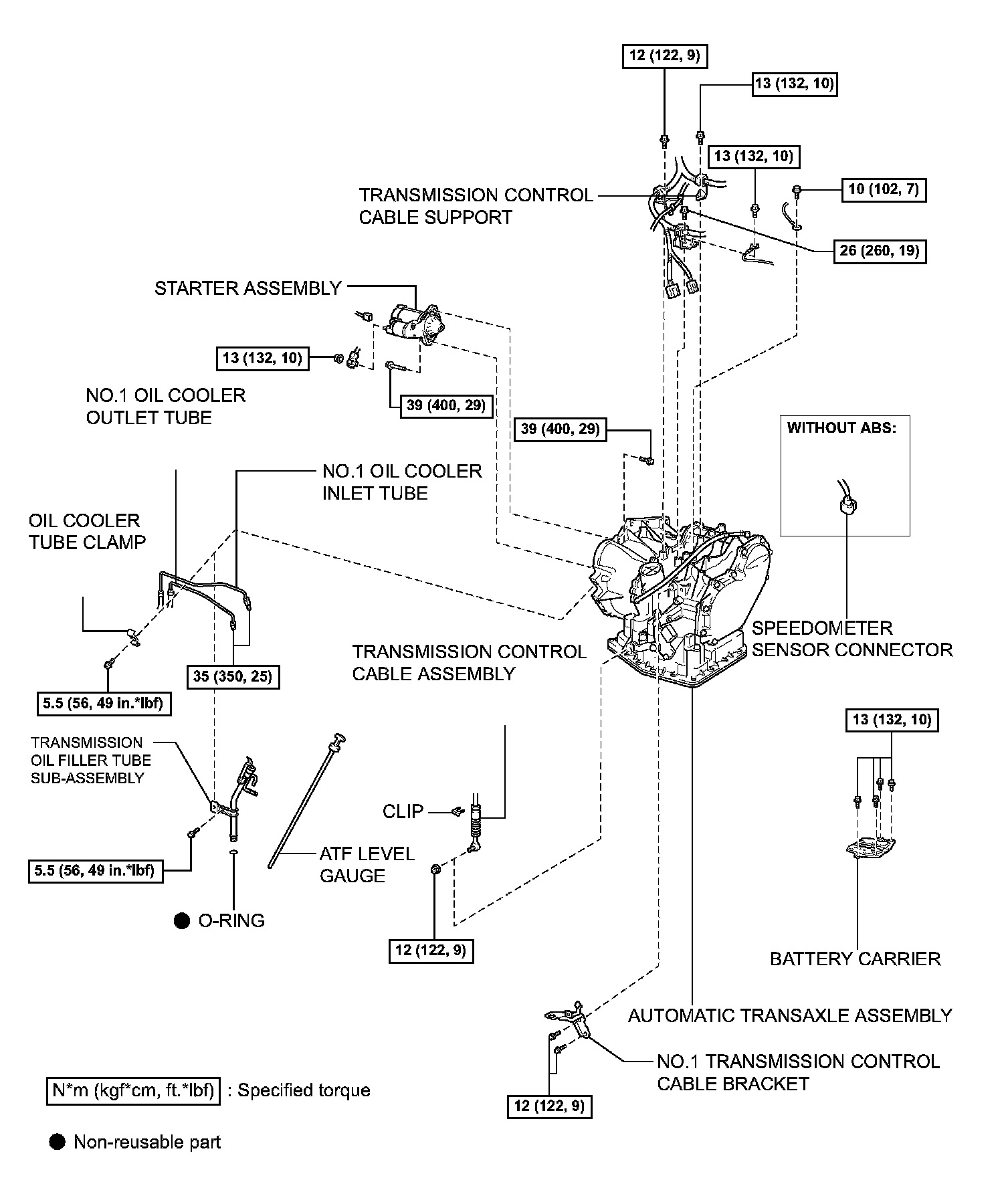

COMPONENTS (Part 2):

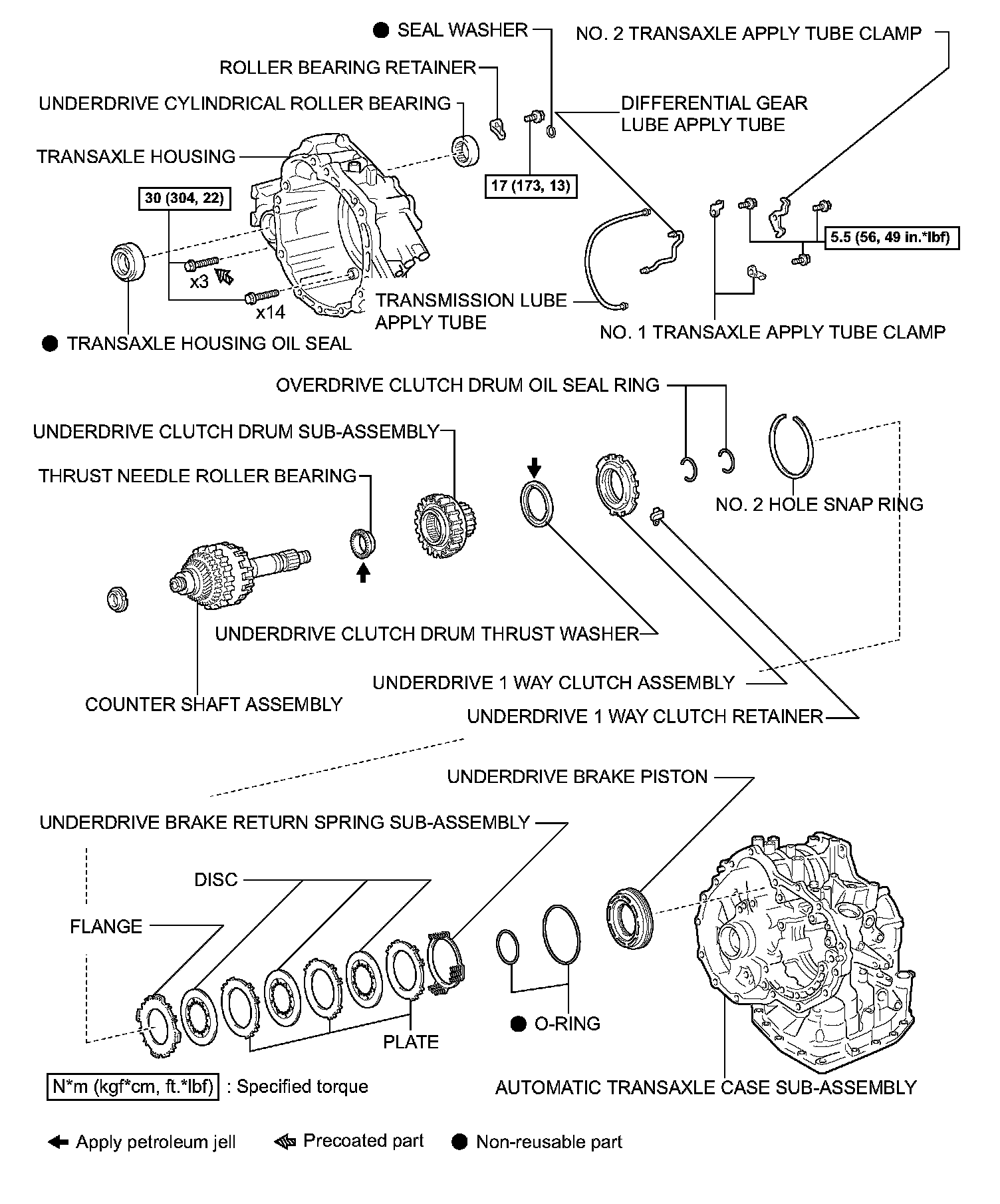

COMPONENTS (Part 3):

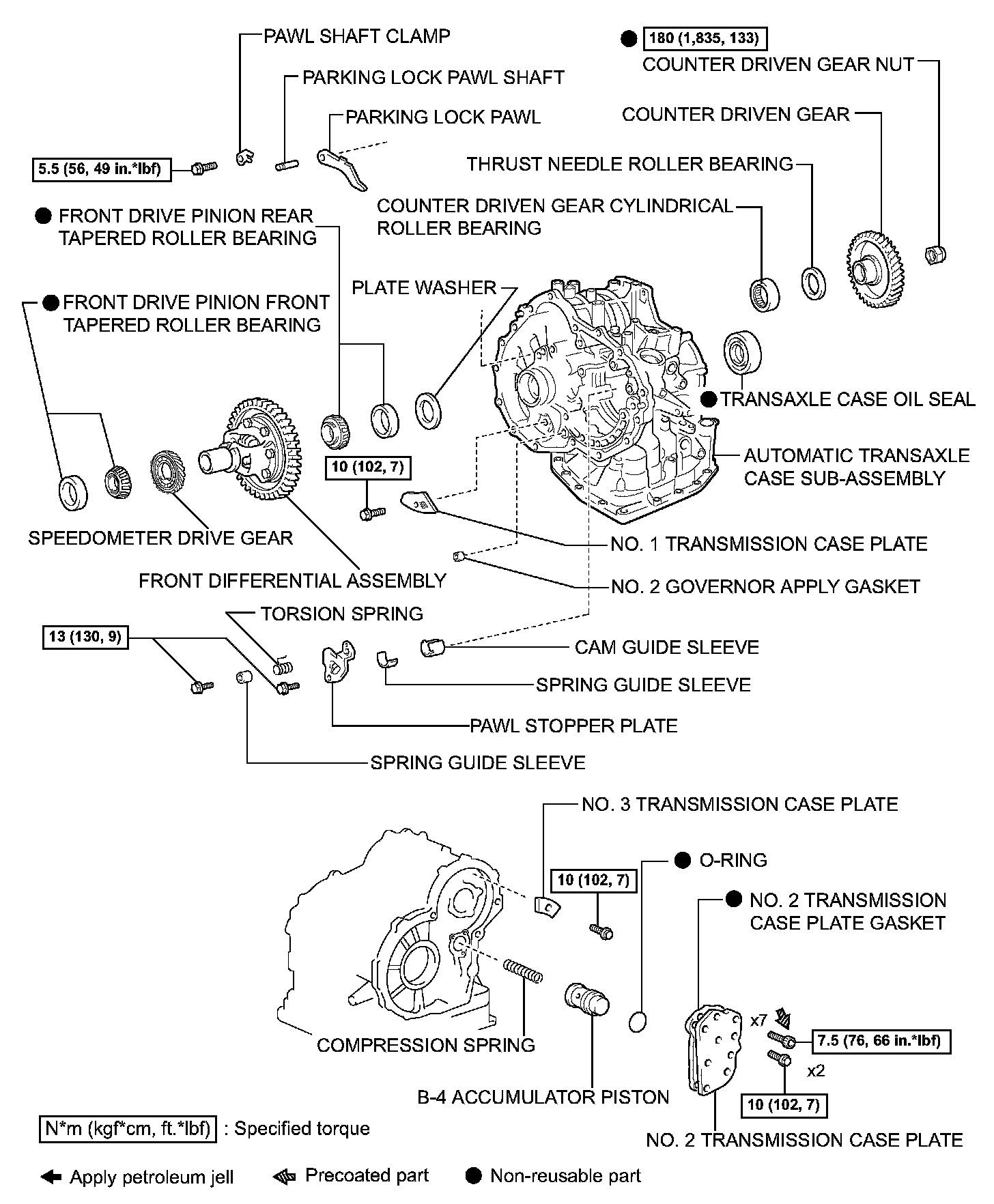

COMPONENTS (Part 4):

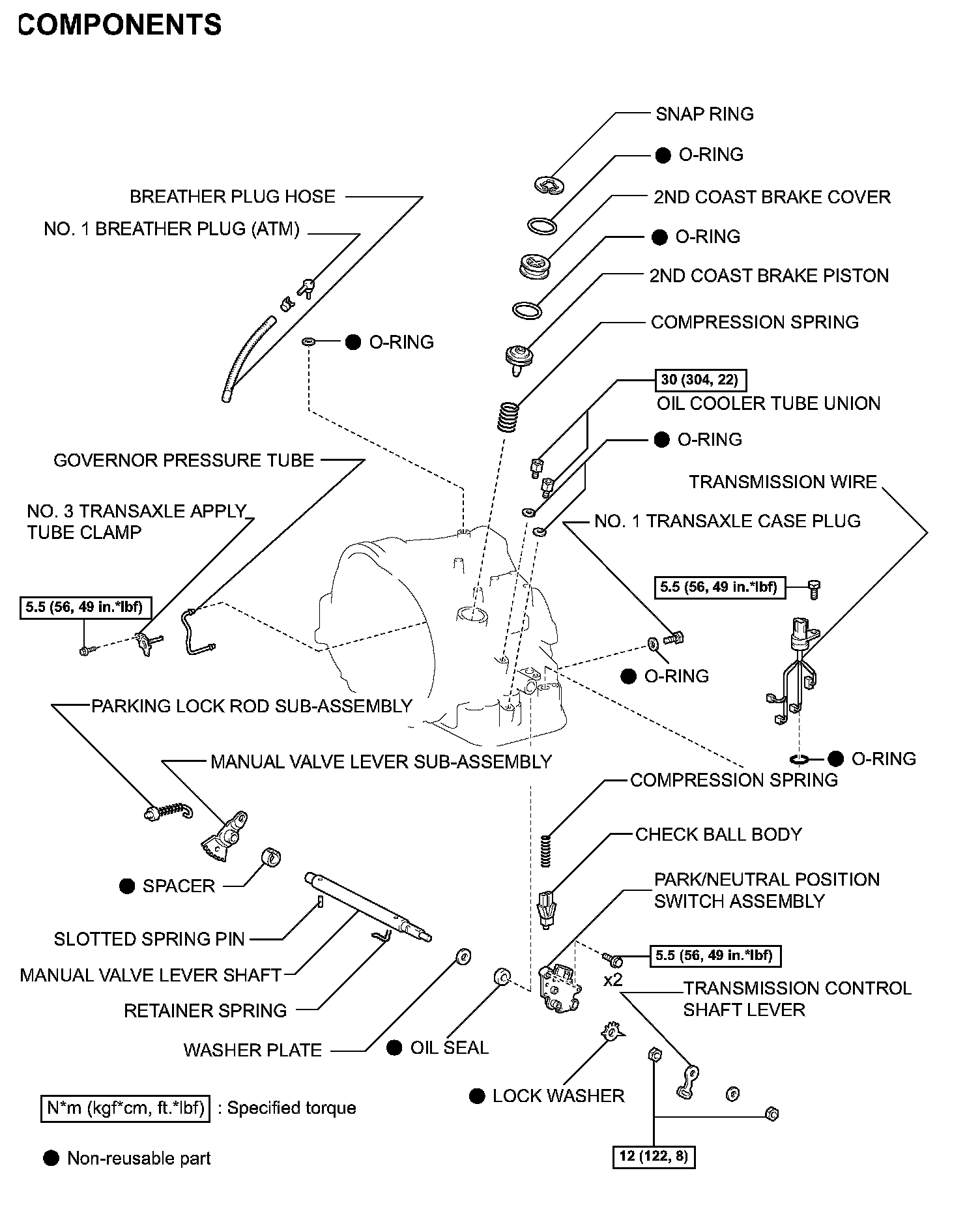

Components (Part 1):

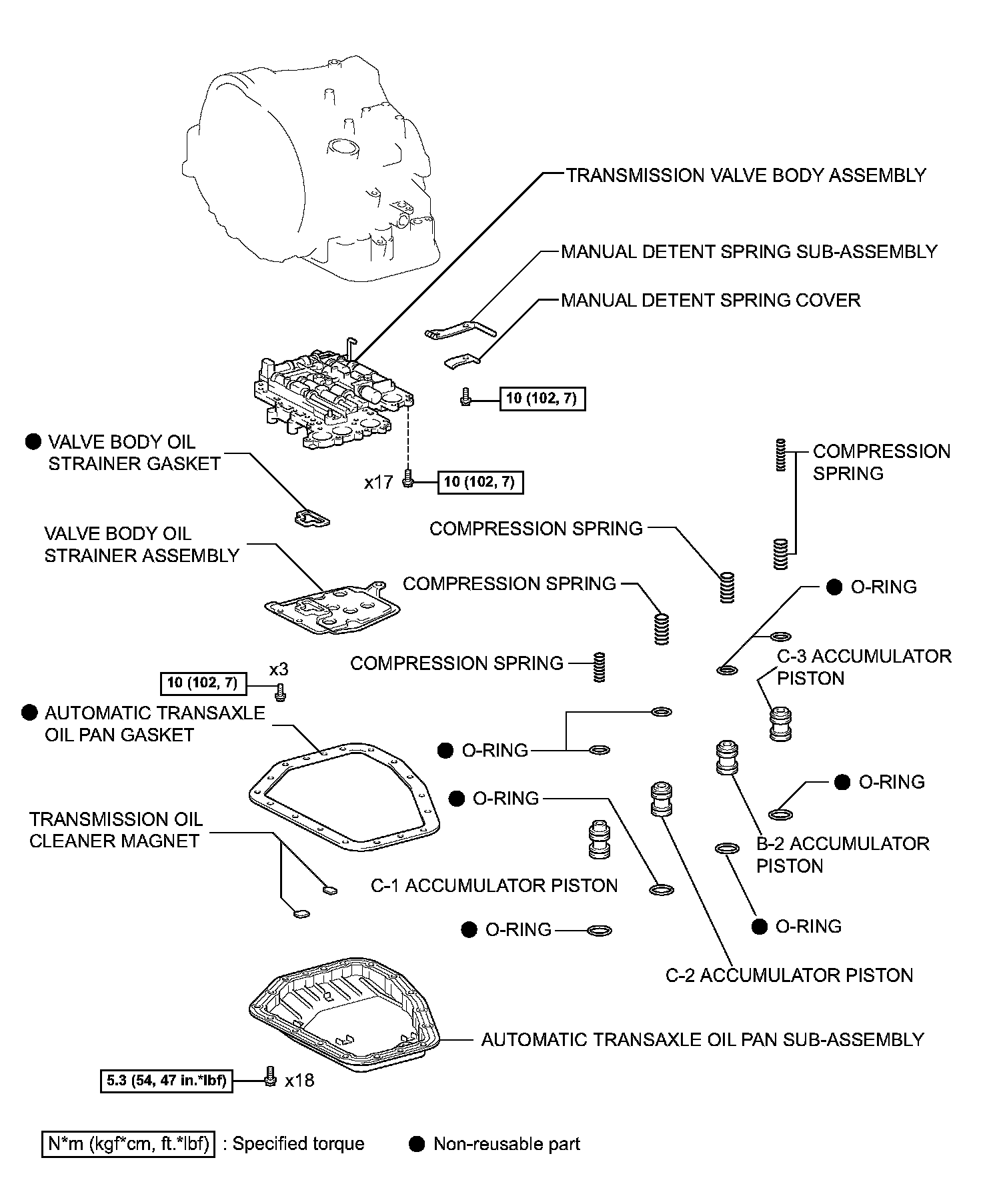

Components (Part 2):



Components (Part 3):



Components (Part 4):



Components (Part 5):



Components (Part 6):
