Antilock Brake (ABS) System

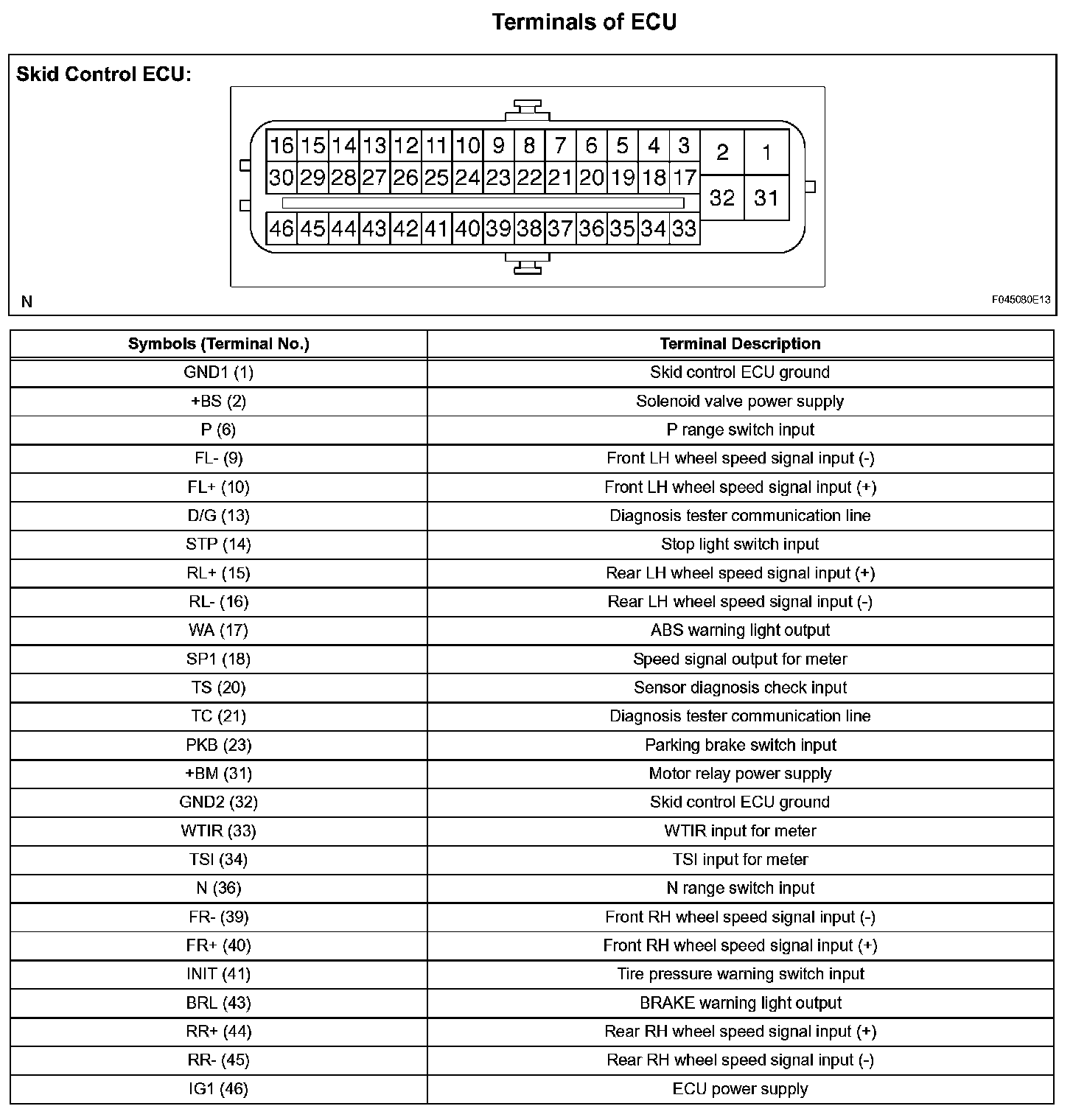

Terminals Of Control Module/Pinouts:

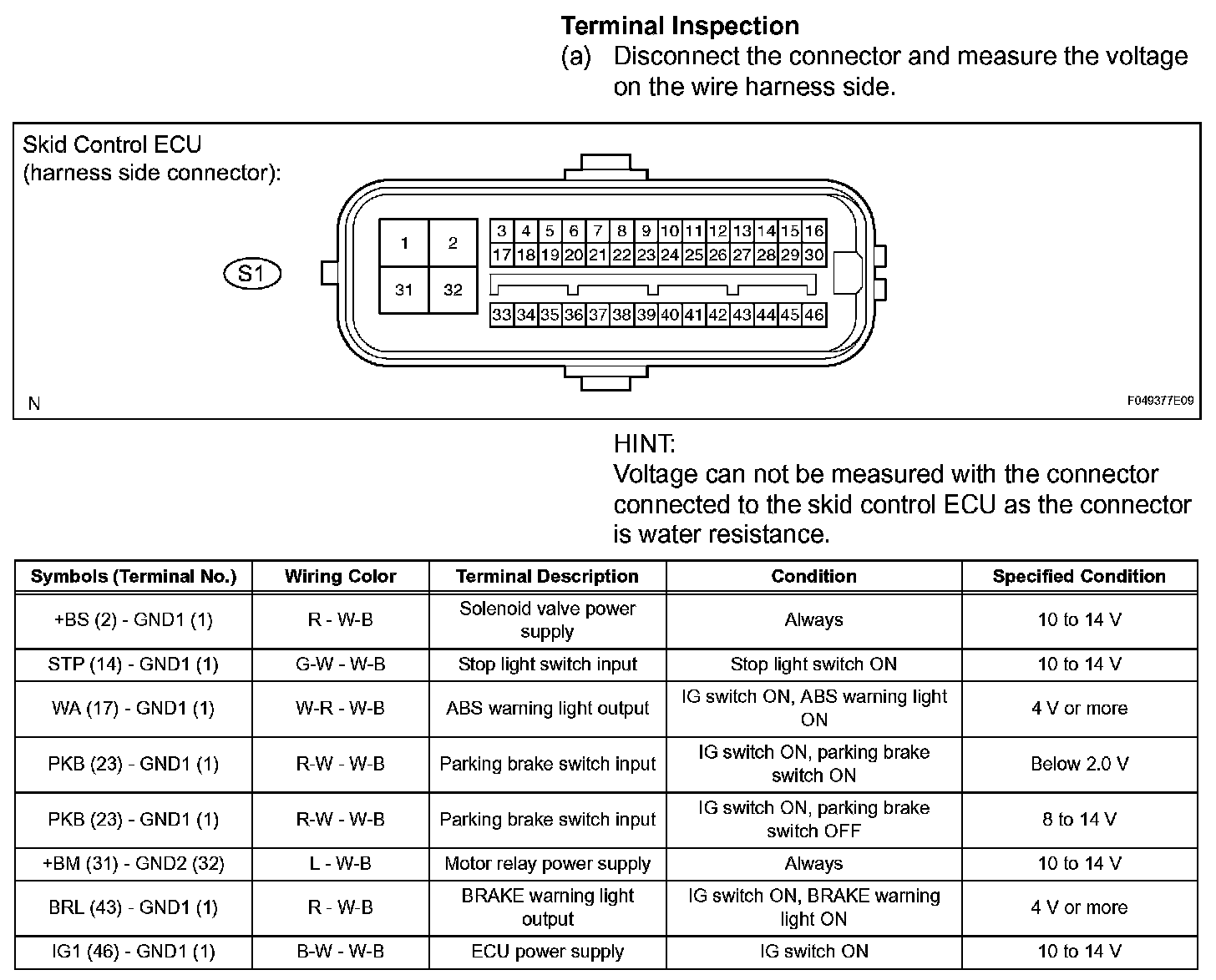

Terminals Of Control Module/Pinouts:
