ID Code Box Power Source Circuit
ID Code Box Power Source CircuitDESCRIPTION
This is the power source circuit of the ID code box.
The ID code box sends immobilizer SET / UNSET signals to the ECM based on the information received from the certification ECU via the LIN communication line.

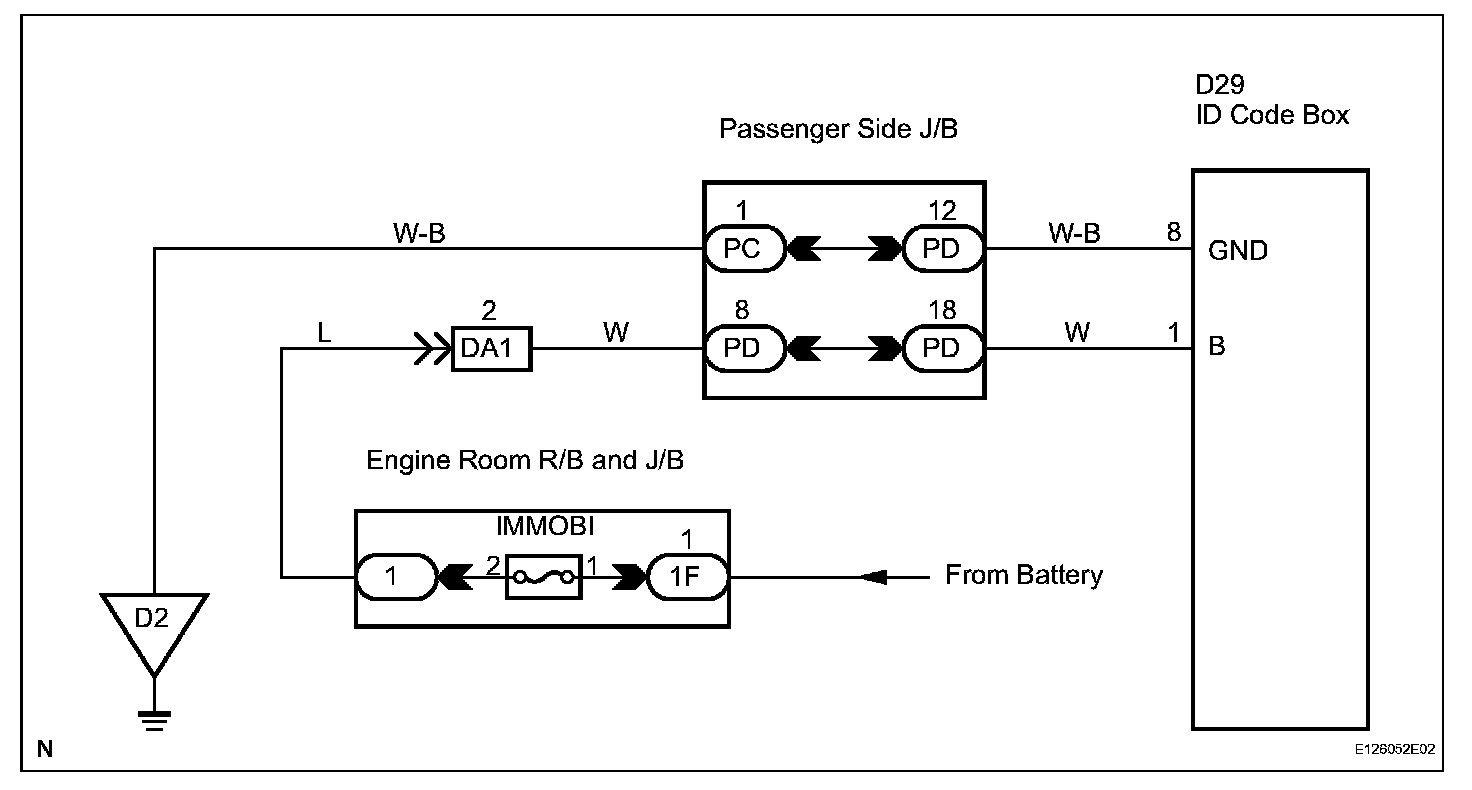

Wiring Diagram:
INSPECTION PROCEDURE

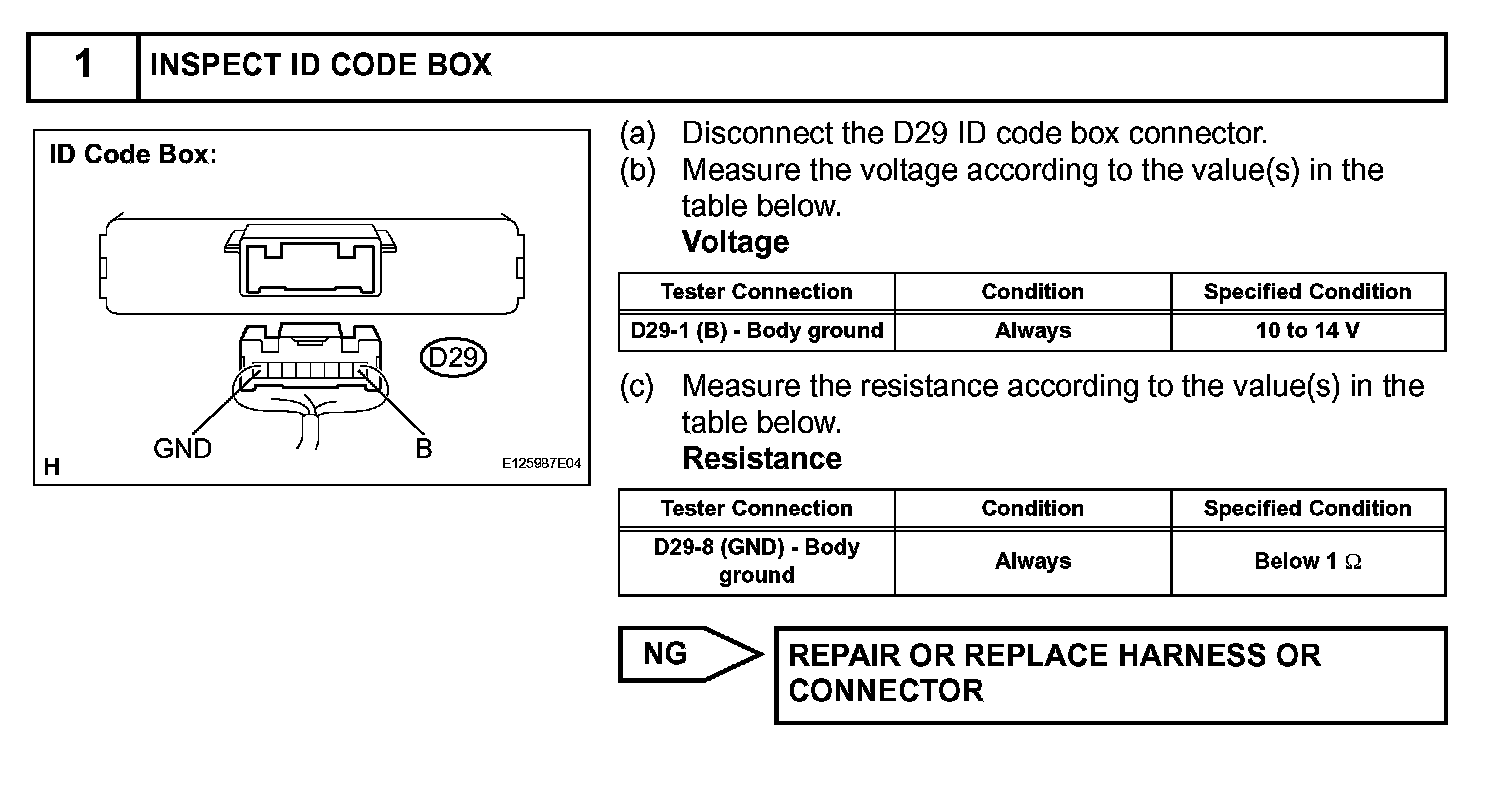

Step 1:

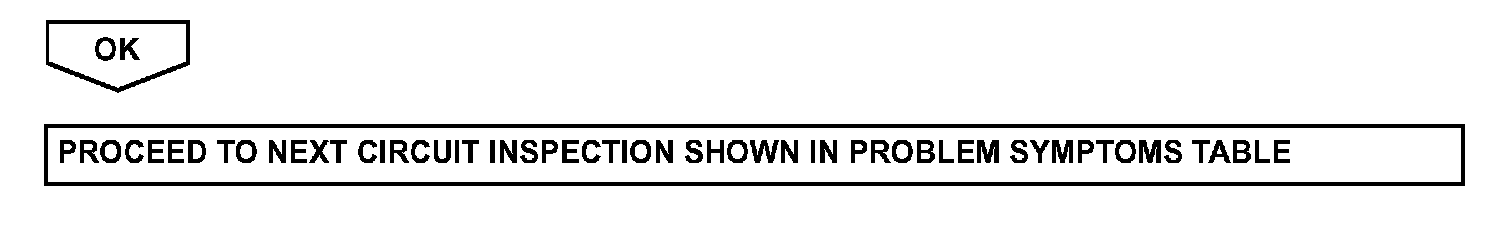

Step 1(Continued):
