Service Data

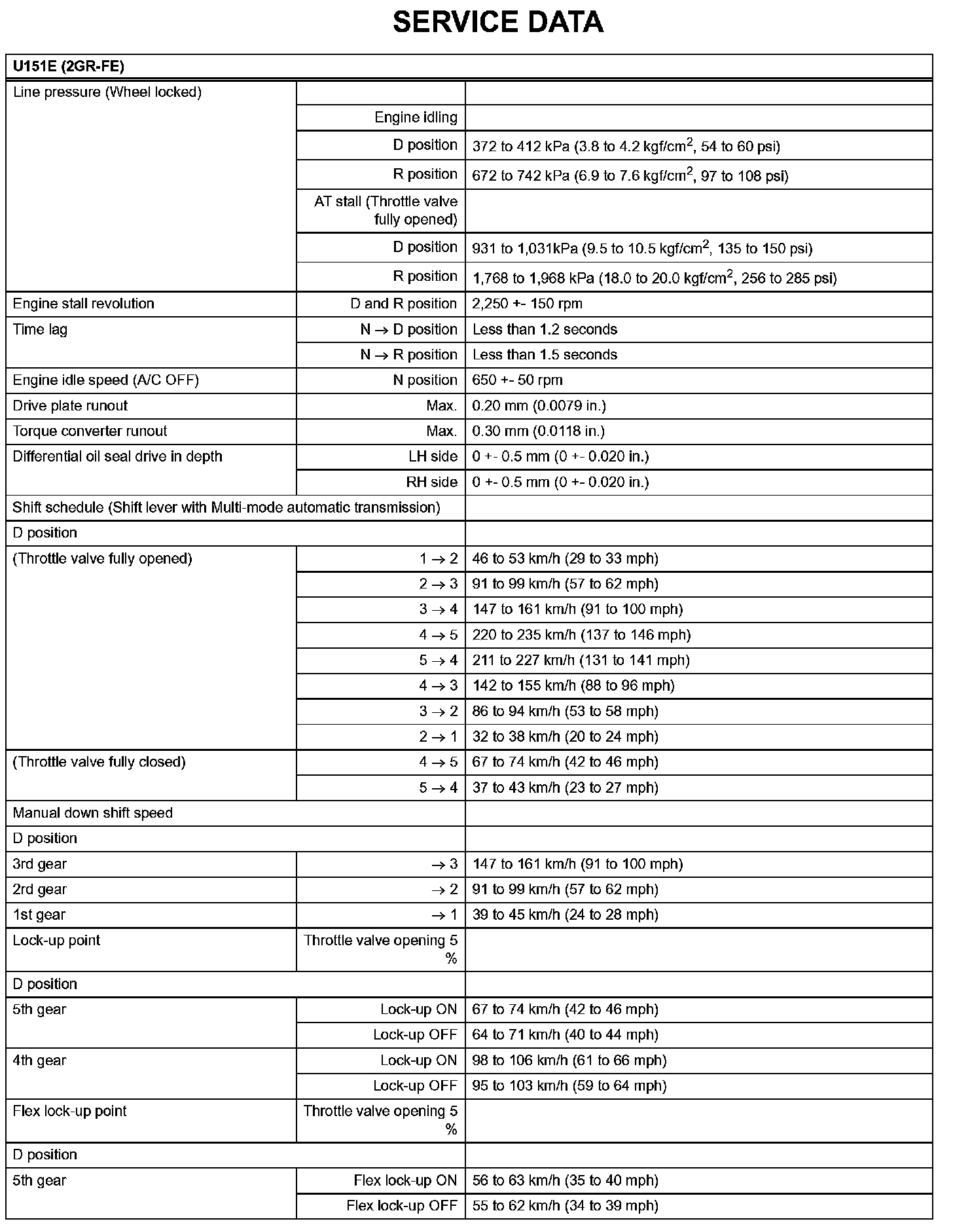

Automatic Transaxle - Service Data (Part 1):

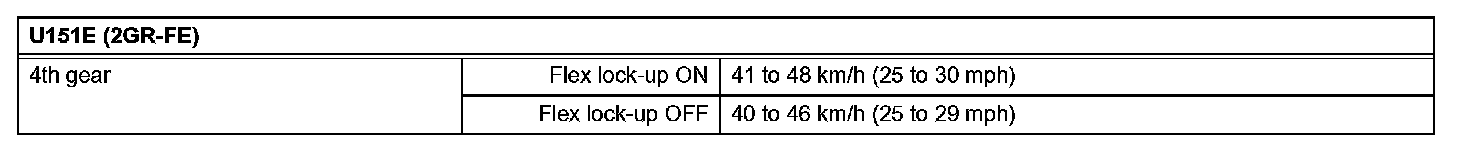

Automatic Transaxle - Service Data (Part 2):
