Oxygen Sensor Relay: Testing and Inspection
INSPECTION1. INSPECT AIR FUEL RATIO SENSOR RELAY

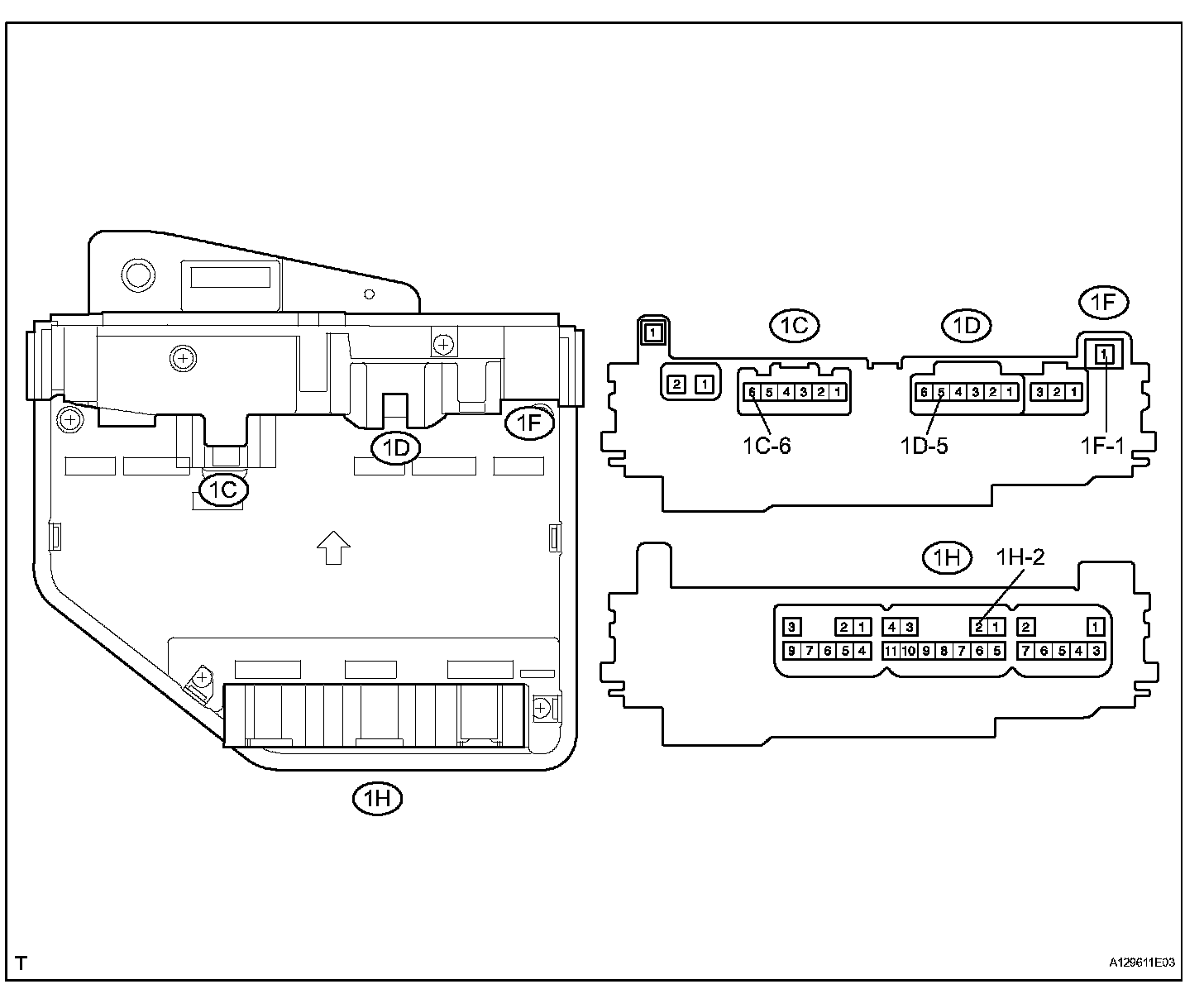

a. Inspect A/F relay

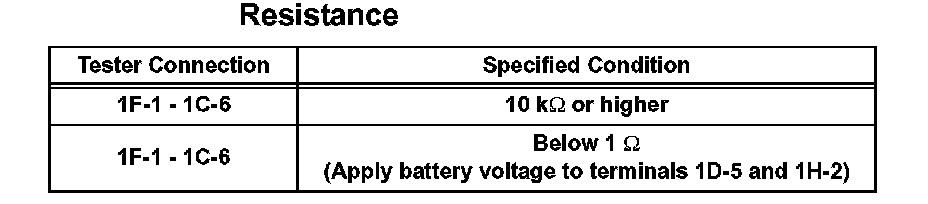

1. Using an ohmmeter, measure the resistance between the terminals.
If the result is not as specified, replace the engine room junction block assembly.
