Circuit Opening Relay

INSPECTION

1. INSPECT CIRCUIT OPENING RELAY







a. Inspect circuit opening relay

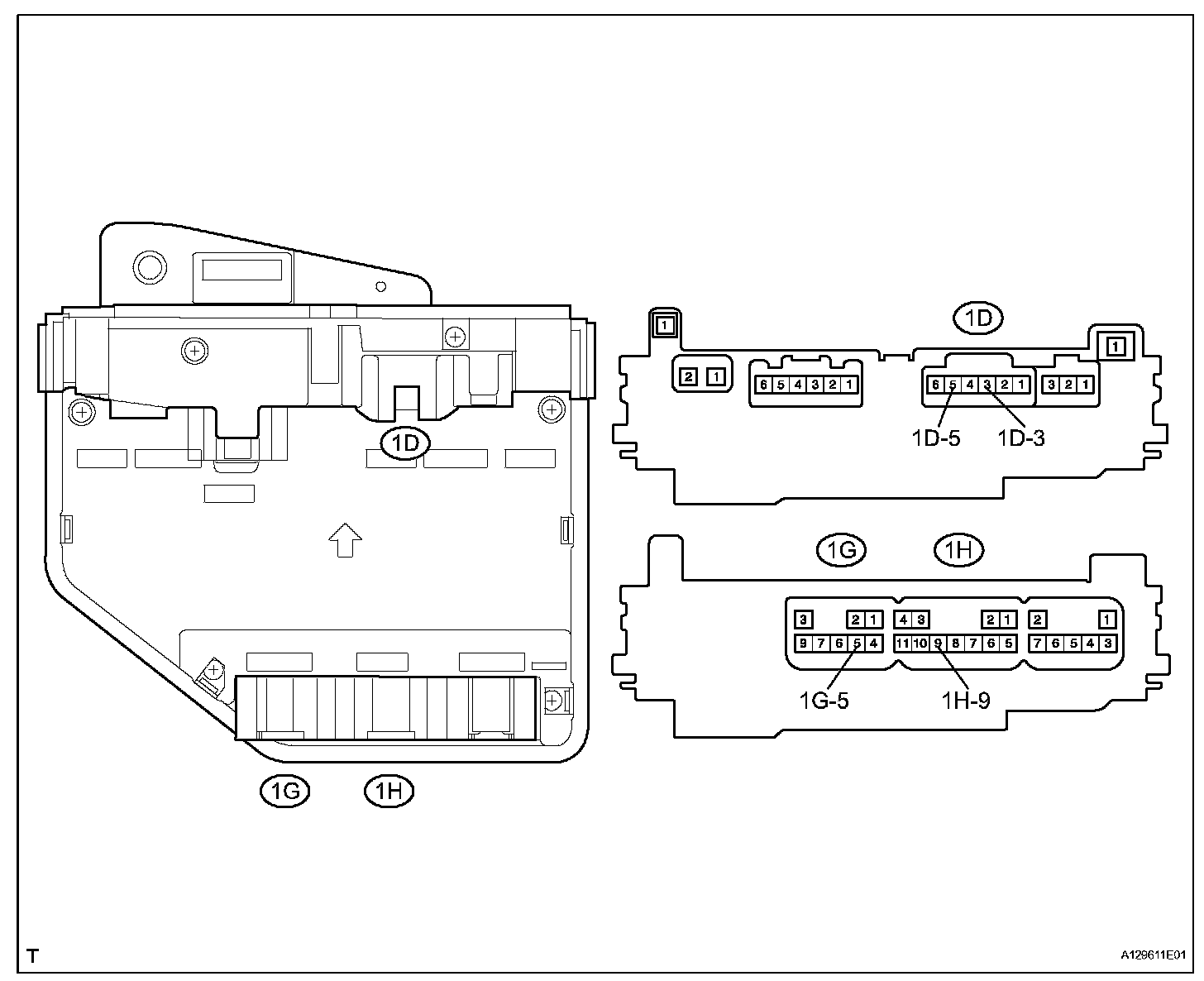

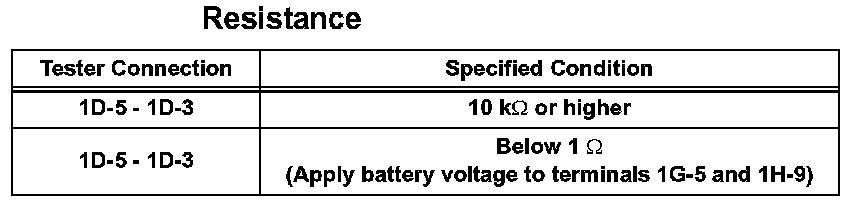

1. Using an ohmmeter, measure the resistance between the terminals.

If the result is not as specified, replace the engine room junction block assembly.
