Information Bus: Locations

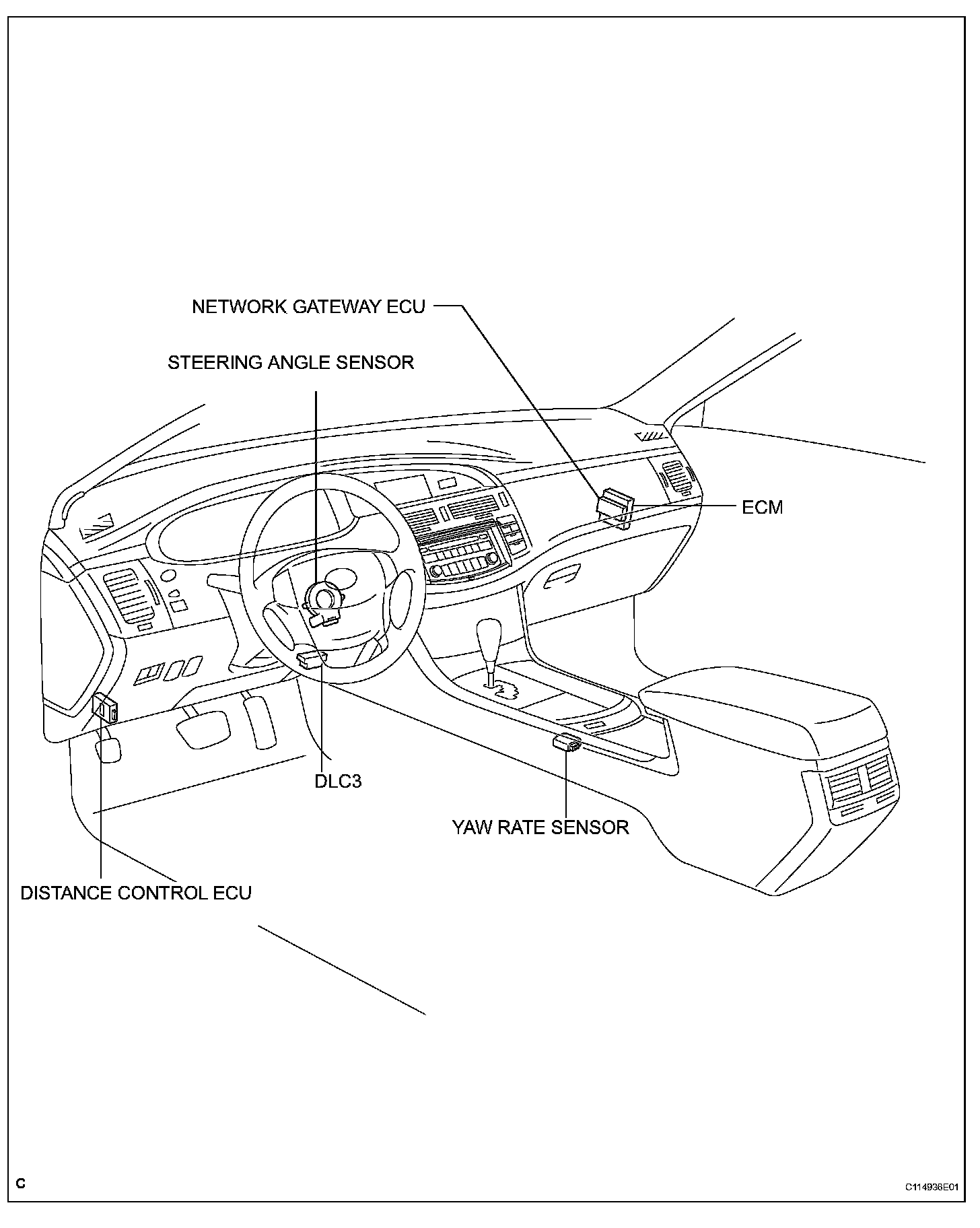

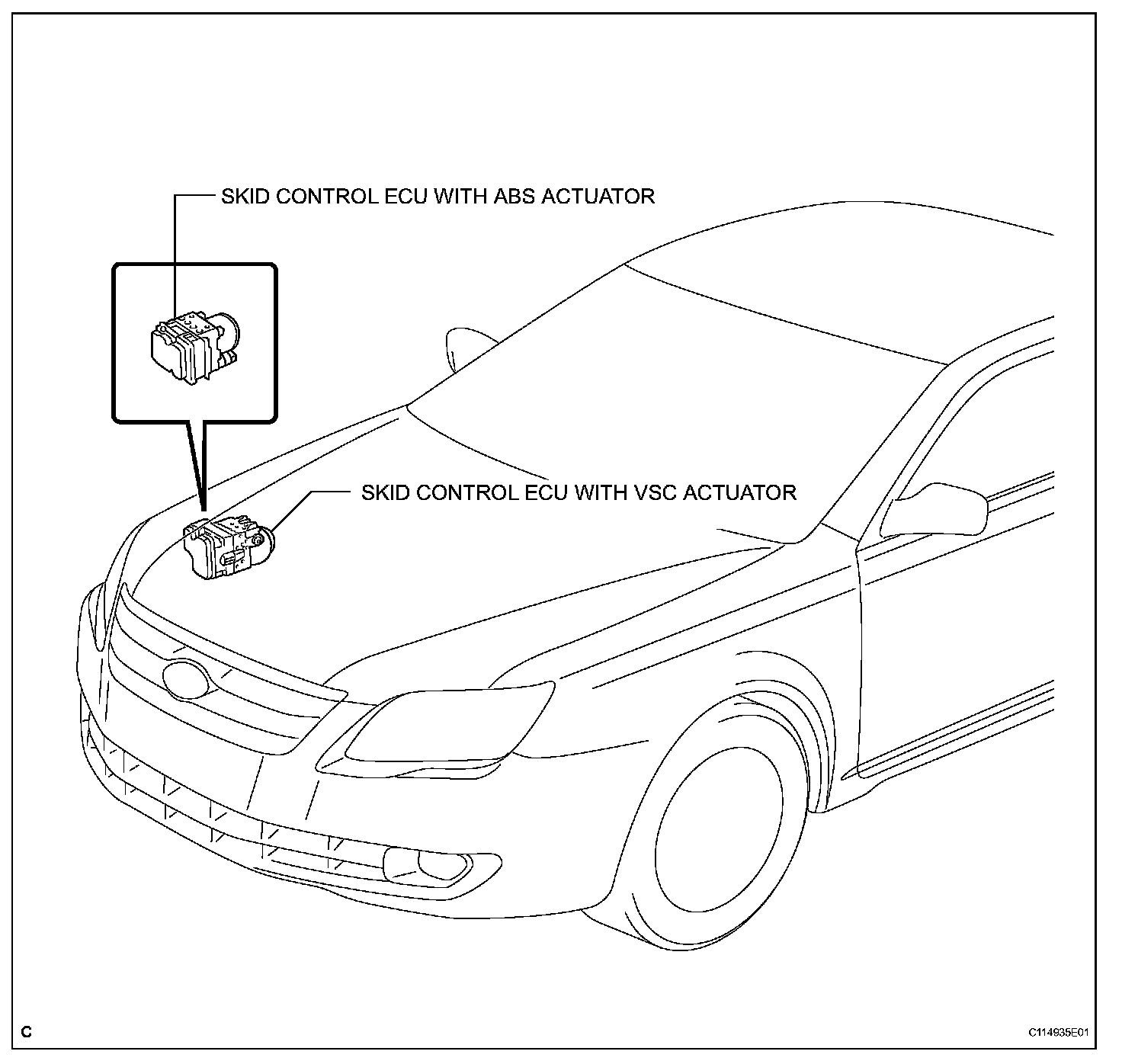

CAN Communication System:

CAN Communication System:

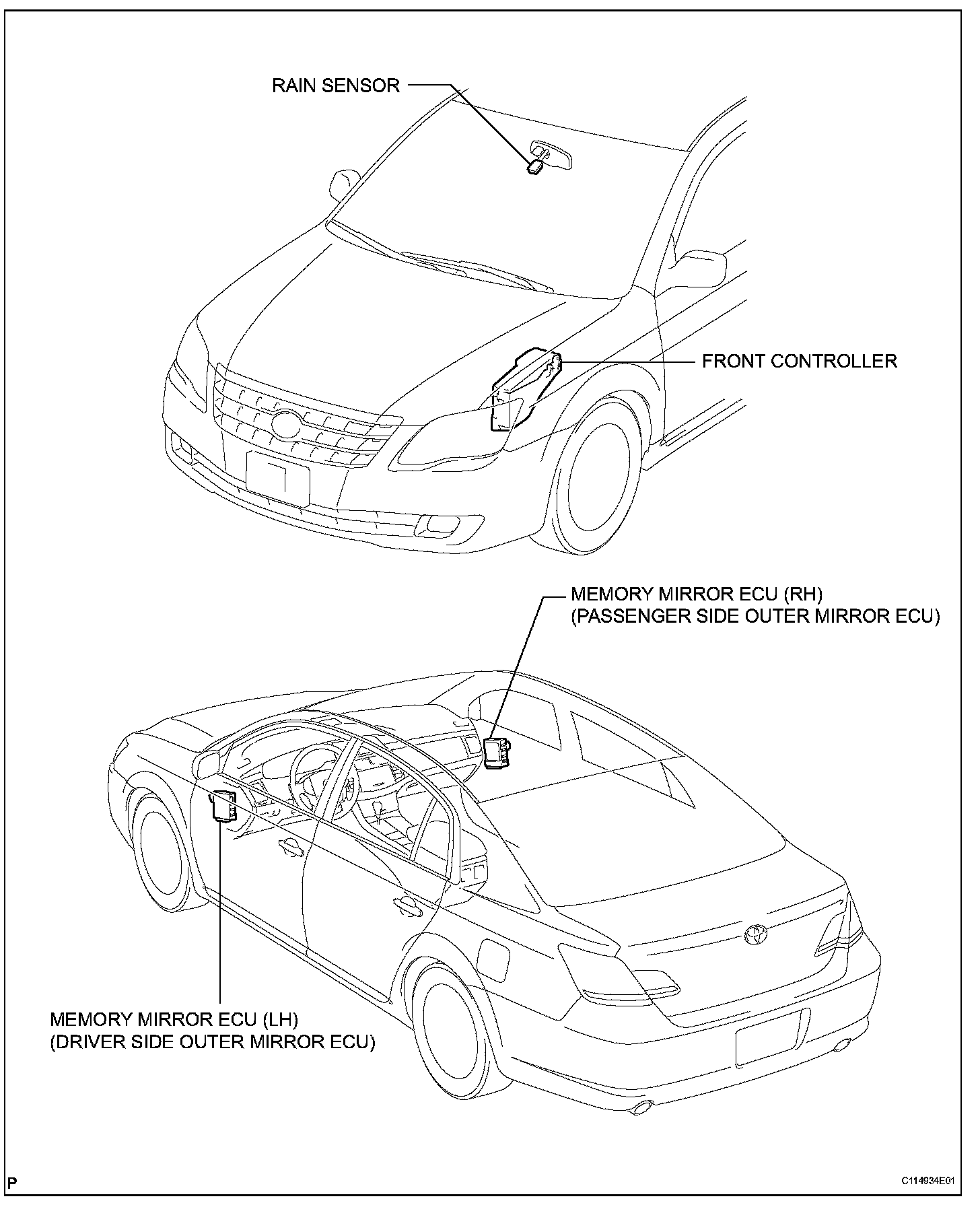

Multiplex Communication System:

Multiplex Communication System:
