Home
>>
Toyota
>>
2007
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

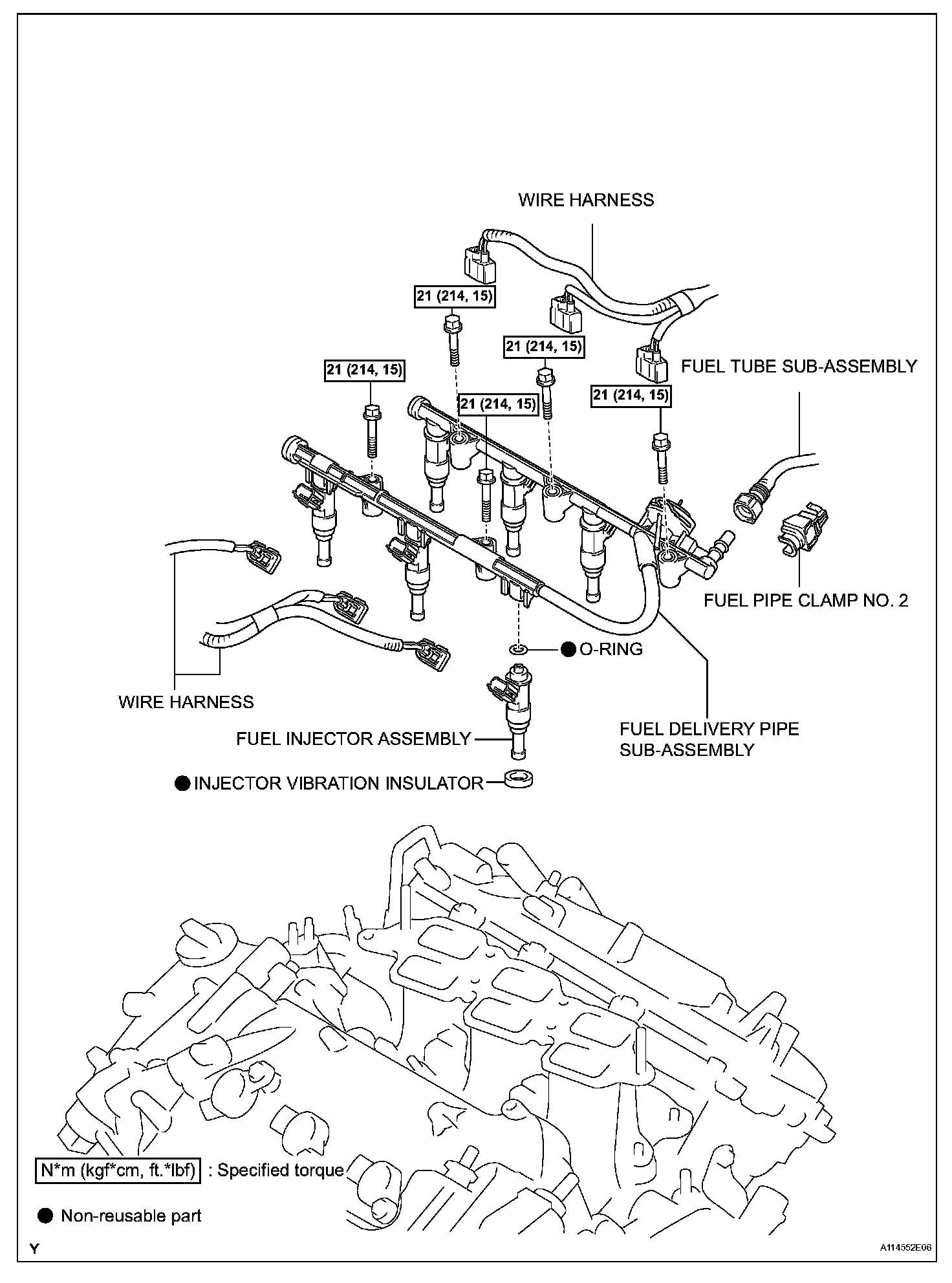

Fuel Injector
Fuel Injector
Fuel Injector:
Fuel Injector:
Fuel Injector:
