Electronic Brake Control Module
>>
Anti-Lock Brake System
Anti-Lock Brake System

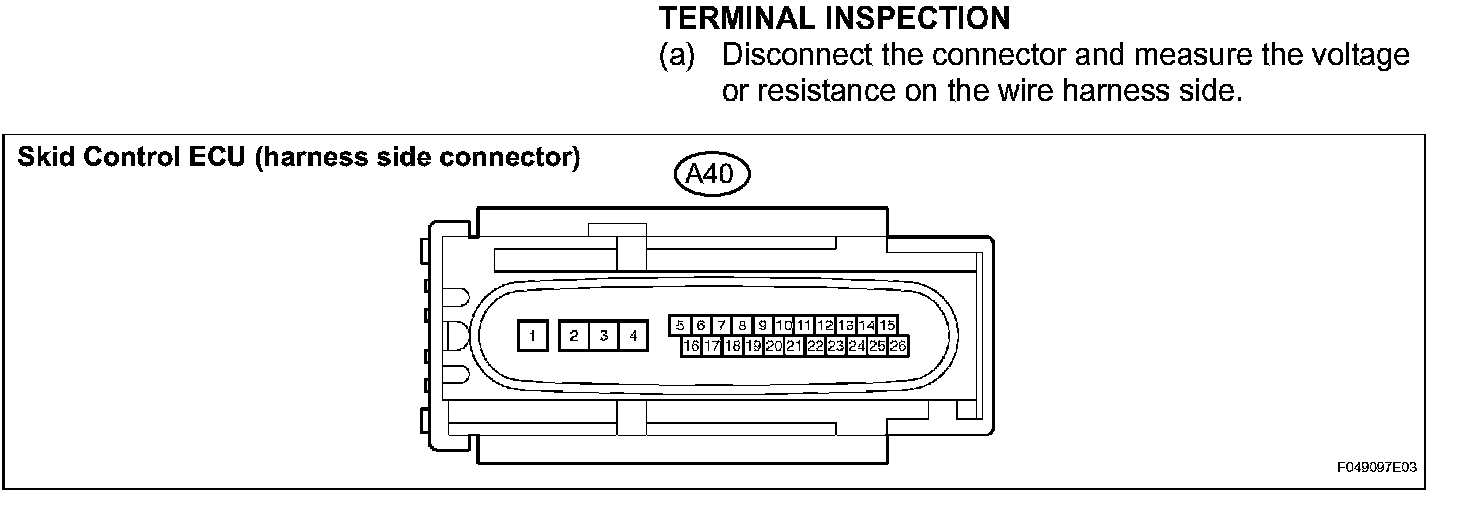

Terminals Of Control Module/Pinouts (Part 1):

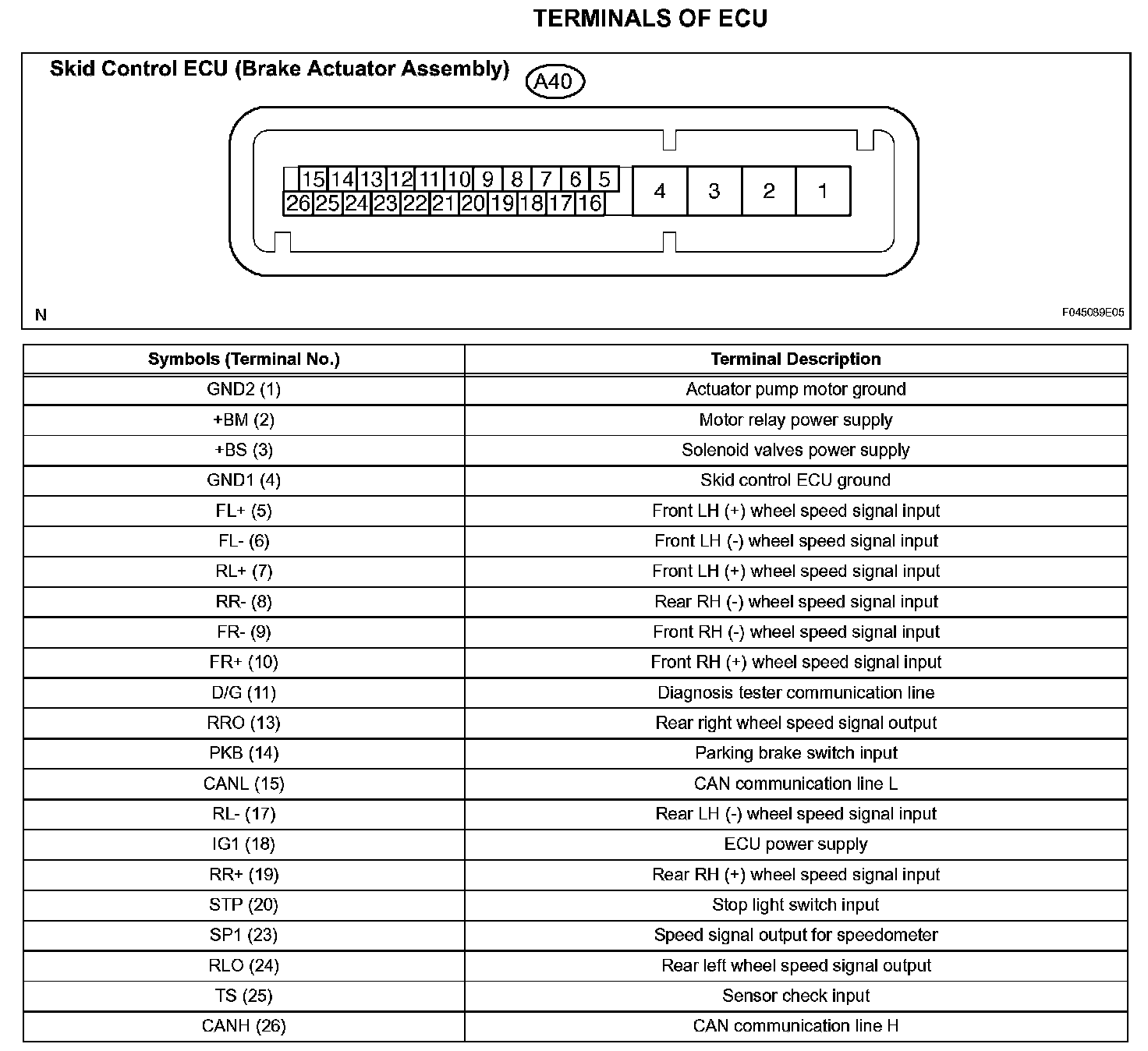

Terminals Of Control Module/Pinouts (Part 2):

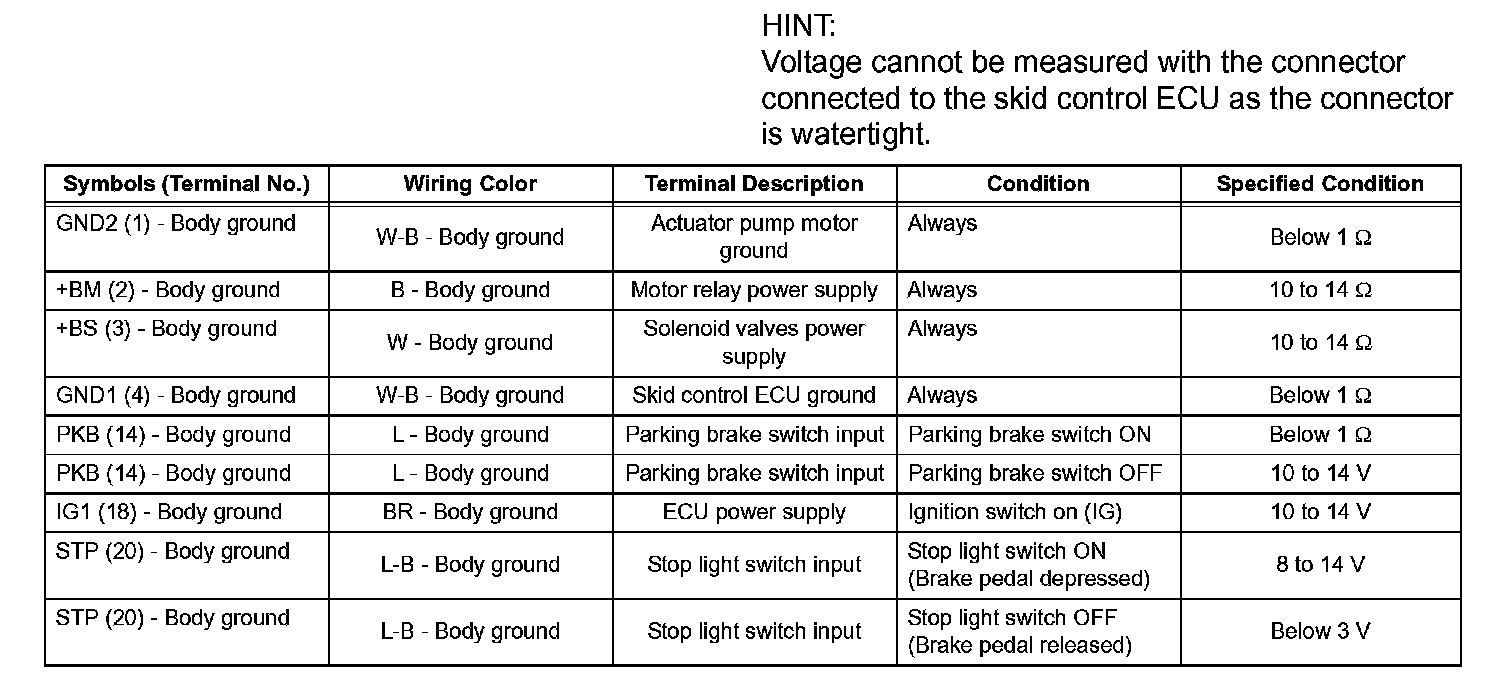

Terminals Of Control Module/Pinouts (Part 3):
