Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (1NZ-FXE)
>>
SFI System
>>
Parts Location
Parts Location

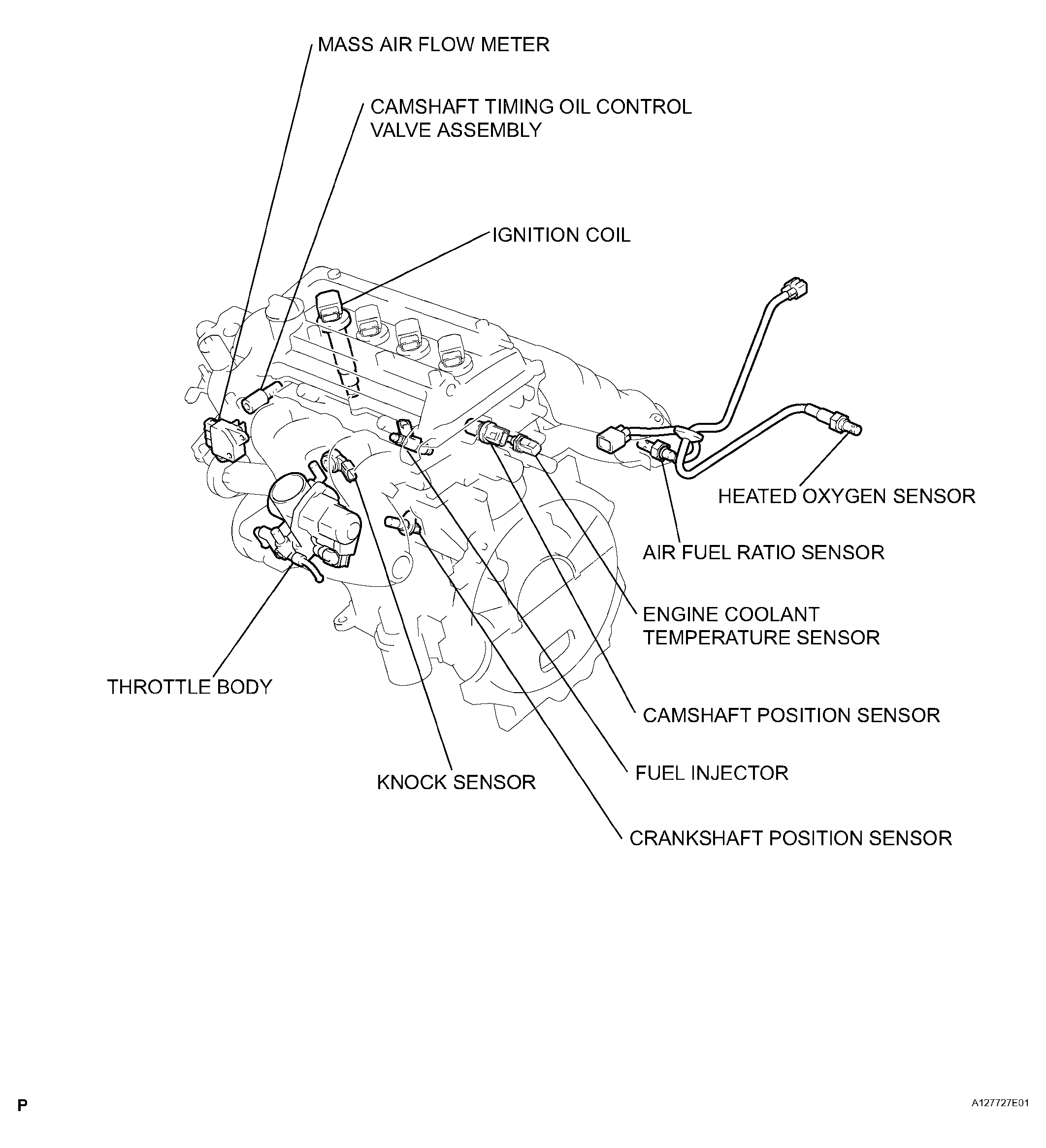

Fig 1: Identifying Engine Control System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

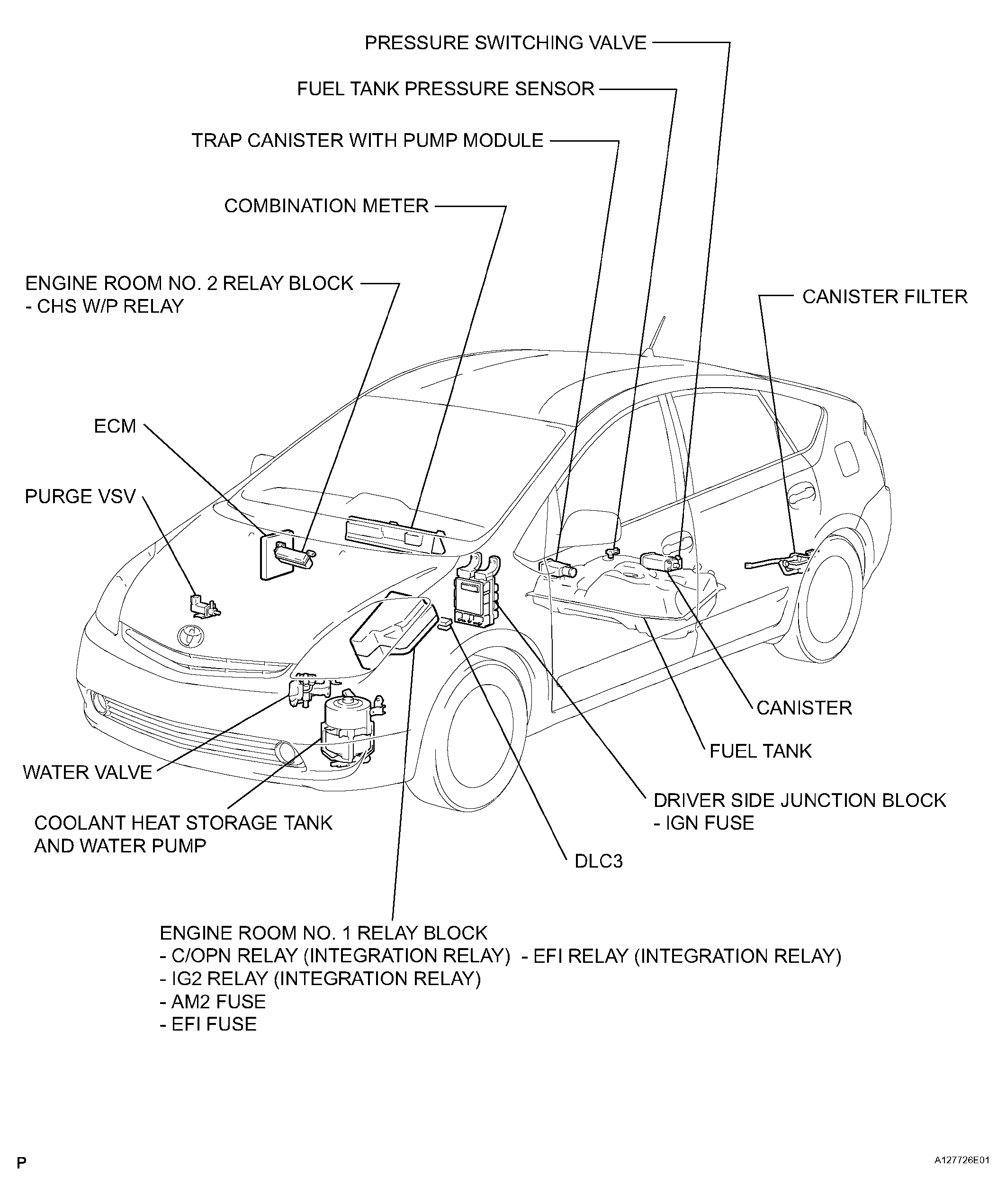

Fig 2: Identifying Engine Control System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
