Slip Indicator Light Circuit: Wiring Diagram

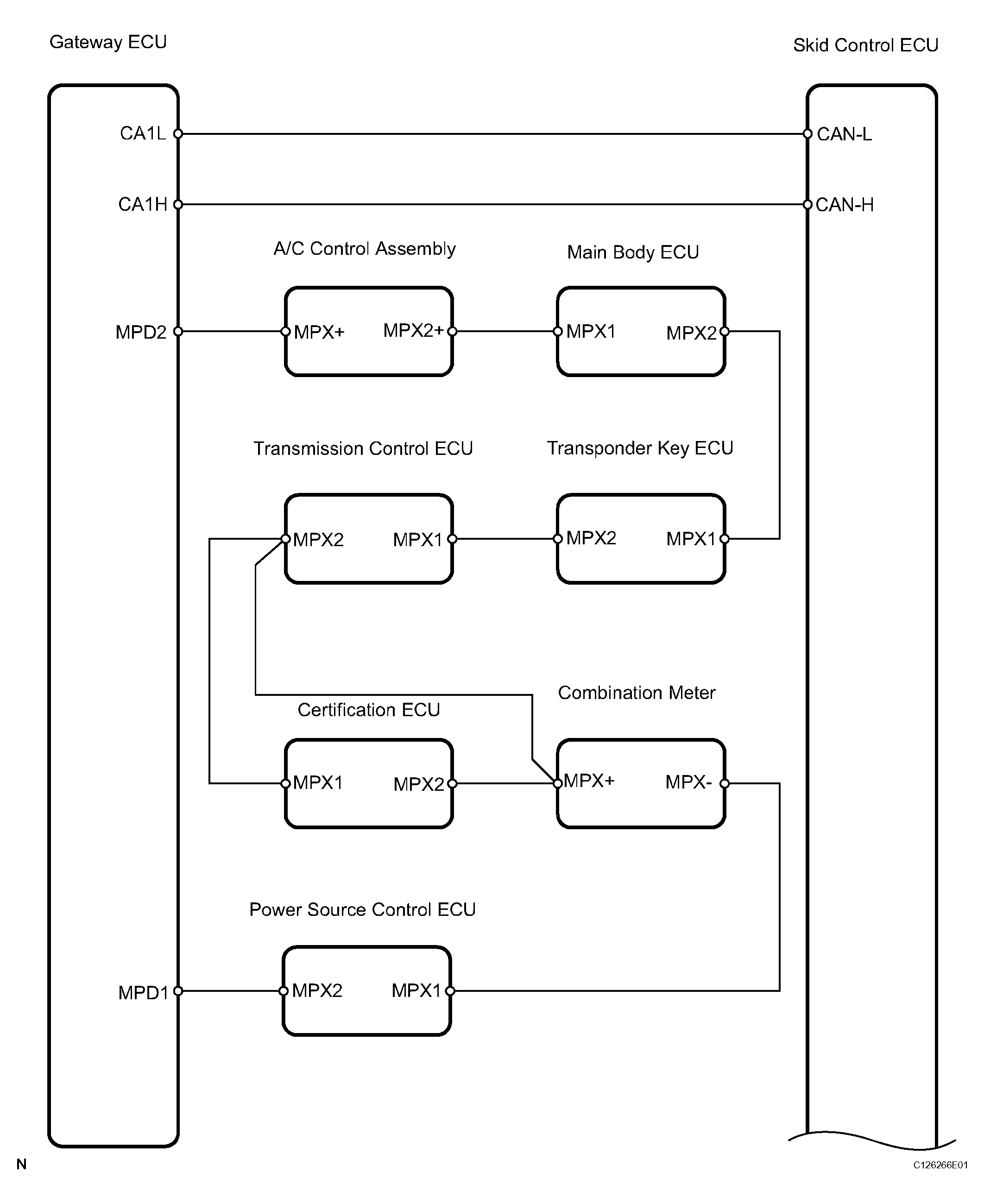

Fig 1: Slip Indicator Light Circuit - Wiring Diagram (1 Of 2)
G04474686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

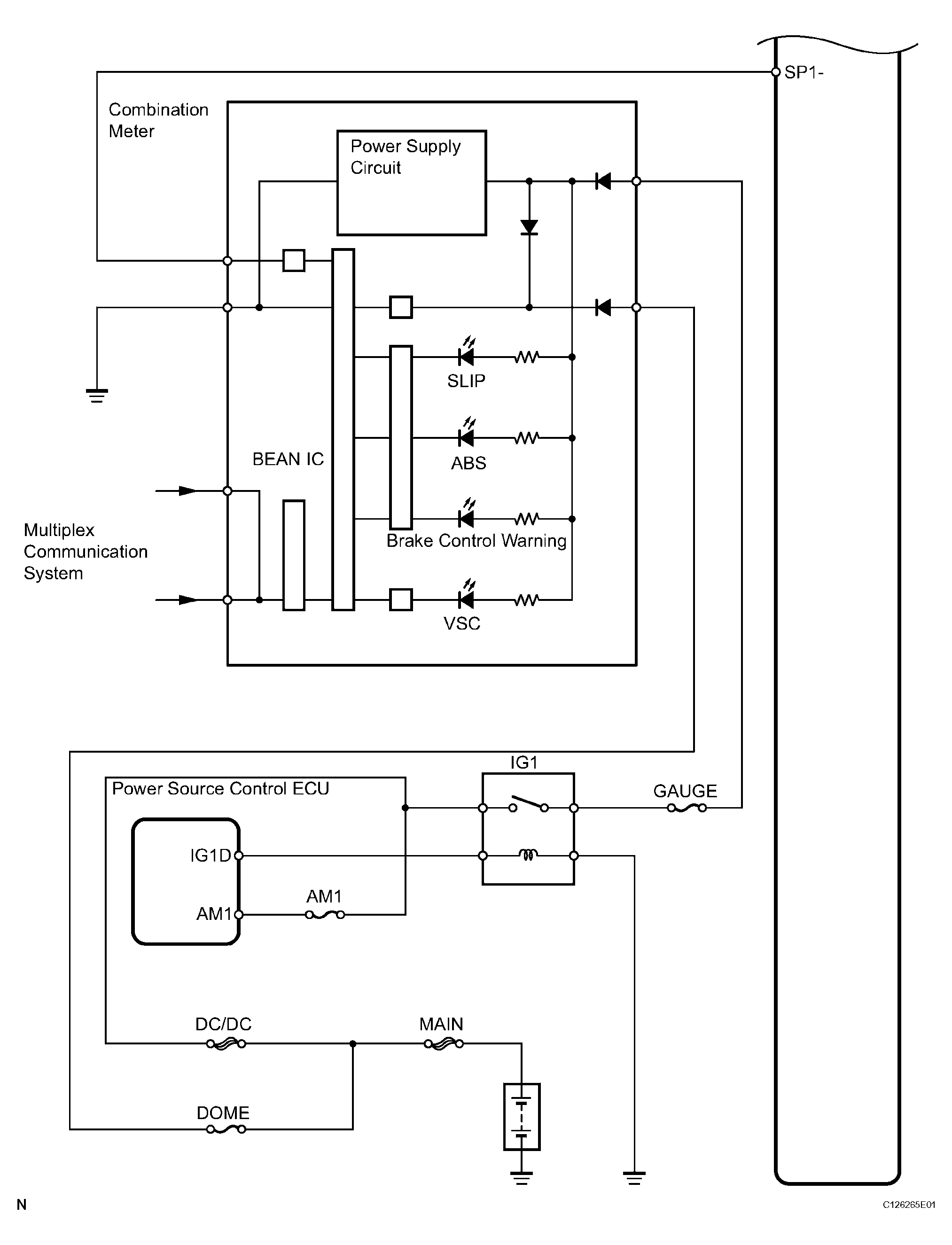

Fig 2: Slip Indicator Light Circuit - Wiring Diagram (2 Of 2)
G04474687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
