Parts Location

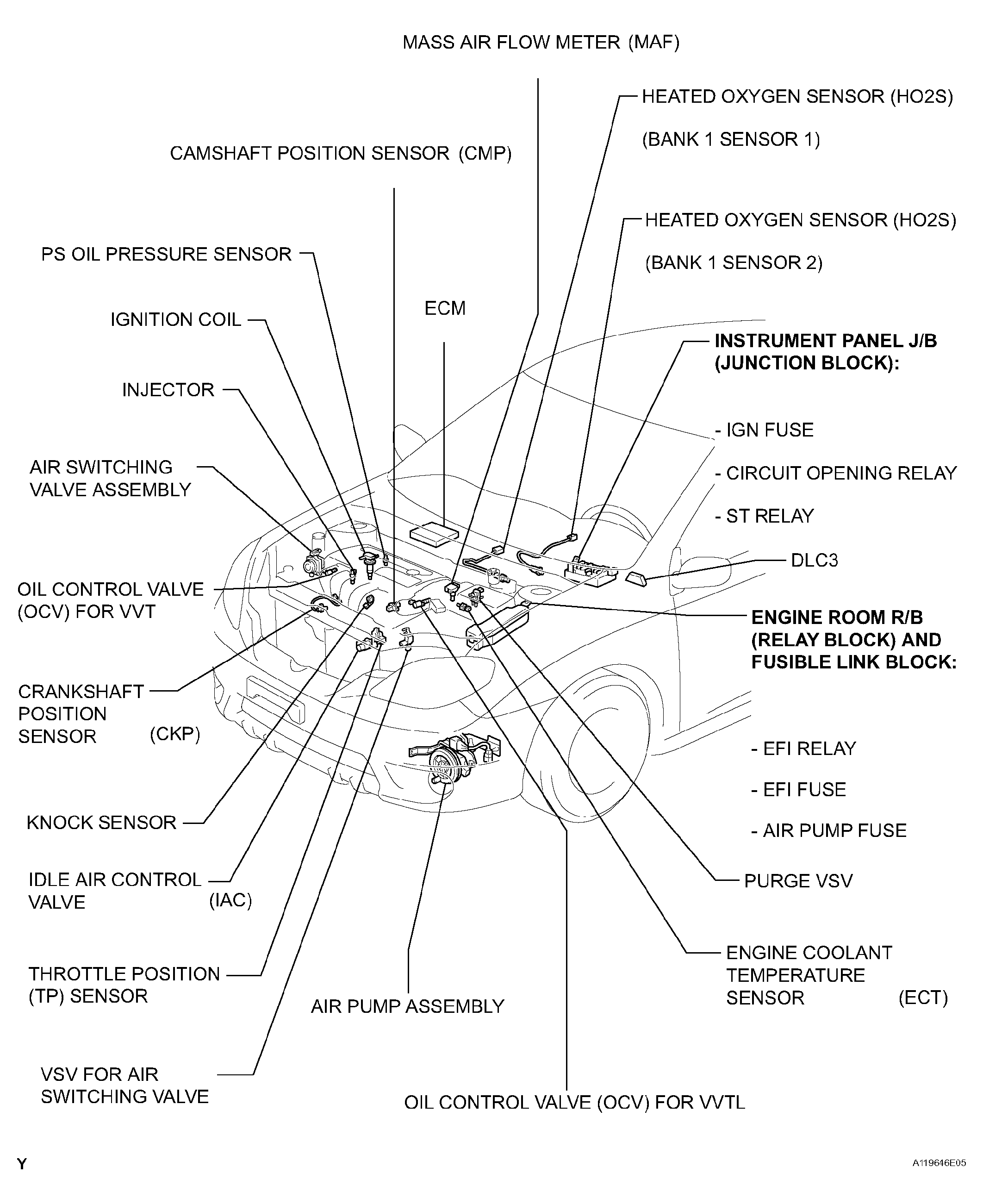

Fig 1: Identifying SFI System Parts Location (1 Of 2)
G04460515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

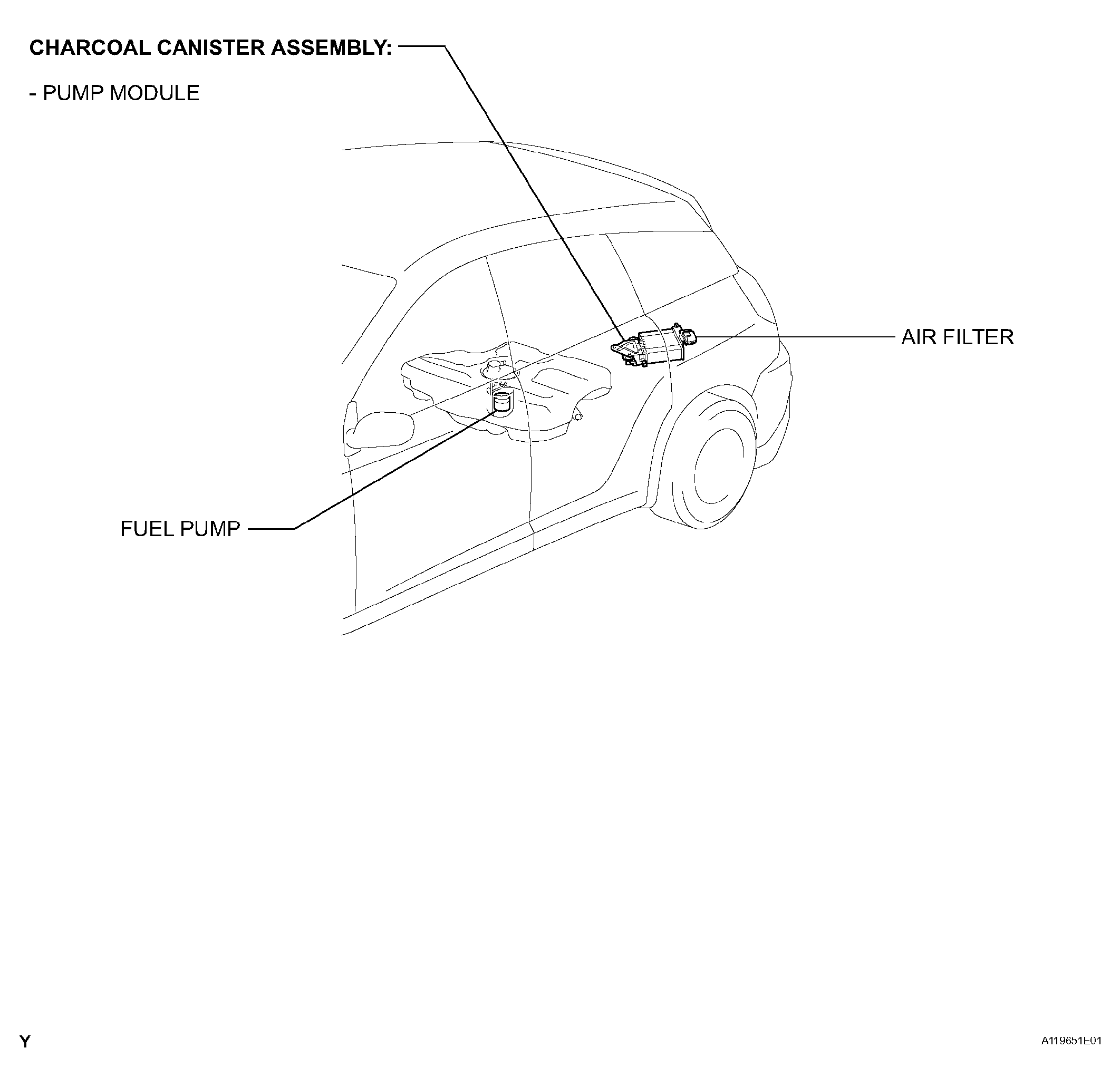

Fig 2: Identifying SFI System Parts Location (2 Of 2)
G04460516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
