Roof Headlining: Components

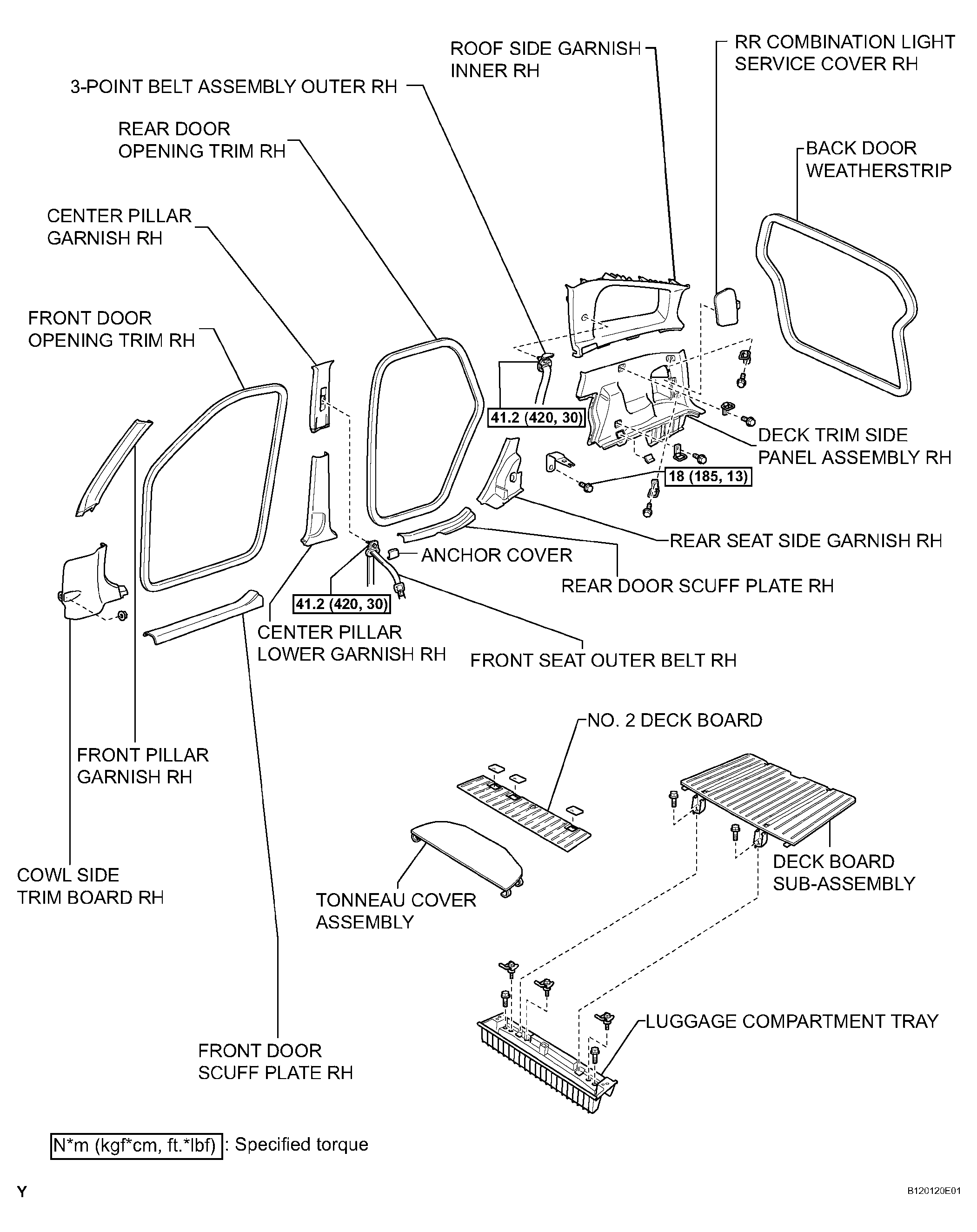

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 2)
G04467042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

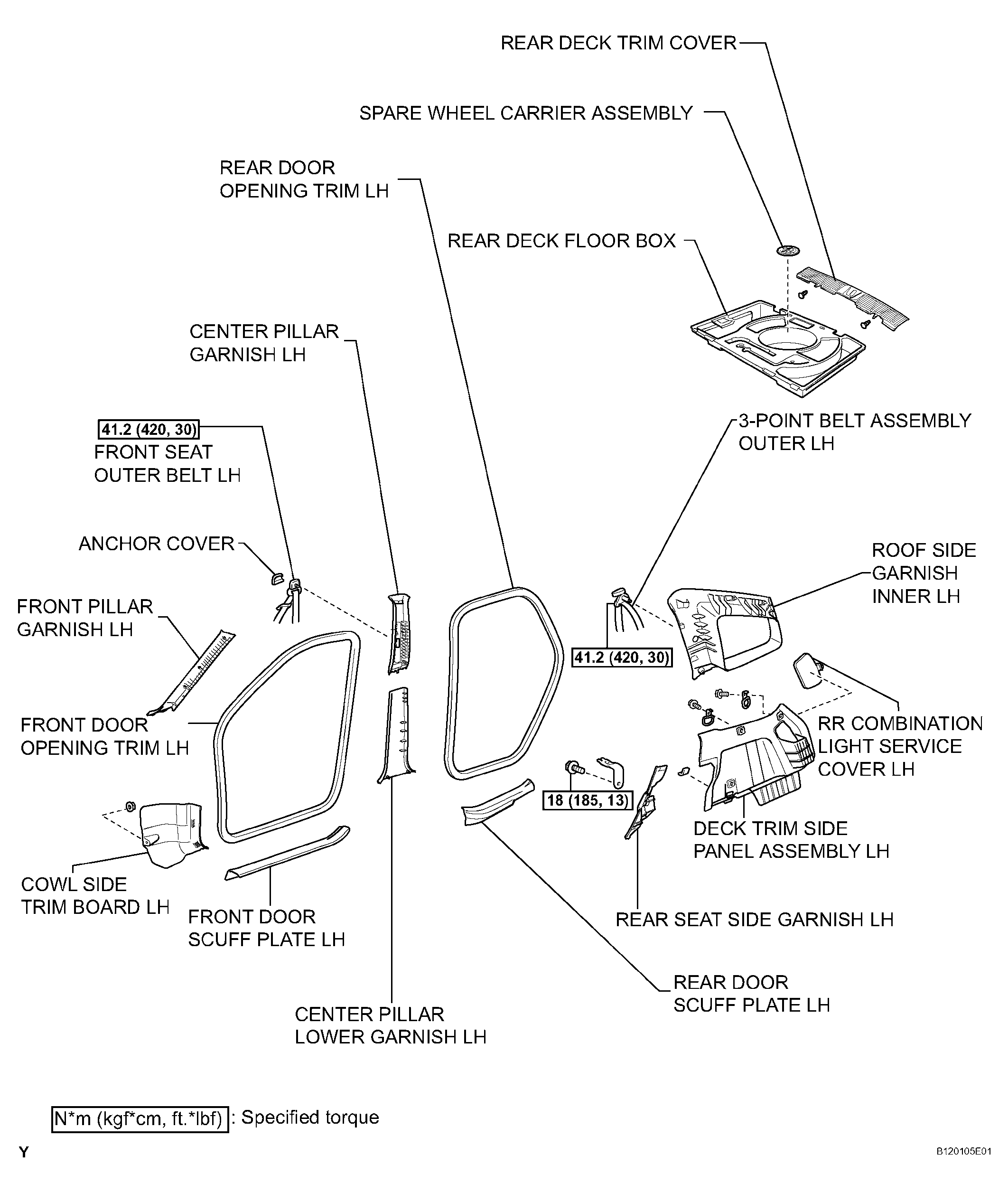

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 2)
G04467043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

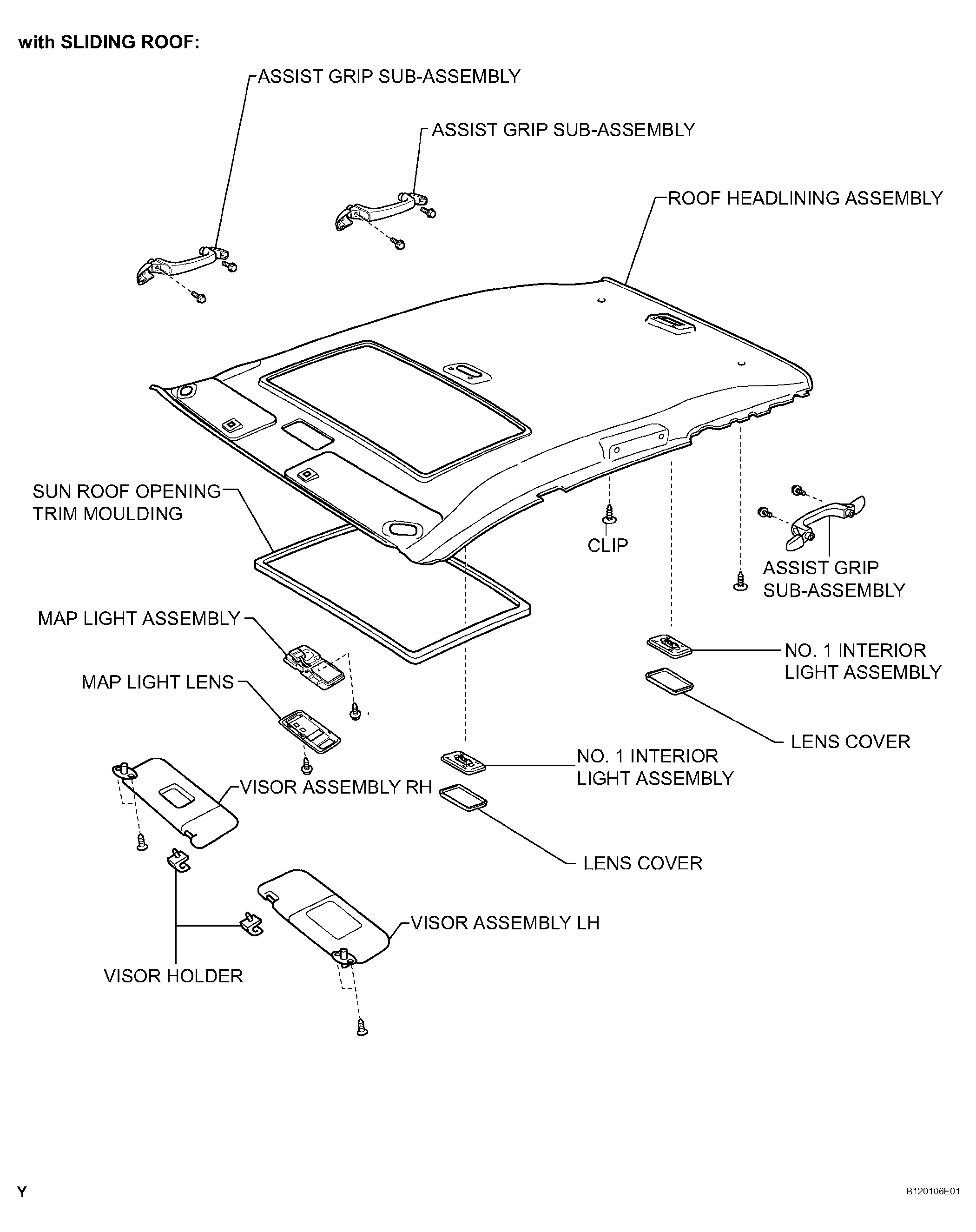

Fig 3: Identifying Roof Headlining Components (1 Of 2)
G04467044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

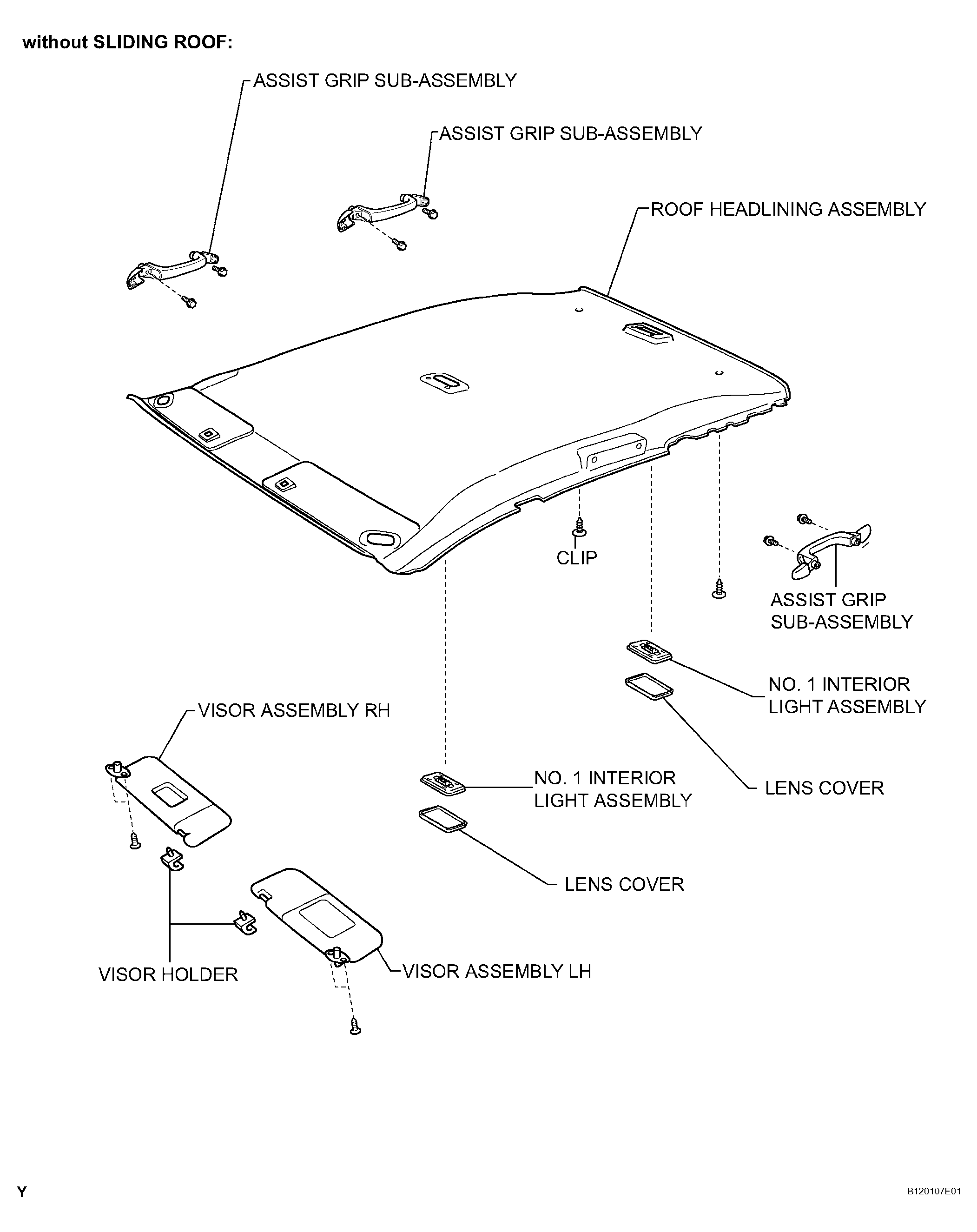

Fig 4: Identifying Roof Headlining Components (2 Of 2)
G04467045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
